balanced performance
About I9 Hubs
Built to Ride
Industry Nine hubs are machined, anodized and assembled entirely in their Asheville, NC manufacturing facility. You can fully service the hubs with standard bearing tools, no proprietary tools required.
Hydra
With 690 points of engagement, increased durability and bearing life, decreased rolling resistance and weight, the Hydra is I9’s premium hub. The Hydra features a 115 tooth drive-ring and a six phase engagement system, that achieves 2nd, 3rd and 4th pawl contact to distribute the load. Learn more about the Hydra by visiting our blog.
I9 Torch
The Torch’s three-pawl dual-phase system features a 60 tooth drive ring. With low rolling resistance and little sound, the Torch is a great hub for your dropbar bike.
1/1
The 1/1 offers 90 points of engagement through its 45 tooth dual phased drive mechanism. Their simple design offers the durable performance expected of Industry Nine hubs at a low price. The 1/1 only comes in black.
I9 1/1
Custom Colors: NO
- Engagement: 8/10
- Durability: 7/10
- Weight: 8/10
I9 Hydra
Custom Colors: Yes – Black, Silver, Turquoise, Pink, Orange, Purple, Red, Mango, Lime, Green, Gold, Blue
- Engagement: 9/10
- Durability: 9/10
- Weight: 8/10
Musical Hubs
Even though they look the same, the different systems of the Hydra and Torch do make different sounds. Haven’t heard enough? You can also listen to the 1/1 in its overview video.
Grease Vs Oil
Dumonde produces a line of resilient and effective oils and greases, as a result, Industry Nine suggests Dumonde as a lubricant for their hubs. The Hydra hub has the option of using either Dumonde’s thicker grease or their lower viscosity oil. Each one affects how the hub behaves and the level of maintenance required. Check out our blog post to learn more.
Servicing Your I9 Hub
We suggest bringing your wheels to a bike shop or sending them to us for maintenance, but if you like to do things yourself you’ll want to watch this freehub servicing video.
Industry Nine Hub Colors
Black
Blue

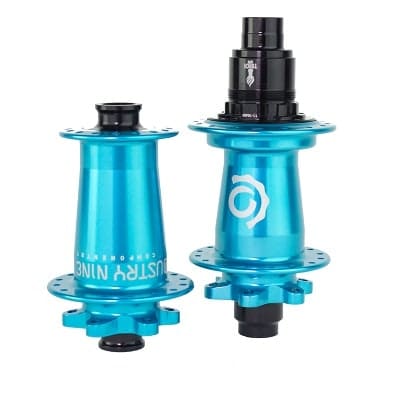

Turquoise
Silver
Purple
Red
Pink
Orange
Gold
Lime Green
Green
1-1
Industry Nine Wheelset Configurations
Weights based on XD 6-Bolt, boost hubs with Sapim D-Lights.
TR32 + Industry Nine
Cross Country/Trail
Aimed at XC racers and marathon riders looking for a versatile “BC rated” wheelset.
Specs
28h, 29″ only, Internal Width (front 27mm) (rear 26mm), Depth 20.5mm
29″ Wheelset Weight
I9 Hydra: 1507g
I9 1/1: 1511g
TR37 + Industry Nine
Enduro/All-Mountain
Made for today’s modern mid-long travel trail bikes, the TR37 is right at home on an enduro course or a backcountry epic.
Specs
32h, 29″ or 27.5″, Internal Width (front 31mm) (rear 30mm), Depth 20.5mm
Wheelset Weight
I9 Hydra: 29″ 1765g / 27.5″ 1715g
I9 1/1: 29″ 1769g / 27.5″ 1719g
TR41 + Industry Nine
E-Bike Specific
The TR41 is designed to handle the extra weight and torque of e-bikes, or as a burly enduro bike option.
Specs
32h, 29″ or 27.5″, Internal Width (front 35mm) (rear 34mm), Depth 25mm
Wheelset Weight
I9 Hydra: 29″ 1840g / 27.5″ 1790g
I9 1/1: 29″ 1844g / 27.5″ 1794g
