CR35

Our 700c CR35 rims are optimized for skinnier road tires, but still versatile enough to be road/gravel ready. Whether you want to chase breakaways at your local road race, or get some miles in on hard-packed dirt, the CR35 is up for the challenge. Features a Lifetime Warranty.

Wheelset Weight Calculators

Specs (front/rear)
Wheel Size: 700c, Tire Size: CR35 28c-45c
Hole Count: 24h/24h or 28h , Depth: 35mm, Width: 29mm
CR35 – Inner Width: 22mm, 410/450g

Build Your Own

At 35 milimeters deep our CR35 (Clincher) rims offer an aerodynamic advantage while still remaining lightweight without harshness. They feature front and rear specific layups with a new 24h rear hole count! The CR35 has a 29mm external width and a 22mm internal width. Find our tire and pressure recommendation chart below for guidelines which will help you determine which model is best for you.

We worked with a number of manufacturers to collectively produce S136 and P20 steel molds. These long lasting molds allows for the highest tolerances with the smallest possible parting lines. The result is a rim that comes out of the mold nearly blemish free. The mold release used flashes off and you’re left with a scratch resistant surface with the outer layer of resin preserved and the carbon fibers remain undisturbed. Our new layup uses several different types and thicknesses of prepreg which has allowed us to shave weight in low stress areas, while reinforcing the high stress areas.

The Details

ERD Chart
NOBL ERD Chart

NOBL Bed To Bed ERDS

What rim model are you using?

TR32 – 29" ERD: 597.5

TR33 – 27.5" ERD: 552, 29" ERD 590

TR35 – 29" ERD: 597

TR36 – 27.5" ERD: 552, 29" ERD: 589

TR37 – 27.5" ERD: 559, 29" ERD: 597

TR38 – 27.5" ERD: 550, 29" ERD: 588

TR41 – 27.5" ERD: 550, 29" ERD: 587

HR35/CR35 – 700c ERD: 570

HR45/CR45 – 700c ERD: 550

For more ERD information refer to our Wheel Building Guide!

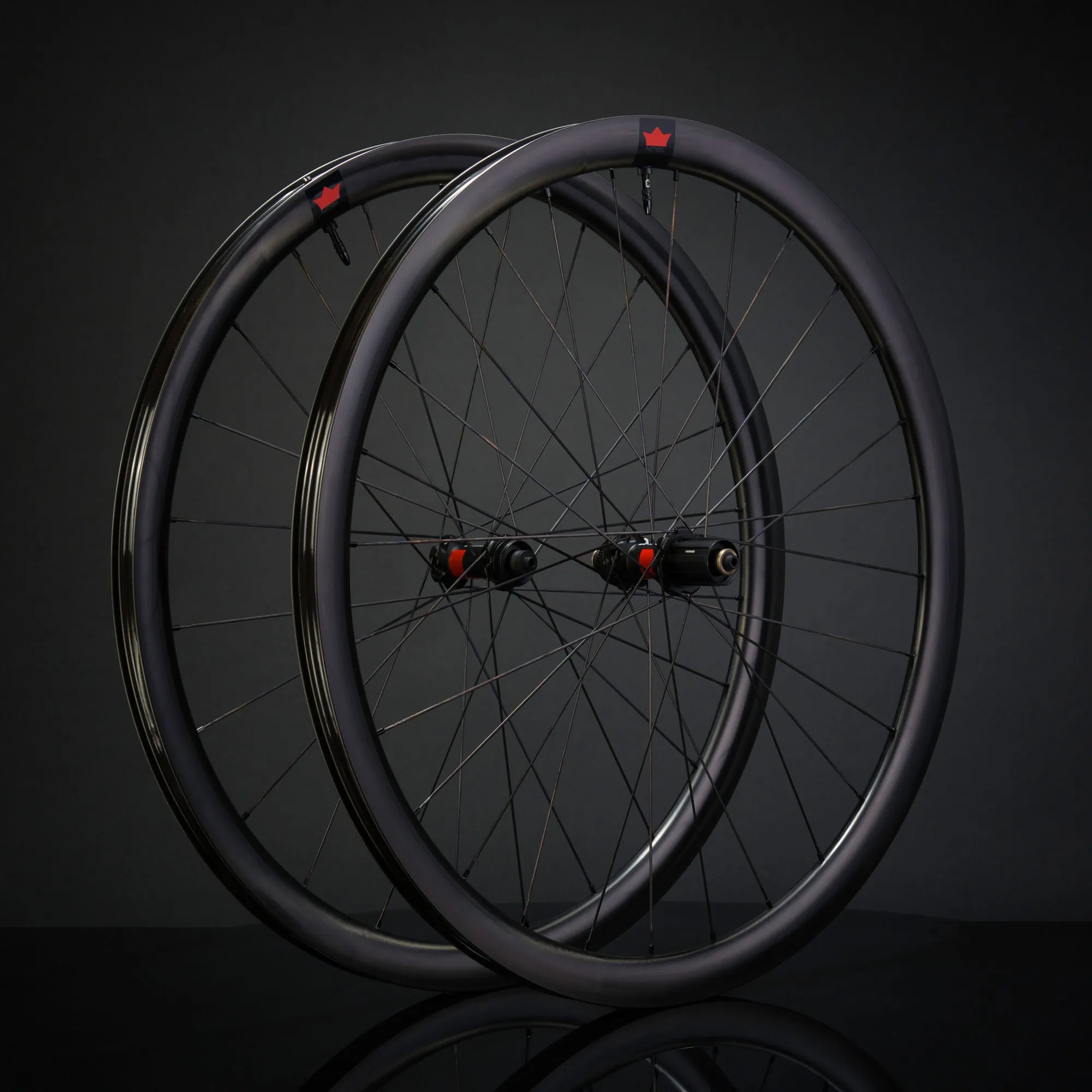

CR35 Clincher

Front – 24h / 410g
Rear– 24h or 28h / 450g

Symmetric – 0mm Offset

The CR35 adds a bead hook into it’s design. The bead hook is essential for higher pressure applications as it prevents blowouts and securely locks the tire to the rim. Those who see themselves running up to 80psi for pavement or hardpacked dirt will benefit from the CR35 over the HR35. The CR35 can still be used in lower pressure applications, but the slightly narrower internal width is better suited for narrower tire sizes.

CR35

The narrower profile and added bead hook of the CR35 allows use in higher pressure applications. The CR leans more towards the ‘skinny tire’ side of the spectrum, but shares the versatility of being gravel/ off road ready.

  • Road
  • Gravel
  • Cyclocross
Tire Size Suggested
Pressure Range (psi)
28c 50-85
30c 45-80
32c 40-70
35c 38-65
38c 33-60
40c 29-55
42c 25-50
45c 24-48

*based on 170lb rider

Featured Upgrade: BERD

Upgrade your next set of CR35 wheels with Berd spokes. Berd spokes are made from an advanced polymer called Ultra High Molecular Weight Polyethylene (UHMWPE). UHMWPE has 12 times the strength-to-weight ratio of steel and floats on water. This means that you can enjoy substantial weight savings, when your wheelset is laced using these spokes. We find the ride quality is slightly less stiff than some conventional spokes, so road riders desiring a high amount of wheel stiffness may prefer steel spokes. Order custom colored Berd spokes by downloading our custom Berd form and emailing it to ride@noblwheels.com the form is available in 24h, 28h.

*We modify all J-bend hub shells for Berd, however we do not modify straight pull. For modified hub shells, the hub shell warranty is void

To learn more about Berd visit our FAQ.

Lifetime Warranty

If you manage to break your rims while riding your bike, we will send you a replacement rim at no charge and you will just have to pay the shipping cost. If you damage your rims because of non-riding circumstances like melting your rims because it was sitting too close to your vehicle’s exhaust on a road trip, we’ll give you 50% off a replacement. This coverage lasts indefinitely to the original purchaser.

For more details or to submit a claim, check out our warranty page HERE.

HR35 / CR35 REVIEWS

My trip was amazing to start and was made incredible with the addition of my NOBL wheels. Light, responsive and most noticeably laterally stiff and precise on the descents-I couldn’t be more happy about how they performed over 350 miles and 33k of climbing through Umbrian and Tuscan farm roads and Strada Bianche.”



Michael F

Technical Support

Your wheelset is a high precision component that requires regular upkeep and maintenance to perform at its absolute best. Fortunately we’ve compiled resources that will be sure to help you with this process.
