Hub Weights

Scaled Weights of Hubs

Below we’ve scaled and recorded the weights of several different hub brands, as weights listed online aren’t always accurate. For quick reference to a certain brand click one of these links: Industry Nine, DT Swiss, Chris King, Onyx, Hope, OneUp Components , SON Dynamo, Project 321, White Industries, Shimano XTR, Profile. *Not all hubs listed are available on our site, for custom orders please contact us.

NOBL Wheels

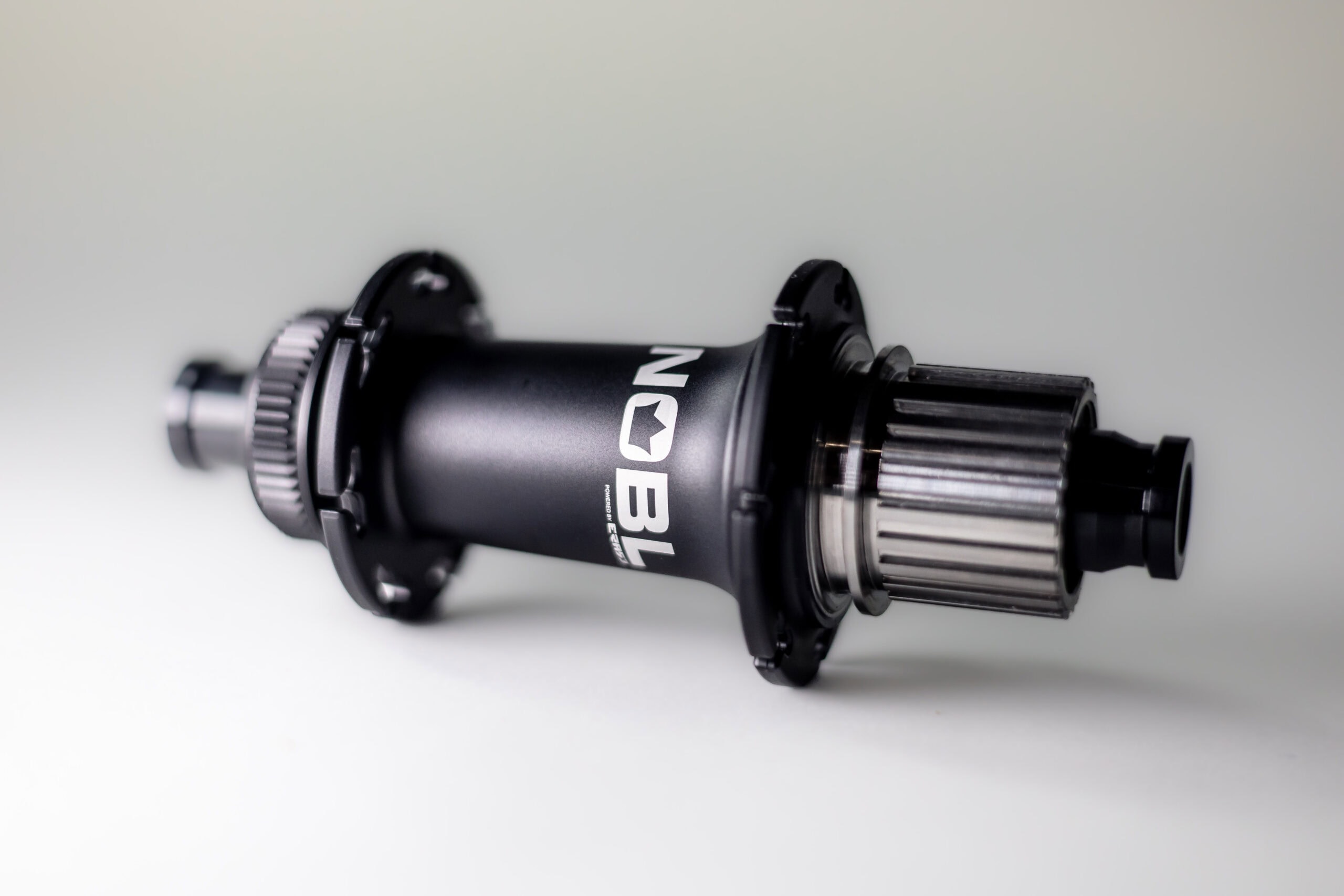

Ethos Ti70 Hubs

Our Ethos Series carbon wheelsets set a new industry benchmark for performance. But when it came to hubs, specifically a lightweight Hook Flange hub, nothing on the market met the standard we needed.

So we built one. Full Hub sets start at 332g.

Learn More

NOBL Ethos Ti70 Centerlock MTB boost 110x15mm Front Actual Hub Weight = 115g

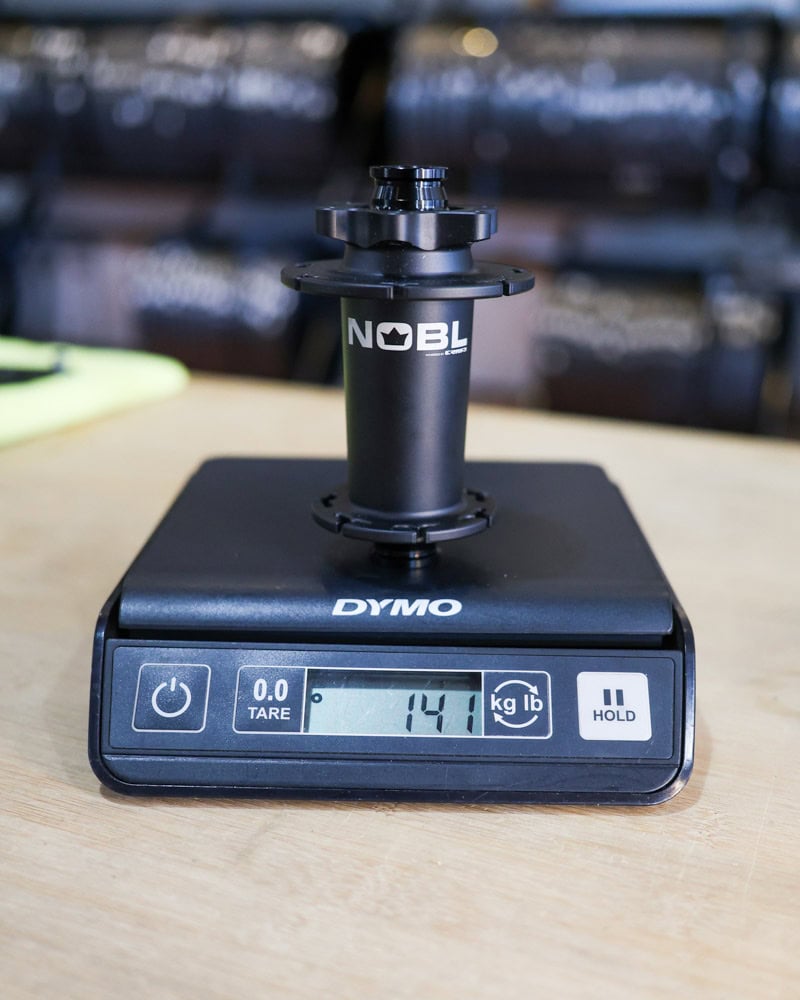

NOBL Ethos Ti70 6-Bolt MTB Boost 110x15mm Front Actual Hub Weight = 141g

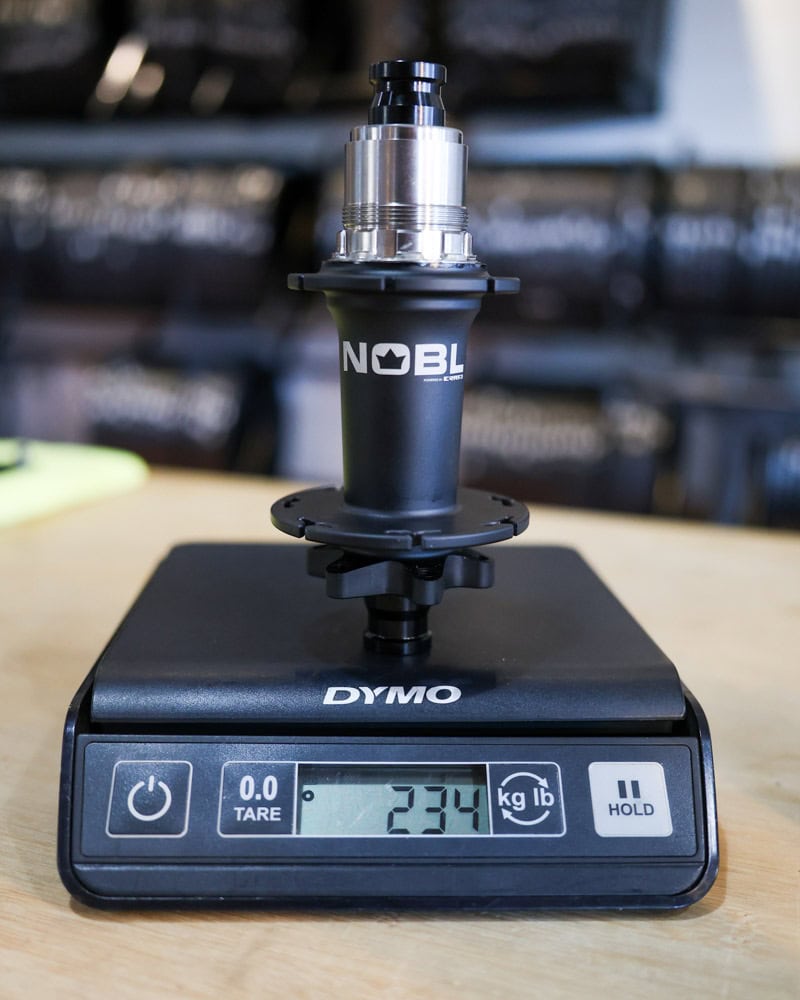

NOBL Ethos Ti70 XD 6-Bolt MTB 148mm Boost Rear
Actual Hub Weight = 234g

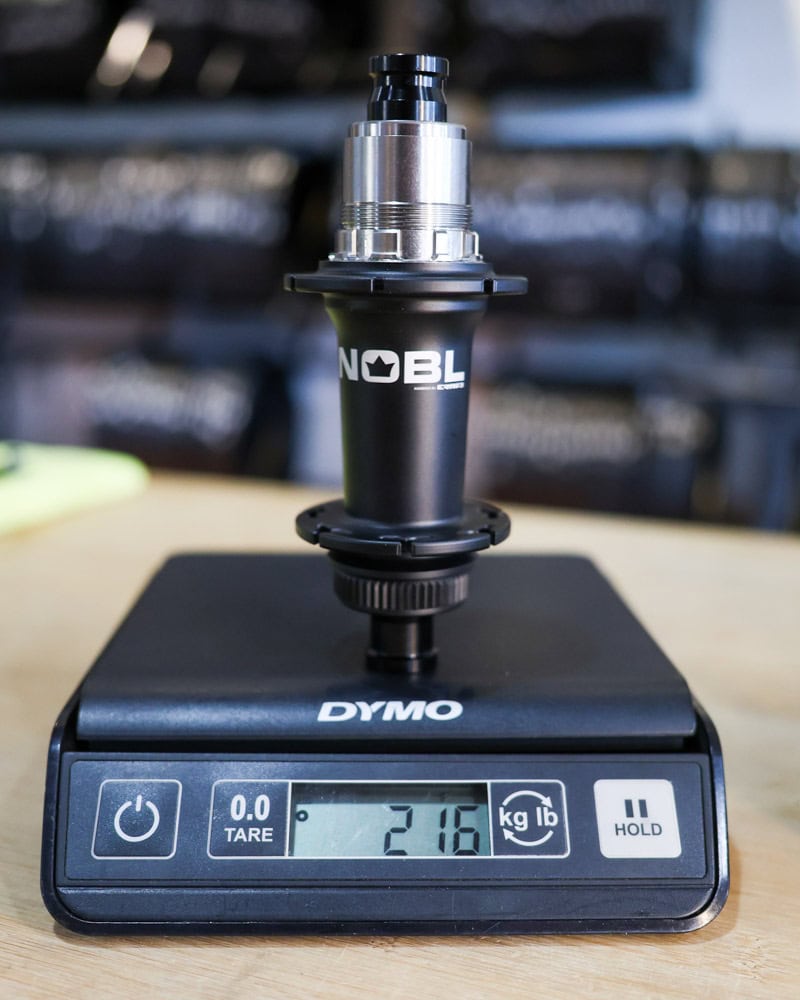

NOBL Ethos Ti70 XD Centerlock MTB 148mm Boost Rear
Actual Hub Weight = 216g

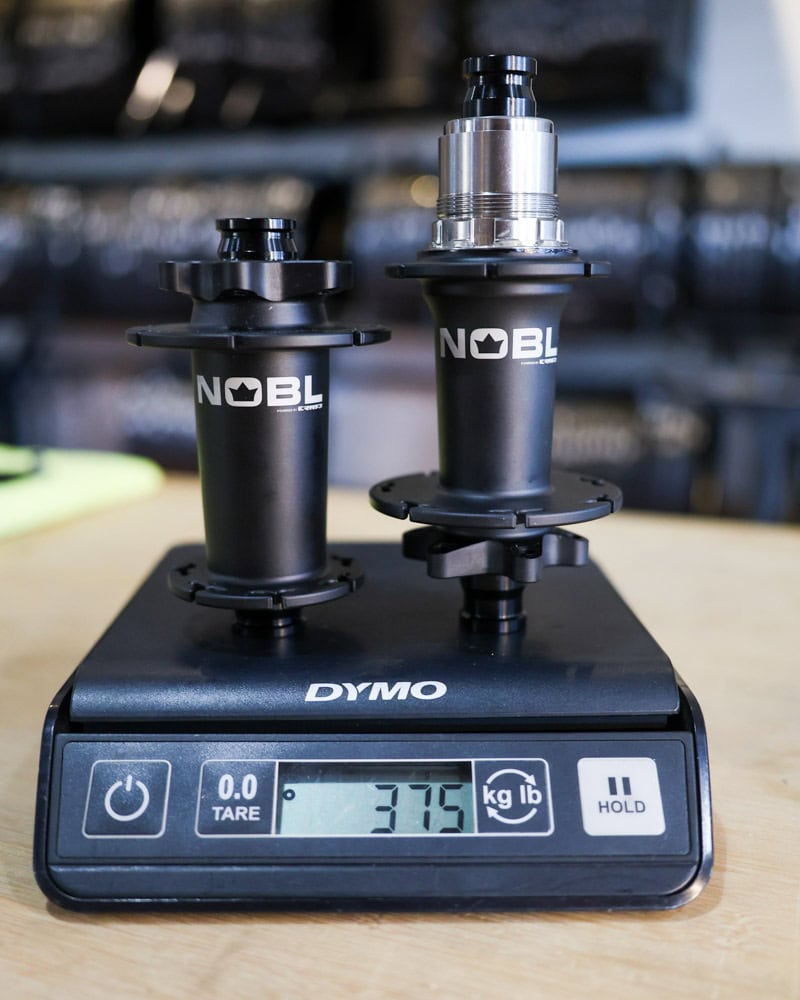

NOBL Ethos Ti70 XD 6-Bolt MTB Boost Hub Set Actual Hub Set Weight = 375g

NOBL Ethos Ti70 XD Centerlock MTB Boost Hub Set Actual Hub Set Weight = 332g

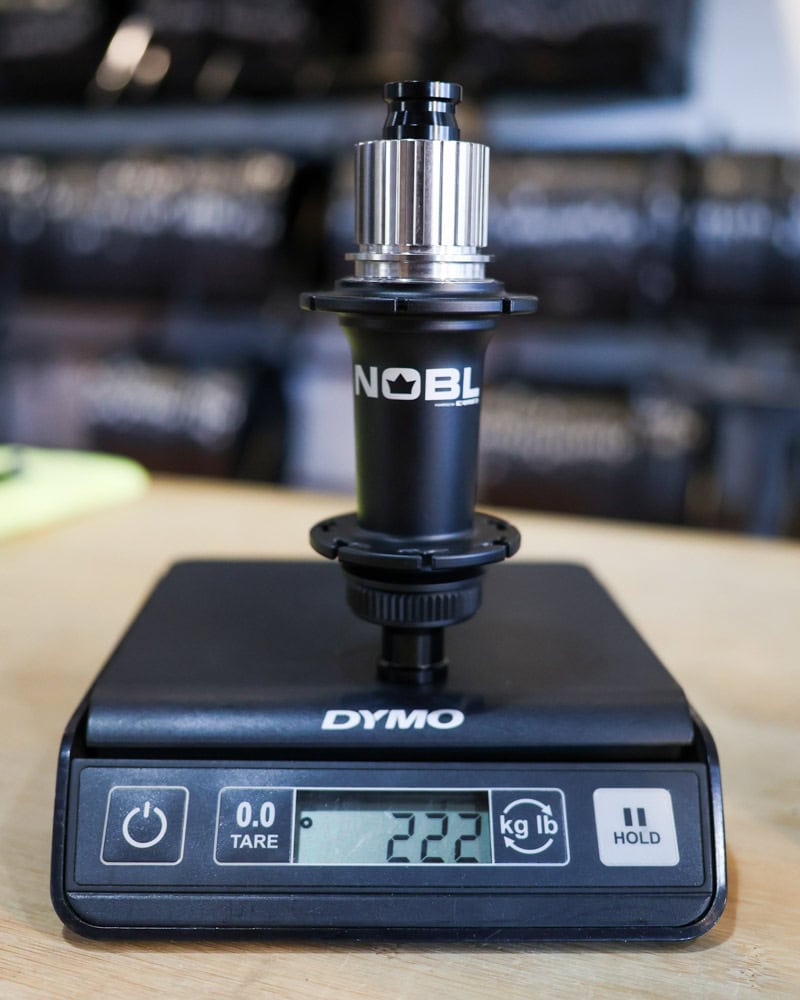

NOBL Ethos Ti70 MS Centerlock MTB 148mm Boost Rear
Actual Hub Weight = 222g

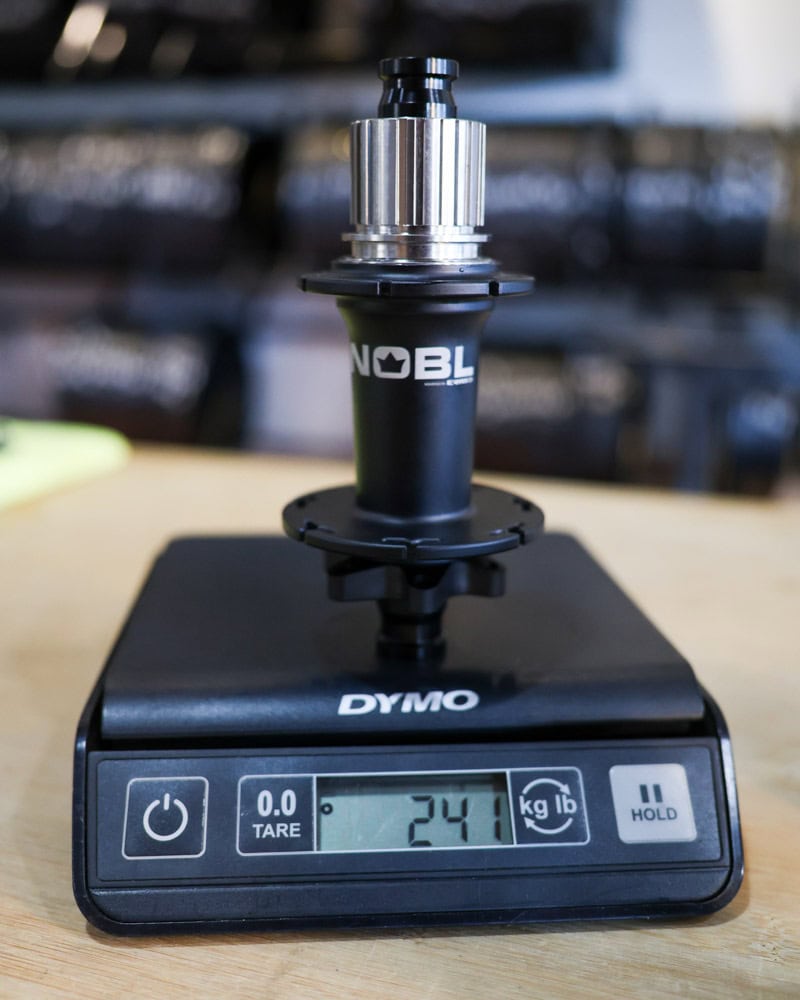

NOBL Ethos Ti70 MS 6-Bolt MTB 148mm Boost Rear
Actual Hub Weight = 241g

NOBL Ethos Ti70 MS Centerlock MTB Boost Hub Set Actual Hub Set Weight = 339g

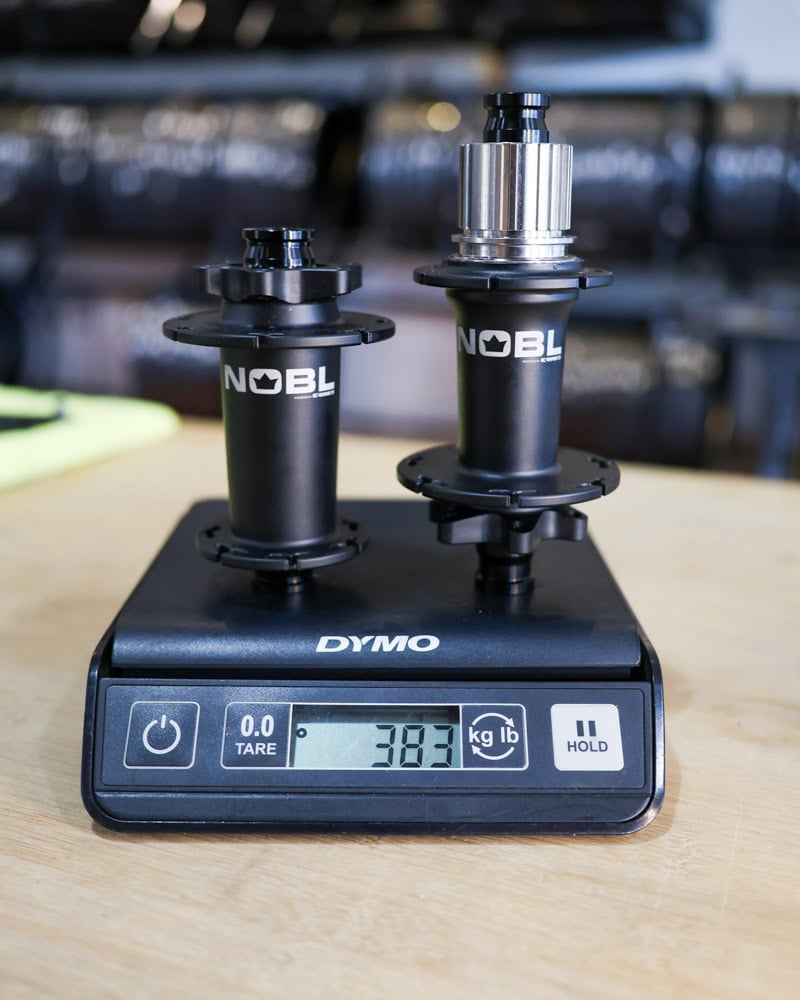

NOBL Ethos Ti70 MS 6-Bolt MTB Boost Hub Set Actual Hub Set Weight = 383g

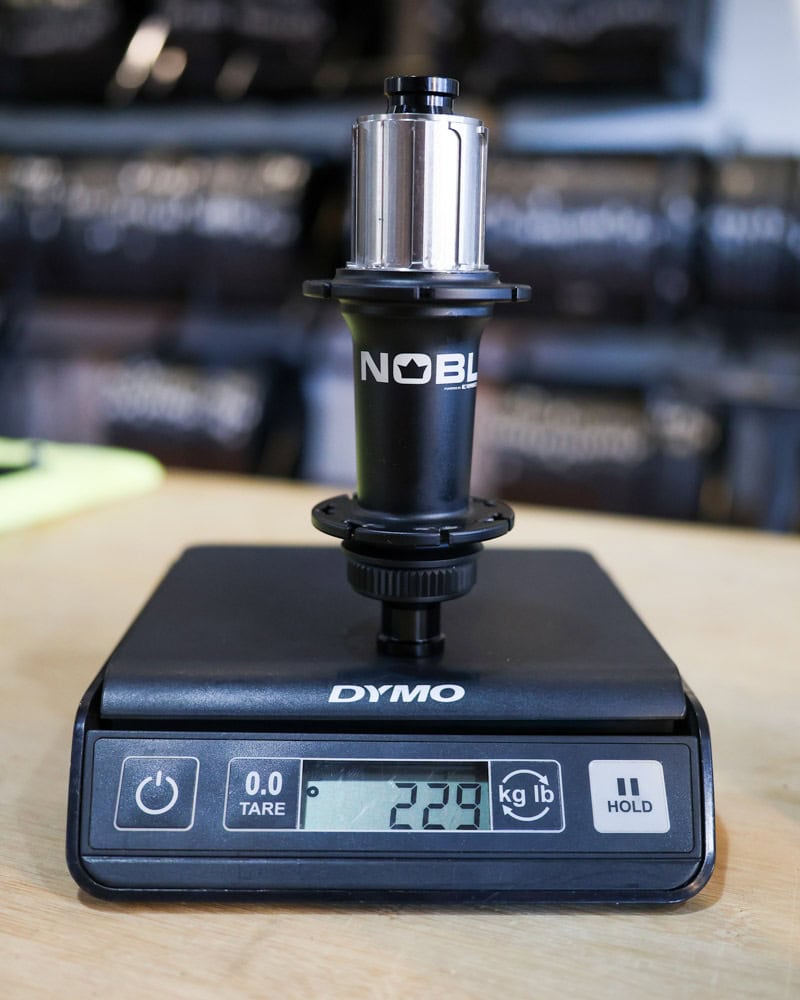

NOBL Ethos Ti70 HG Centerlock MTB 148mm Boost Rear
Actual Hub Weight = 229g

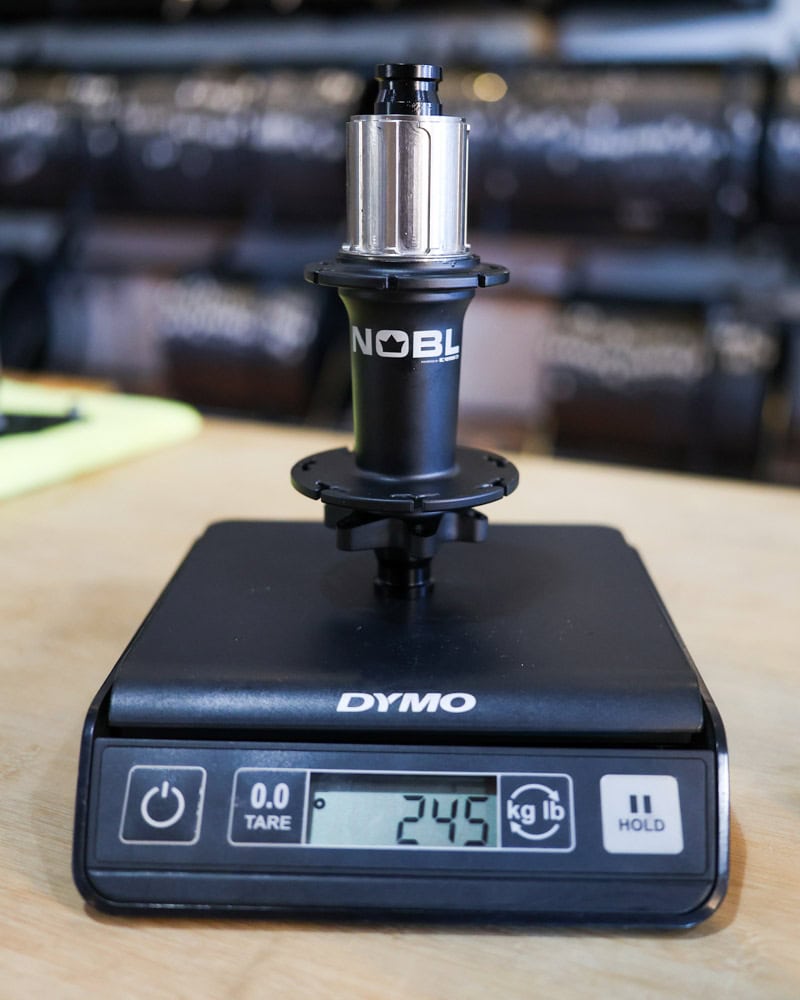

NOBL Ethos Ti70 HG 6-Bolt MTB 148mm Boost Rear
Actual Hub Weight = 245g

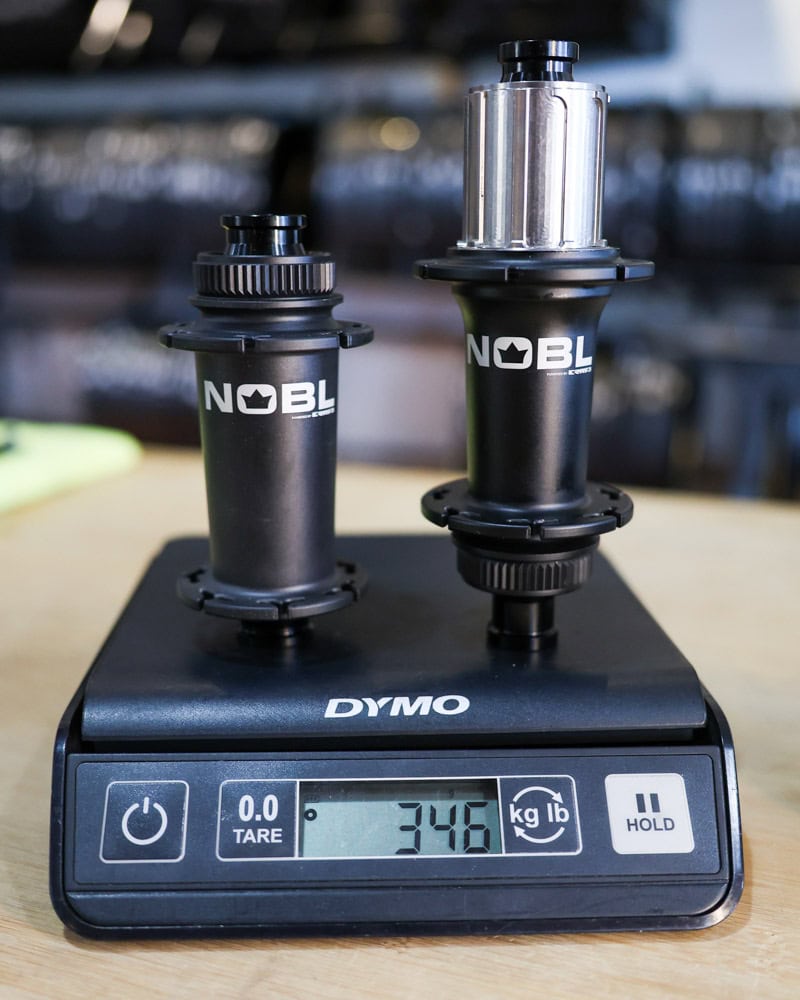

NOBL Ethos Ti70 HG Centerlock MTB Boost Hub Set Actual Hub Set Weight = 346g

NOBL Ethos Ti70 HG 6-Bolt MTB Boost Hub Set Actual Hub Set Weight = 387g

Industry Nine

boost-front-i9-solix-hub-actual-weight-120g

Industry Nine SOLiX Centerlock MTB boost 110x15mm Front Actual Hub Weight = 120g

148x12-XD-industry-nine-solix-hub-weight-CL-228g

Industry Nine SOLiX MTB Centerlock 148x12mm Rear XD Actual Hub Weight = 228g

i9-solix-MS-boost-rear-CL-hub-weight-232g

Industry Nine SOLiX MTB Centrelock MS 148x12mm Rear boost Actual Hub Weight = 232g

Industry Nine SOLiX Centerlock MTB boost 148x12mm Rear, HG, Actual Hub Weight = 238g

Industry-Nine-Solix-boost-MS-scaled-weight-228g

Industry Nine SOLiX Road Centerlock 142x12mm Boost MS Rear Actual Hub Weight = 228g

i9-solix-road-XDR-142x12-rear-hub-weight-227g

Industry Nine SOLiX Road Centrelock 142x12mm XD Rear Actual Hub Weight = 227g

Industry Nine SOLiX Road Centerlock 100x12mm Front Actual Hub Weight = 110g

Industry Nine SOLiX Road Centerlock 142x12mm Rear HG Actual Hub Weight = 232g

Industry Nine SOLiX Road 100×12/142×12 Pair Actual Hub Weight = 343g

Industry Nine 1-1 Centerlock 100x12mm Front Actual Hub Weight = 139g

Industry Nine 1-1 Centerlock 142x12mm Rear SRAM HG Actual Hub Weight = 283g

Industry Nine 1-1 Centerlock 142x12mm Rear XD Actual Hub Weight = 272

Industry Nine 101 Boost 6-Bolt 110x15mm Actual Front Hub Weight = 166g

Industry Nine 101 Boost 6-Bolt Shimano HG 148×12 Actual Hub Weight = 305g

Industry Nine 101 Boost Centerlock 110x15mm Actual Hub Weight = 138g

Industry Nine 101 Boost Centerlock XD 148×12 Actual Hub Weight = 273g

Industry Nine 101 Boost ISO MicroSpline 148×12 Actual Hub Weight = 309g

Industry Nine 101 Boost 6-Bolt 148×12 XD Actual Hub Weight = 292g

Industry Nine Torch Road 142×12 6-Bolt Actual Hub Weight = 259g

Industry Nine Torch Road 100×12 6-Bolt Actual Hub Weight = 121g

Industry Nine Torch Road 142×12 Centerlock Actual Hub Weight = 249g

Industry Nine Torch Road 100×12 Centerlock Actual Hub Weight = 110g

Hydra 2

Industry Nine Hydra 2 148×12 6-Bolt Boost
Sram XD Freehub = 294g

Industry Nine Hydra 2 110x15mm 6-Bolt Boost = 157g

Industry Nine Hydra 2 6-Bolt Boost Sram XD Hub Set = 452g

Hydra

Industry Nine Actual Hub Weight 148×12 6-Bolt Boost Shimano MicroSpline Freehub = 301g

Industry Nine Hydra Weight 148×12 Centerlock Sram XD Freehub = 272g

Industry Nine Hydra Centerlock Boost 110x15mm front hub actual weight = 138g

I9 Hydra 6-Bolt Actual Hub Weight 148×12 Sram XD Freehub = 288g

I9 Hydra Actual Hub Weight 148×12 Boost Shimano Alloy Freehub= 300g

i9 Hydra Torque Boost ISO hub 110x15mm scaled weight – 176g

i9 Hydra Fatbike hub Actual Hub Weight 197×12 6-bolt XD = 326g

Industry Nine Hydra Actual Hub Weight 110x15mm 6-Bolt Boost = 166g

Industry Nine Fatbike 6-Bolt Actual Hub Weight 150x15mm= 204g

DT Swiss

DT Swiss 180

DT Swiss 180 Centerlock 142x12mm Rear Actual Hub Weight = 192g

DT Swiss 180 Centerlock 148x12mm Boost MTB Microspline Rear Actual Hub Weight = 196g

DT Swiss 180 Centerlock 148x12mm Boost MTB XD Rear Actual Hub Weight = 187g

DT Swiss 180 QR 130x9mm Non Disc Front Actual Hub Weight = 185g

DT Swiss 180 Centerlock 110x15mm MTB Front Actual Hub Weight = 96g

DT Swiss 180 Centerlock 100x12mm Road Front Actual Hub Weight = 93g

DT Swiss 180 QR 100mm x 9mm Non-Disc Front Actual Hub Weight = 89g

DT Swiss 240

DT Swiss boost rear DEG hub weight 275g 6-bolt XD

DT Swiss 240 DEG 6-Bolt Boost XD Actual Hub Weight = 275g

DT Dwiss 240 DEG boost rear hub weight 284g ISO MS freehub

DT Swiss 240 DEG 6-Bolt Microspline freehub 148mm Actual Hub Weight = 284g

DT Swiss 240 EXP 6-Bolt 148 XD Actual Hub Weight = 227g

DT Swiss 240 EXP 6-Bolt Microspline 148mm Actual Hub Weight = 235g

DT Swiss 240 EXP 6-Bolt Front 110mm Actual Hub Weight = 144g

DT Swiss 240 Centerlock Rear XD 142mm Actual Hub Weight = 198g

DT Swiss 240 EXP Centerlock XD 148mm Actual Hub Weight = 201g

DT Swiss 240 Centerlock Microspline 148mm Actual Hub Weight = 209g

DT Swiss 240 EXP Centerlock Front 100mm Actual Hub Weight = 104g

DT Swiss 240 EXP Centerlock Front 110mm Actual Hub Weight = 111g

DT Swiss 240 EXP Centerlock Front Hub Actual Hub Weight 110×15 = 120g

DT Swiss 240 EXP Road Centerlock Actual Hub Weight 100×12 = 103g

DT Swiss 240 EXP Centerlock Road Actual Hub Weight 142×12 XDR = 192g

DT Swiss 240 EXP Centerlock Actual Hub Weight 148×12 MS = 224g

DT Swiss 240 EXP Centerlock Actual Hub Weight 148×12 HG = 226g

DT Swiss 350

DT Swiss 350 Ratchet DEG, 6-Bolt, 148x12mm, Boost, Sram XD
Rear Actual Hub Weight = 310g

DT Swiss 350 Ratchet DEG, 6-Bolt, 148x12mm, Boost, Sram XD
Front Actual Hub Weight = 164g

DT Swiss 350 Ratchet DEG, 6-Bolt, 148x12mm, Boost, Sram XD
Hubset Actual Weight = 464g

2022 DT Swiss 350 Hub, 6-Bolt, 148x12mm, Boost, XD ISO Rear Actual Hub Weight = 269g

2022 DT Swiss 350 Hub, Centerlock, Boost, XD, Rear, Actual Hub Weight = 257g

2022 DT Swiss 350 Hub, 6-Bolt, 148mm Boost, ISO MS Rear Actual Hub Weights = 277g

2022 DT Swiss 350 Hub, CL, Front Boost 110mm Actual Hub Weight = 142g

2022 DT Swiss 350 Hub, 6-Bolt, Front 110mm Boost Actual Hub Weight = 163g

2022 DT Swiss 350 Hub, 6-Bolt, ISO HG 148mm Boost, Actual Hub Weights = 292g

DT 350 straight pull 110x15mm 6-bolt 143g weight

DT Swiss 350 6-bolt, Straight pull front hub Actual Weight 100x15mm = 143g

135g DT Swiss front hub actual weight 110x15 straight pull centerlock

DT Swiss 350 Hub, 100×15, centerlock, Straight Pull, Actual Hub Weight = 135g

DT Swiss 350 Hub, 148mm Boost, Centerlock, Straight Pull, Actual Hub Weight = 228g

Microspline DT350 straight pull CL 236 g

DT Swiss 350 centerlock, microspline, straight pull rear hub Actual Weight 100x15mm = 236g

Microspline 6-bolt traight pull boost dt350 scaled weight 244g

DT Swiss 350 Hub, 6-bolt, 148mm, Straight Pull, Scaled Actual Hub Weight = 244g

SP ISO 148x12 sram XD rear hub actual weight 235g DT350

DT Swiss 350 Hub, 148×12 XD, 6-Bolt, Straight Pull ISO, Actual Hub Weight = 235g

Chris King

Chris King 6-bolt 2022 MTB MS 110x15mm Front Hub Actual Hub Weight = 185g

Chris_King_NOBL_6-Bolt_MS_Actual_Weight_Hub

Chris King 6-bolt 2022 MTB MS 148X12 Rear Hub Actual Hub Weight = 319g

Chris_King_NOBL_6-Bolt_Rear_XD_Actual_Weight_Hub

Chris King 6-Bolt 2022 MTB XD 148X12 Actual Hub Weight = 311g

Chris_King_NOBL_6-Bolt_Rear_MS_Actual_Weight_Hub

Chris King 6-Bolt 2022 MTB HG 148X12 Rear Hub Actual Hub Weight = 318g

Chris King CL MTB MS 157X12 Rear Hub Actual Hub Weight = 315g

Chris King CL MTB XD 157X12 Actual Hub Weight = 307g

Chris King CL MTB HG 157X12 Rear Hub Actual Hub Weight = 314g

Chris King CL MTB 110X15 Front Hub Actual Hub Weight = 150g

Chris King CL MTB Pair (XD) Actual Hub Weight = 458g

Chris King CL MTB 110X15 Front Hub Actual Hub Weight = 152g

Chris King CL MTB XD 148X12 Actual Hub Weight = 283g

Chris King CL MTB HG 148X12 Rear Hub Actual Hub Weight = 290g

Chris King CL MTB Microspline 148X12 Rear Actual Hub Weight = 283g

Chris King 110 Front Hub Actual Hub Weight = 184g

Chris King HG Steel 148mm Actual Hub Weight = 317g

Chris King 148mm HG Rear Actual Hub Weight = 317g

Chris King Road CL Front 100mm Actual Hub Weight = 144g

Chris King Road CL HG 142mm Rear Actual Hub Weight = 263g

Chris King 148mm XD Steel Actual Hub Weight = 366g

Onyx Hubs

Onyx Vesper

onyx-100-quick-release-vesper-front-hub-weight-162g

Onyx Vesper, 6-bolt, 100mm quick release, front, Actual Hub Weight = 162g

onyx-vesper-6-bolt-135QR-XDR-hub-weight-407g

Onyx Vesper, 6-bolt, XDR, 135mm QR, Rear Actual Hub Weight = 407g

onyx-hook-flange-front-boost-hub-weight-141g-CL

Onyx Vesper BERD flange, Centerlock, boost, front, Actual Hub Weight = 141g

onyx-vesper-hook-boost-weight-372g-microspline-CL

Onyx Vesper Berd hook flange Centerlock Boost, Microspline Rear Actual Hub Weight = 372g

onyx-berd-hook-flange-cl-148x12-XDR-hub-weight-368g

Onyx Vesper Berd Flange, Centerlock Boost XD Rear Actual Hub Weight = 368g

Onyx Vesper 6-Bolt Boost MS Rear Actual Hub Weight = 410g

Onyx Vesper Centerlock Boost MS Rear Actual Hub Weight = 376g

Onyx Vesper Centerlock Boost XD Rear Actual Hub Weight = 374g

Onyx Vesper XDR 6-Bolt 148x12mm Rear Actual Hub Weight = 390g

Onyx Vesper Shimano HG 6-Bolt 148x12mm Rear Actual Hub Weight = 401g

Onyx Vesper 6-Bolt 110x15mm Front Actual Hub Weight = 166g

Onyx Vesper 6-Bolt 110x20mm DH Front Actual Hub Weight = 159g

Onyx Vesper Torque 6-Bolt 110x15mm Front Actual Hub Weight = 174g

Onyx Vesper 6-Bolt Super Boost Rear 157x15mm Actual Hub Weight = 413g

Onyx Vesper XDR Centerlock 148x12mm Rear Actual Hub Weight = 358g

Onyx Vesper Centerlock 110x15mm Front Actual Hub Weight = 144g

Onyx Classic

Onyx Classic 6-Bolt Boost 157x12mm MS Rear Actual Hub Weight = 470g

Onyx Classic Centerlock Boost 157x12mm XD Rear Actual Hub Weight = 465g

Onyx-Classic-Lefty-2.0-supermax-scaled-weight-152g

Onyx Classic Lefty 2.0 Supermax, Actual Hub Weight = 152g

onyx-pro-helix-bmx-front-hub-weight-240g-100x10mm

Onyx Pro Helix BMX, front, 100x10mm, Front Actual Hub Weight = 240g

110x10mm-bmx-onyx-pro-rear-hub-weight-409g-singlespeed

Onyx Classic BMX pro, singlespeed, rear, Actual Hub Weight = 409g

Onyx Classic 6-Bolt Boost 157x12mm HG Steel Rear Actual Hub Weight = 529g

Onyx Classic Centerlock Boost 148x12mm Microspline (MFU) Alloy Rear Actual Hub Weight = 438g

Onyx Classic Centerlock Boost 148x12mm XD Alloy Rear Actual Hub Weight = 428g

Onyx Classic 6-Bolt Boost 148x12mm HG Alloy Rear Actual Hub Weight = 466g

Onyx Classic 6-Bolt Boost 148x12mm Microspline Alloy (MFU) Rear Actual Hub Weight = 458g

Onyx Classic 6-Bolt Boost 148x12mm XD Steel Rear Actual Hub Weight = 511g

Onyx Classic Rear 148mm Steel HG Actual Hub Weight = 505g

Onyx Classic 6-Bolt 110x15mm Front Actual Hub Weight = 221g

Onyx Classic 6-Bolt 148mm Rear XD Actual Hub Weight = 421g

Hope

Hope Pro 5 Gravel/Road Hubset, Straightpull, Centerlock, Actual Weight = 419g

Hope Pro 5 Rear XD, 142x12mm, Straightpull, Centerlock, Actual Hub Weight = 278g

Hope Pro 5 Front, 12x100mm, Straightpull, Centerlock, Actual Hub Weight = 140g

110x15mm Pro 5 136g actual weight Hope front hub

Hope Pro 5 Front, 110x15mm, Centerlock, Actual Hub Weight = 136g

Hope Pro 5 centerlock XD 148x12mm 288g actual weight

Hope Pro 5 Rear XD, 148x12mm, Centerlock, Actual Hub Weight = 288g

Hope Pro 5 Front, 15x110mm, 6-Bolt, Actual Hub Weight = 187g

Hope Pro 5 Rear XD, 12x148mm, 6-Bolt, Actual Hub Weight = 313g

Hope Pro 4 Front 110mm = 194g

Hope Pro 4 Rear XD 148mm = 305g

Hope Pro 2 EVO 100×15 = 179g

Hope Pro 2 EVO 142×12 HG = 307g

Hope Pro 2 EVO 142×12 XD = 294g

OneUp Components

OneUp Components hubs boost 6-bolt XD pair Actual Hub Weight = 362g

OneUp Components boost 6-bolt XD rear hub Actual Hub Weight = 219g

OneUp Components boost 6-bolt front hub Actual Hub Weight = 142g

OneUp Components boost 6-bolt HG rear hub Actual Hub Weight = 228g

OneUp Components boost 6-bolt MS rear hub scaled Actual Hub Weight = 220g

Son Dynamo

Son Dynamo 100x12mm CL front hub Actual Hub Weight = 421g

Son dynamo 100x15mm 6-bolt front hub scaled weight 463g

Son Dynamo 100x15mm 6-bolt front hub scaled Actual Hub Weight = 463g

Son dynamo 110x15mm boost 6-bolt front hub scaled weight 483g

Son Dynamo 110x15mm boost 6-bolt front hub scaled Actual Hub Weight = 483g

Project 321

Project 321 G3 6-bolt Adapter Weight = 21g

Project-321-G3-front-hub-weight-175g-110x15mm

Project 321 G3 Boost Front 110×15, 6-bolt Actual Hub Weight = 175g

G3-project-321-boost-rear-hub-weight-315g-XD

Project 321 G3 Rear Boost, XD, Hub Weight = 315g

P321-G3-148x12mm-Shimano-MicroSpline-actual-hub-weight-319g

Project 321 G3 Boost Rear 148×12 Microspline, Actual Hub Weight = 319g

Project-321-boost-HG-6-lock-scaled-weight-324g

Project 321 G3 Boost, 148×12, HG, hub weight = 324g

Project 321 G3 Road Hubs HG Centerlock Pair Actual Hub Weight = 445g

Project 321 G3 Rear Hub 142×12 HG Centerlock Actual Hub Weight = 301g

Project 321 G3 Front Hub 100×12 Centerlock Actual Hub Weight = 144g

Project 321 G2 Front Boost 110×15 = 166g

Project 321 G2 Boost Rear 148×12 Microspline = 297g

Project 321 G2 110/148×12 Microspline = 464g

2017 Project 321 100×15 = 173g

2017 Project 321 142×12 XD = 278g

2017 Project321 Hubset actual weight 216 POE 142×12 XD, 100×15 = 447g

White Industry

White Industries CLD Centerlock 100x12mm Front Actual Hub Weight = 137g

White Industries CLD Centerlock 142×12 mm XD Rear Actual Hub Weight = 280g

Shimano XTR

Shimano XTR Centerlock Hubset, 142×12 HG, 100×15, = 404g

Shimano XTR Centerlock Hub actual weight 100×15 = 135g

Shimano XTR Centerlock Hub actual weight 142×12 = 269g

Profile

Profile Racing Boost hub actual weight 560g pair. 148×12, 110×15 Torque front

Ranking the Best Carbon E-Bike Wheels of 2026: NOBL, Zipp, RaceFace & Crankbrothers

We collected stats and ride data of some of the top carbon e-bike wheelsets from NOBL, Zipp, RaceFace and Crankbrothers. Who came out on top? Read to find out!

What We Ride: Tess’s Chromag Rootdown Bike Check

Pedal bikes are still in! Adding to a growing bike collection, Tess built up their Chromag Rootdown hardtail with custom TR35 wheels for tagging into staff rides and jibbing around town.

2026 Best Ultralight XC Carbon Wheels: NOBL Ethos SL180 vs Berd HAWK30 Gold vs Roval Control World Cup

Comparing the top ultralight carbon XC wheelsets of 2026: NOBL Ethos SL 180, Berd HAWK30 Gold and Roval Control World Cup.

NOBL Signature 38 Review: No Limits Found

Ride Review: Signature 38 Carbon Enduro WheelsetWords By: Matthew TongueI had noticeably more control with the Signature 38s. I could point the front end and trust it to stay on line, with far less feedback coming back through the bike. 10/10 on the new Signature...

Inside the NOBL Wheel building Process

At NOBL, we believe a premium wheelset is only as good as the process behind it. While every build begins with the expert hands of our builders in BC and Washington, it’s our partnership with TRUDI—a semi-automated truing system—that sets a new standard for precision. By combining human judgment with robotic consistency, we ensure every wheel that leaves our shop is balanced, tensioned, and built to stay fast and true for years to come.

No Rim Left Behind: Keeping Evil Riders Rolling!

Recently, we were surprised—like many others—to hear about the sudden closure of CSS / Forge+Bond, a rim manufacturer that worked with several bike brands across the industry. The news was unexpected, and it reminded us just how important it is for small,...
