Hub Weights

Scaled Weights of Hubs

Below we’ve scaled and recorded the weights of several different hub brands, as weights listed online aren’t always accurate. For quick reference to a certain brand click one of these links: Industry Nine, DT Swiss, Chris King, Onyx, Hope, White Industries, Shimano XTR, Project 321, Profile. *Not all hubs listed are available on our site, for custom orders please contact us.

Industry Nine

1/1

Industry Nine 1-1 Centerlock 100x12mm Front Actual Hub Weight = 139g

Industry Nine 1-1 Centerlock 142x12mm Rear SRAM HG Actual Hub Weight = 283g

Industry Nine 1-1 Centerlock 142x12mm Rear XD Actual Hub Weight = 272

Industry Nine 101 Boost 6-Bolt 110x15mm Actual Front Hub Weight = 166g

Industry Nine 101 Boost 6-Bolt Shimano HG 148×12 Actual Hub Weight = 305g

Industry Nine 101 Boost Centerlock 110x15mm Actual Hub Weight = 138g

Industry Nine 101 Boost Centerlock XD 148×12 Actual Hub Weight = 273g

Industry Nine 101 Boost ISO MicroSpline 148×12 Actual Hub Weight = 309g

Industry Nine 101 Boost 6-Bolt 148×12 XD Actual Hub Weight = 292g

Torch

Industry Nine Torch Road 142×12 6-Bolt Actual Hub Weight = 259g

Industry Nine Torch Road 100×12 6-Bolt Actual Hub Weight = 121g

Industry Nine Torch Road 142×12 Centerlock Actual Hub Weight = 249g

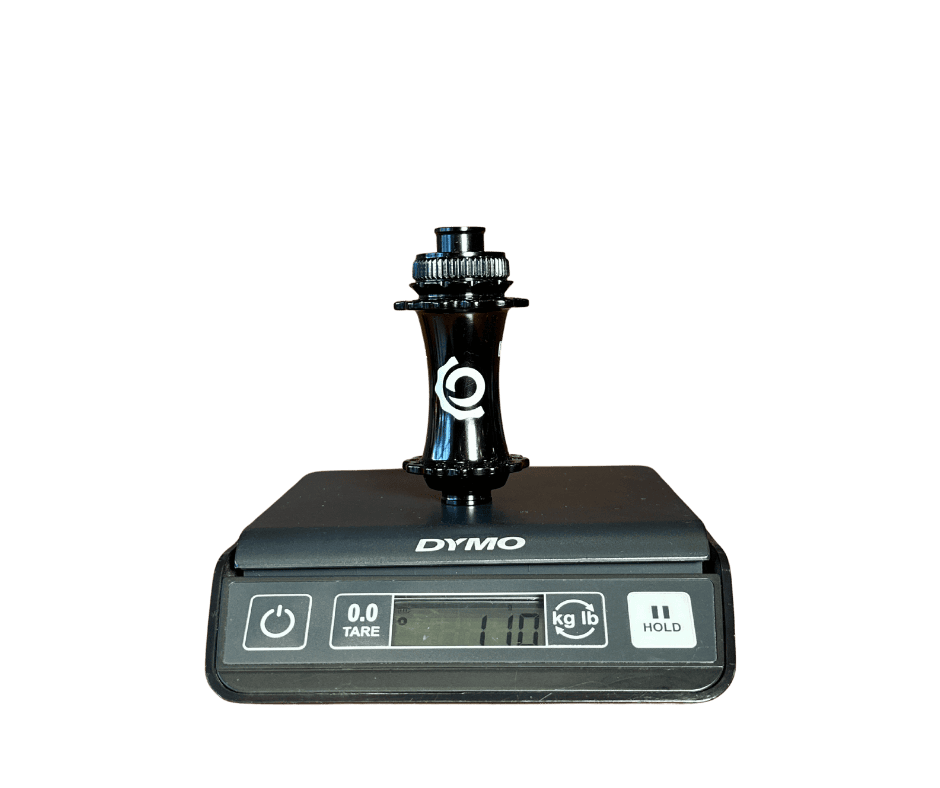

Industry Nine Torch Road 100×12 Centerlock Actual Hub Weight = 110g

Hydra

Industry Nine Actual Hub Weight 148×12 6-Bolt Boost Shimano MicroSpline Freehub = 301g

Industry Nine Hydra Weight 148×12 Centerlock Sram XD Freehub = 272g

Industry Nine Hydra Centerlock Boost 110x15mm front hub actual weight = 138g

I9 Hydra 6-Bolt Actual Hub Weight 148×12 Sram XD Freehub = 288g

I9 Hydra Actual Hub Weight 148×12 Boost Shimano Alloy Freehub= 300g

i9 Hydra Torque Boost ISO hub 110x15mm scaled weight – 176g

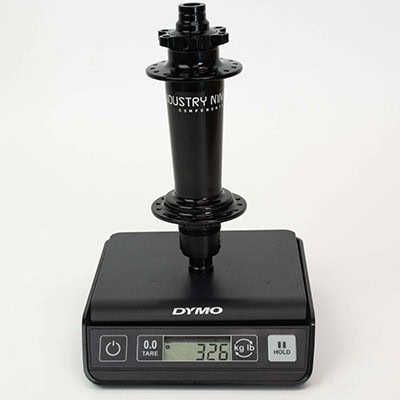

i9 Hydra Fatbike hub Actual Hub Weight 197×12 6-bolt XD = 326g

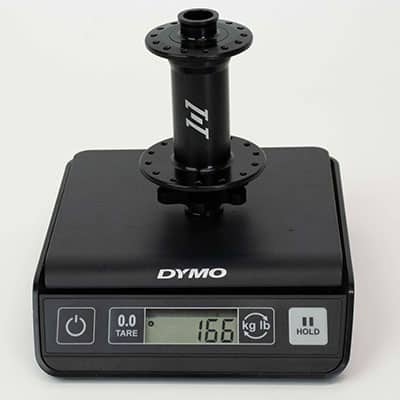

Industry Nine Hydra Actual Hub Weight 110x15mm 6-Bolt Boost = 166g

Industry Nine Fatbike 6-Bolt Actual Hub Weight 150x15mm= 204g

Industry Nine Hubset 142×12 XD, 100×15 = 428g

Industry Nine 142×12 XD = 273g

Industry Nine 100×15 = 154g

Industry Nine 148×12 Boost HG = 293g

Industry Nine 142×12 HG = 289g

Industry Nine 157×12 super boost actual hub weight XD = 292g

Industry Nine Steel XD Freehub weight: 137.6g complete with pawls, spacer, bearings

DT Swiss

DT Swiss 180

DT Swiss 180 Centerlock 142x12mm Rear Actual Hub Weight = 192g

DT Swiss 180 Centerlock 148x12mm Boost MTB Microspline Rear Actual Hub Weight = 196g

DT Swiss 180 Centerlock 148x12mm Boost MTB XD Rear Actual Hub Weight = 187g

DT Swiss 180 QR 130x9mm Non Disc Front Actual Hub Weight = 185g

DT Swiss 180 Centerlock 110x15mm MTB Front Actual Hub Weight = 96g

DT Swiss 180 Centerlock 100x12mm Road Front Actual Hub Weight = 93g

DT Swiss 180 QR 100mm x 9mm Non-Disc Front Actual Hub Weight = 89g

DT Swiss 240

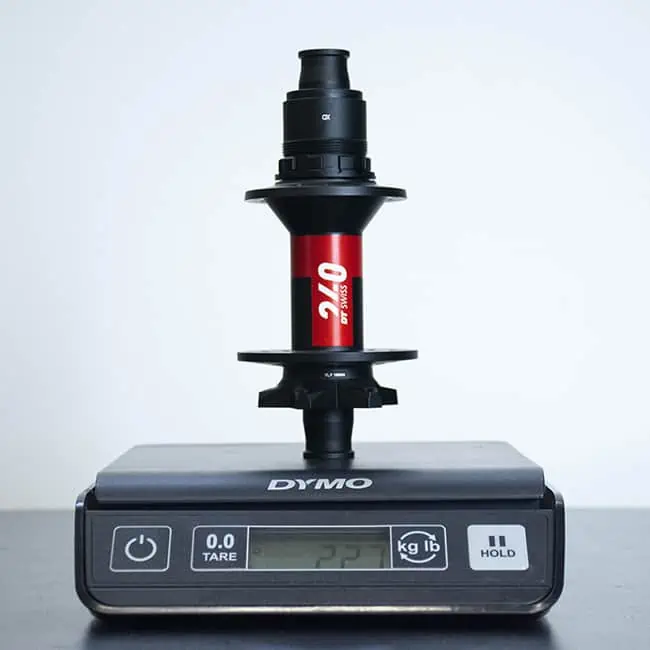

DT Swiss 240 EXP 6-Bolt 148 XD Actual Hub Weight = 227g

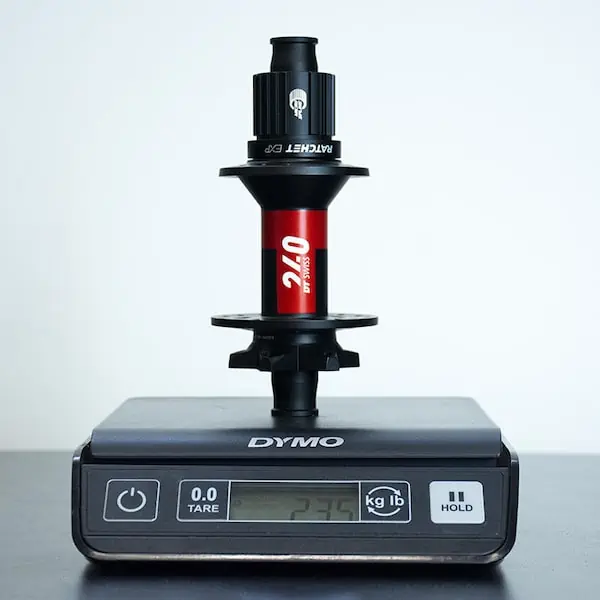

DT Swiss 240 EXP 6-Bolt Microspline 148mm Actual Hub Weight = 235g

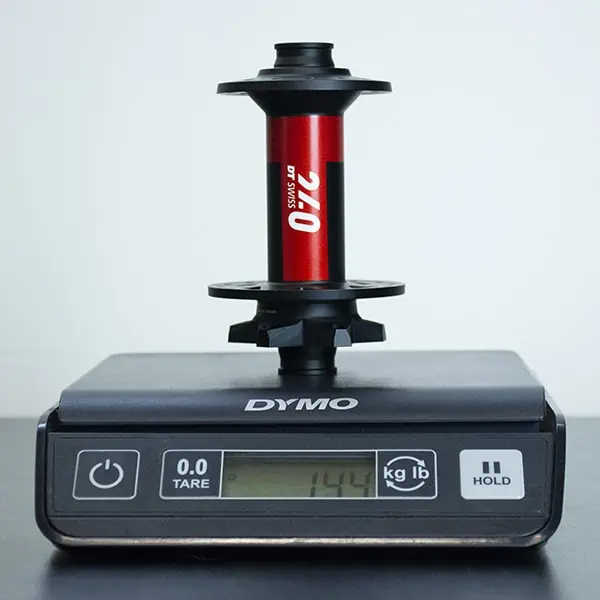

DT Swiss 240 EXP 6-Bolt Front 110mm Actual Hub Weight = 144g

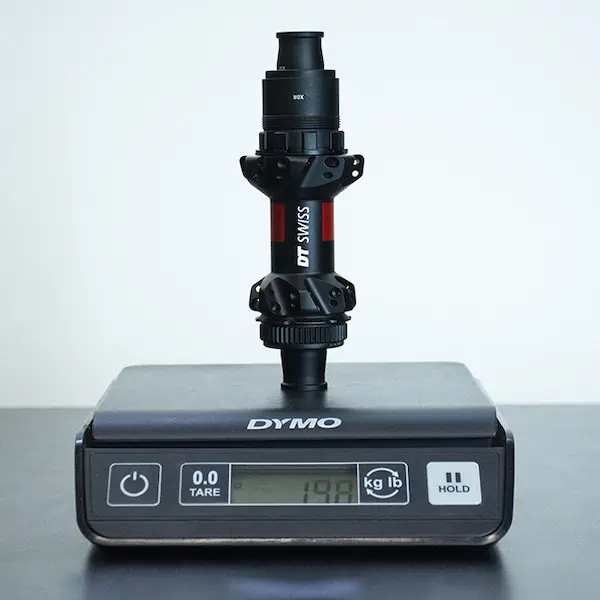

DT Swiss 240 Centerlock Rear XD 142mm Actual Hub Weight = 198g

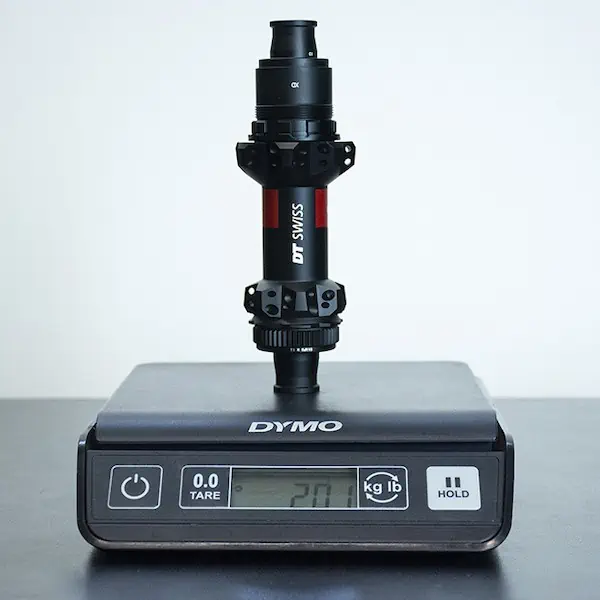

DT Swiss 240 EXP Centerlock XD 148mm Actual Hub Weight = 201g

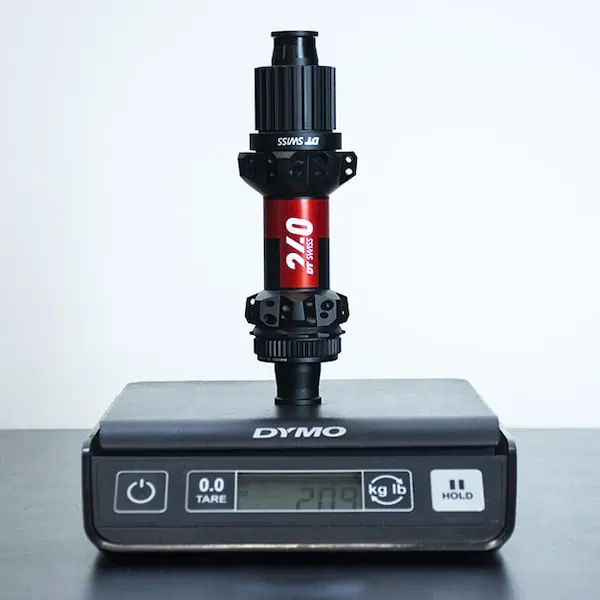

DT Swiss 240 Centerlock Microspline 148mm Actual Hub Weight = 209g

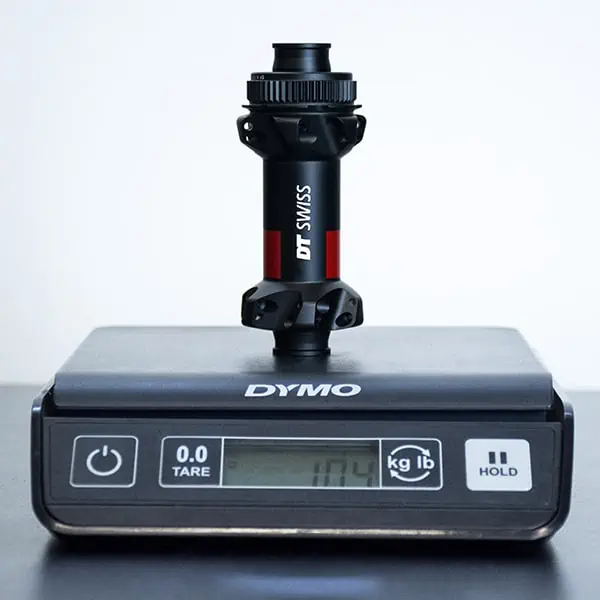

DT Swiss 240 EXP Centerlock Front 100mm Actual Hub Weight = 104g

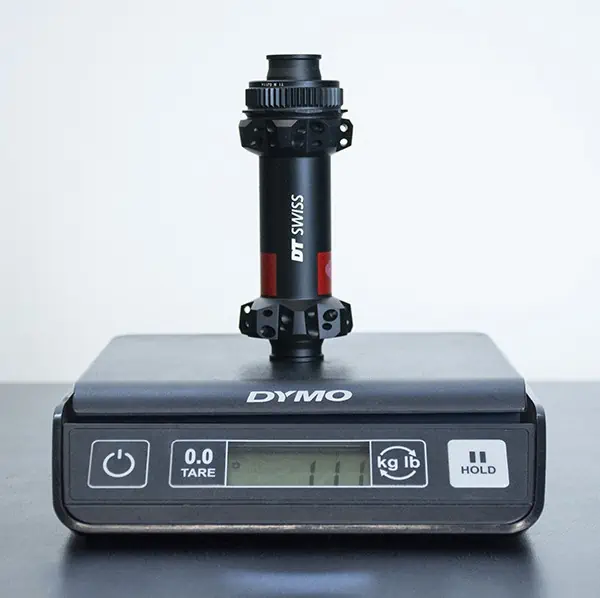

DT Swiss 240 EXP Centerlock Front 110mm Actual Hub Weight = 111g

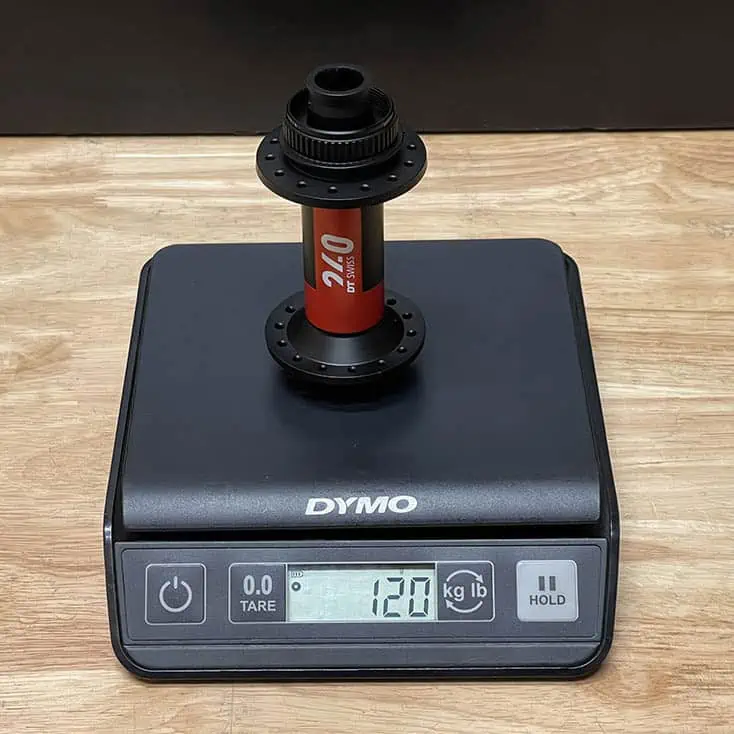

DT Swiss 240 EXP Centerlock Front Hub Actual Hub Weight 110×15 = 120g

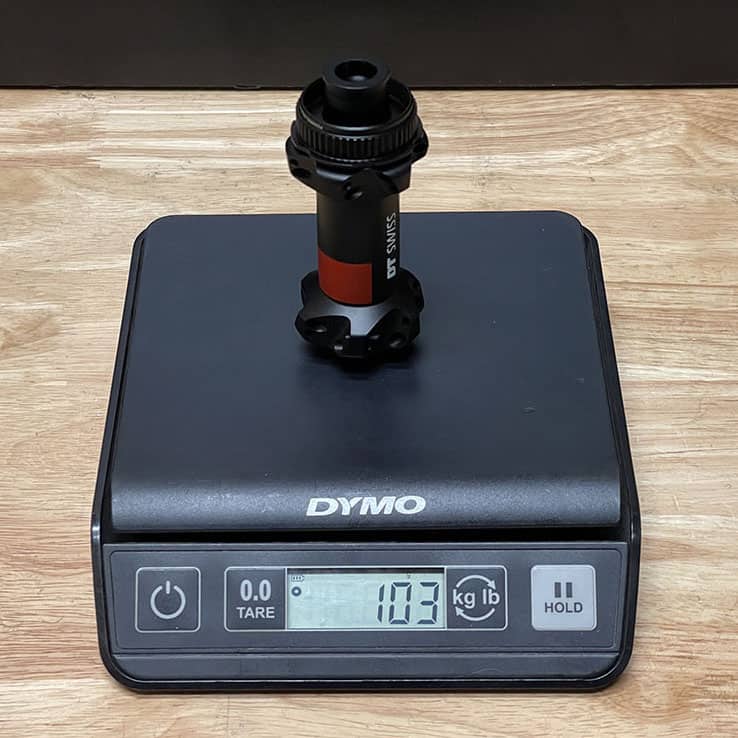

DT Swiss 240 EXP Road Centerlock Actual Hub Weight 100×12 = 103g

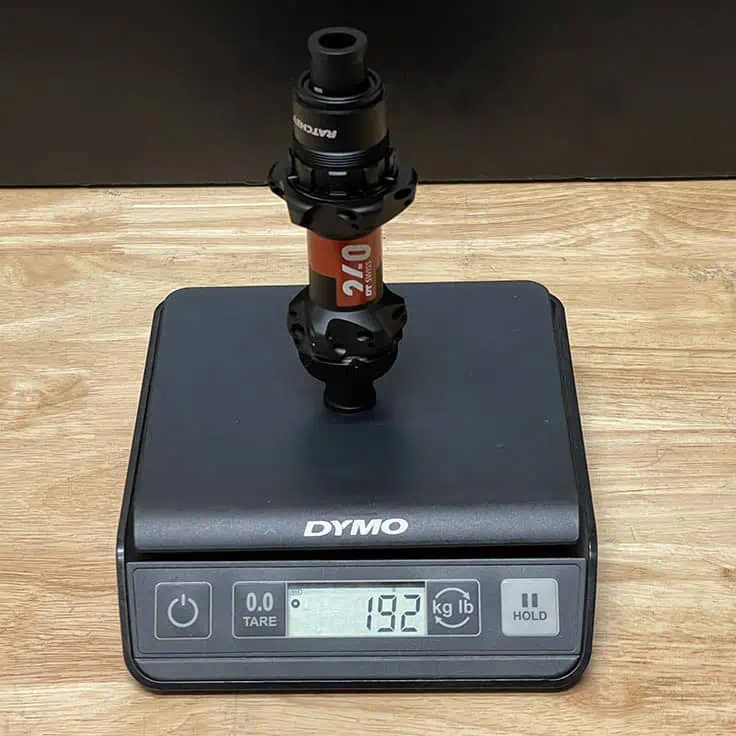

DT Swiss 240 EXP Centerlock Road Actual Hub Weight 142×12 XDR = 192g

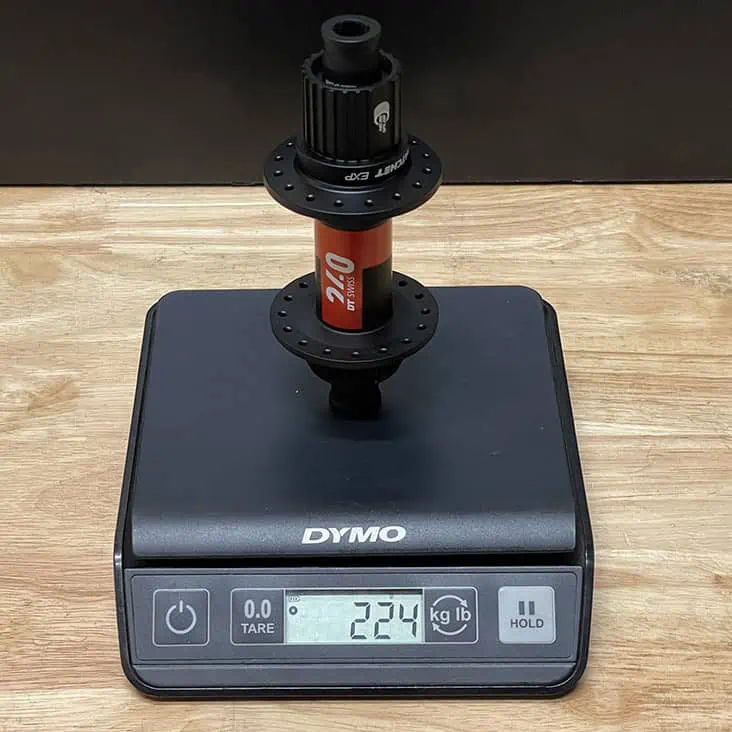

DT Swiss 240 EXP Centerlock Actual Hub Weight 148×12 MS = 224g

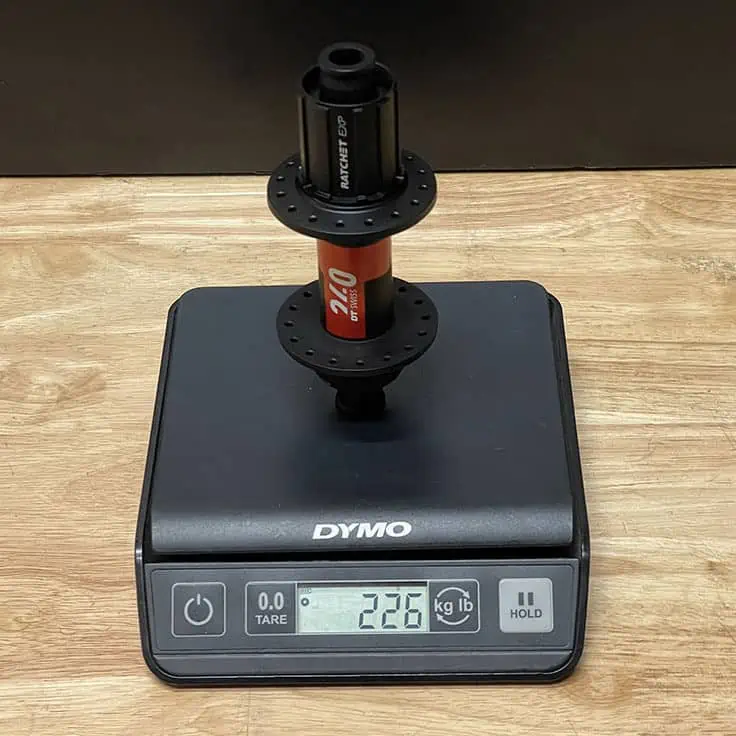

DT Swiss 240 EXP Centerlock Actual Hub Weight 148×12 HG = 226g

DT Swiss 240 Centerlock Straightpull Actual Hub Weight 148×12 HG = 202g

DT Swiss 240 6-Bolt Actual Hub Weight 148×12 MS = 238g

DT Swiss 240 Centerlock Actual Hub Weight 148×12 XD 28h = 219g

DT Swiss 240 Centerlock Actual Front Hub Weight 110x15mm 28h = 129g

DT Swiss 240 6-bolt Actual Front Hub Weight 110x15mm = 147g

DT Swiss 240 6-Bolt Actual Hub Weight 148×12 XD = 232g

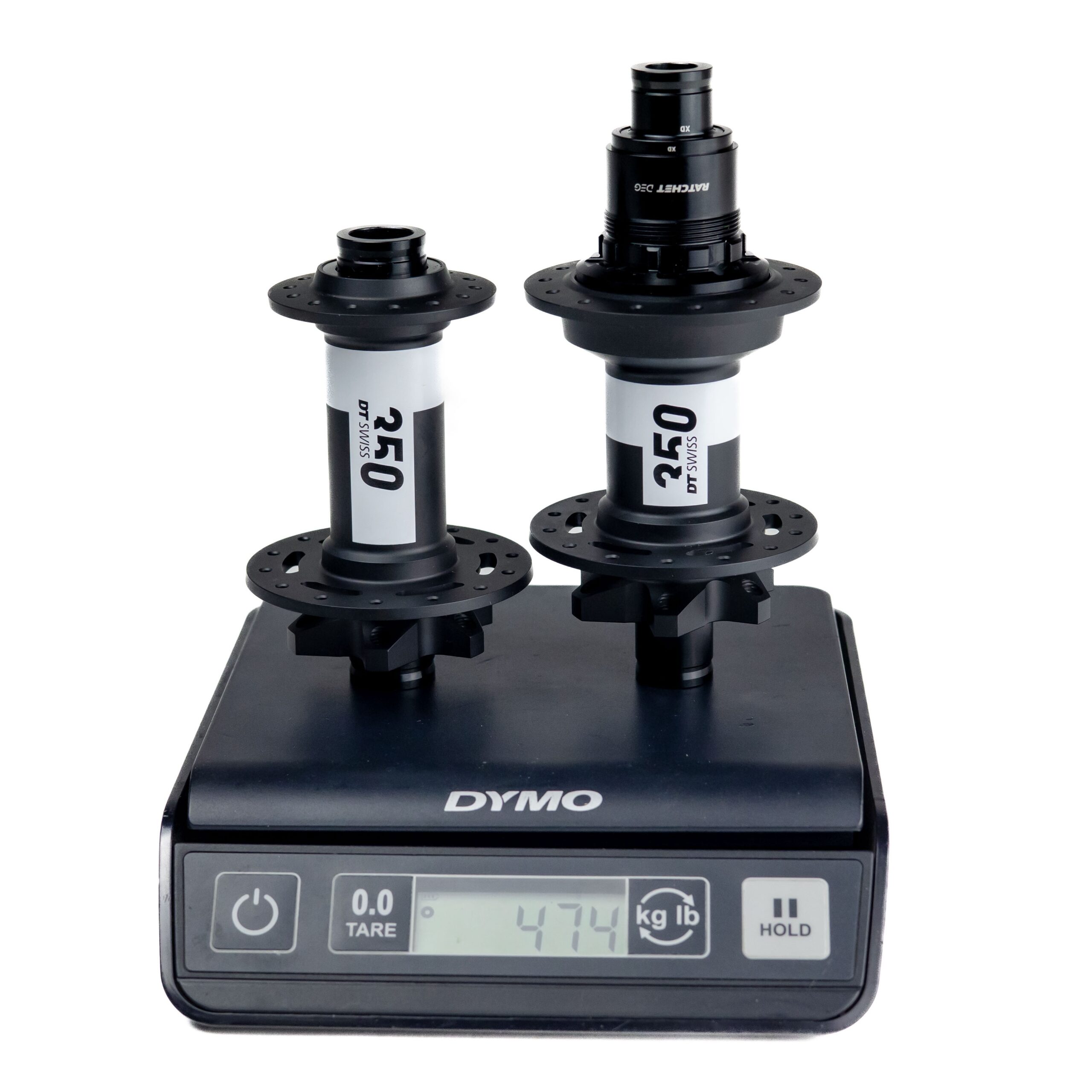

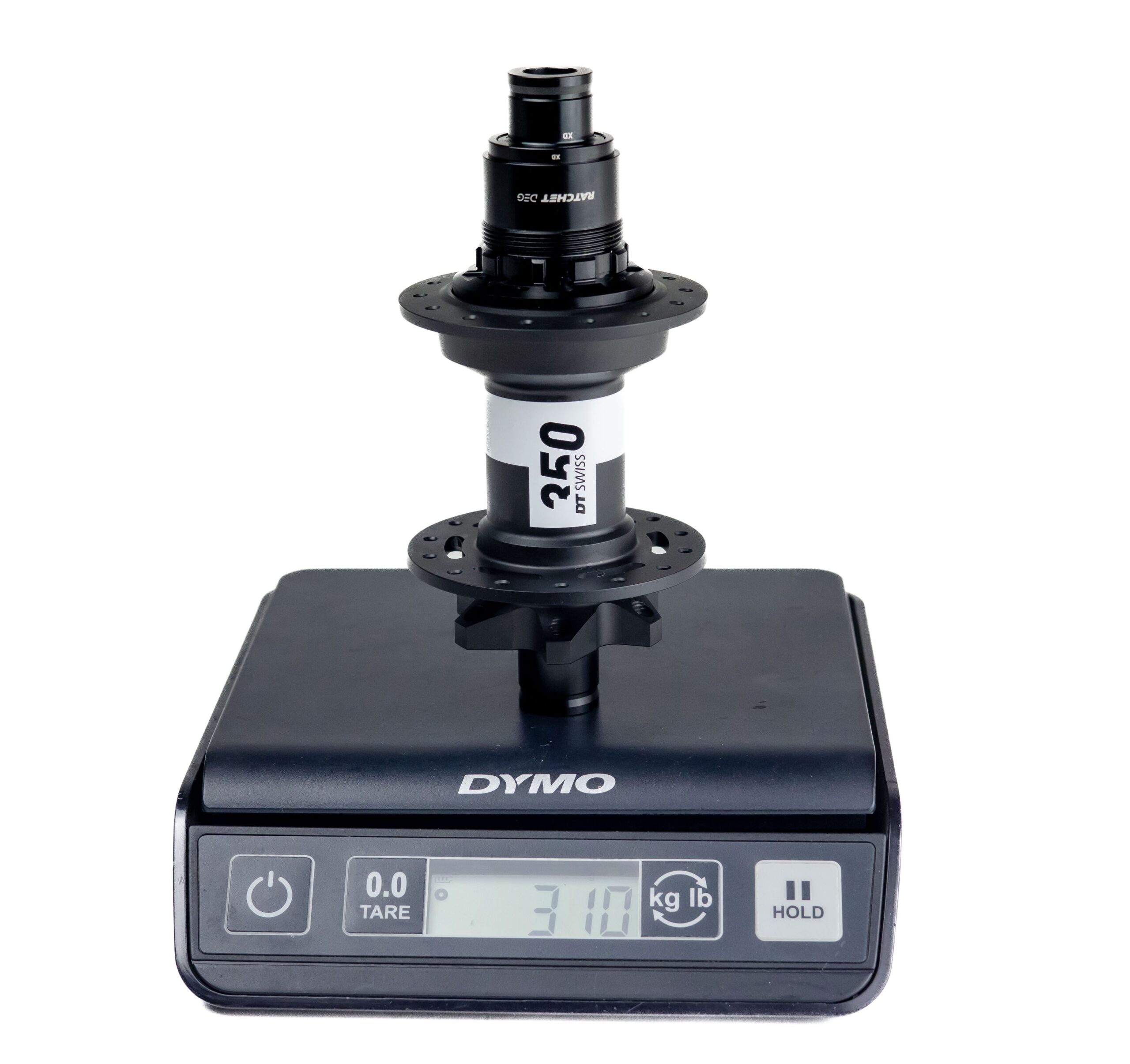

DT Swiss 350

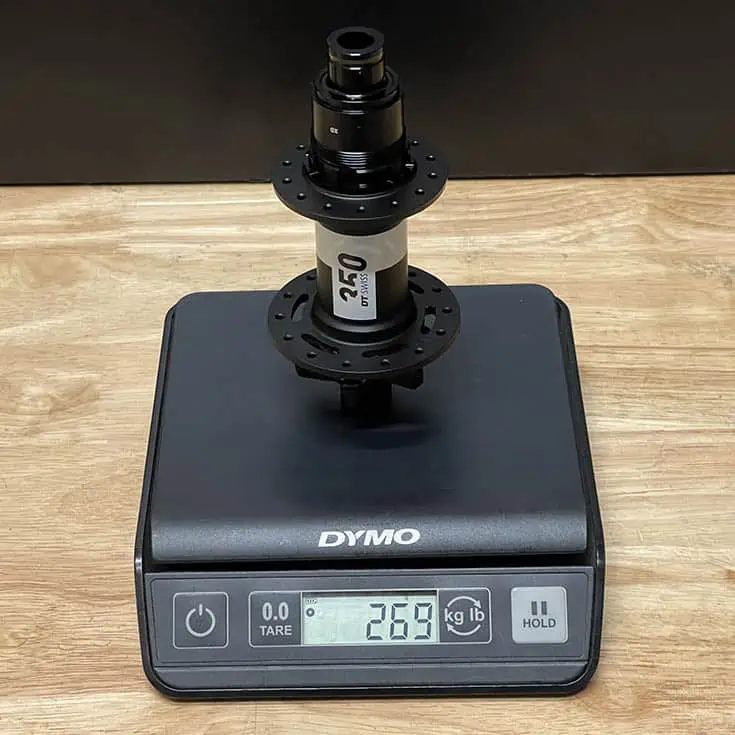

2022 DT Swiss 350 Hub, 6-Bolt, 148x12mm, Boost, XD ISO Rear Actual Hub Weight = 269g

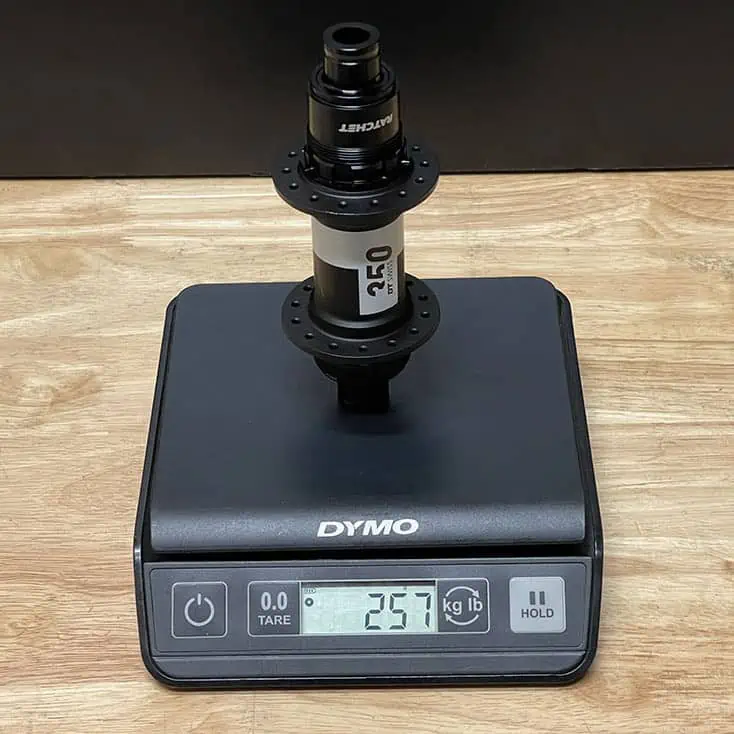

2022 DT Swiss 350 Hub, Centerlock, Boost, XD, Rear, Actual Hub Weight = 257g

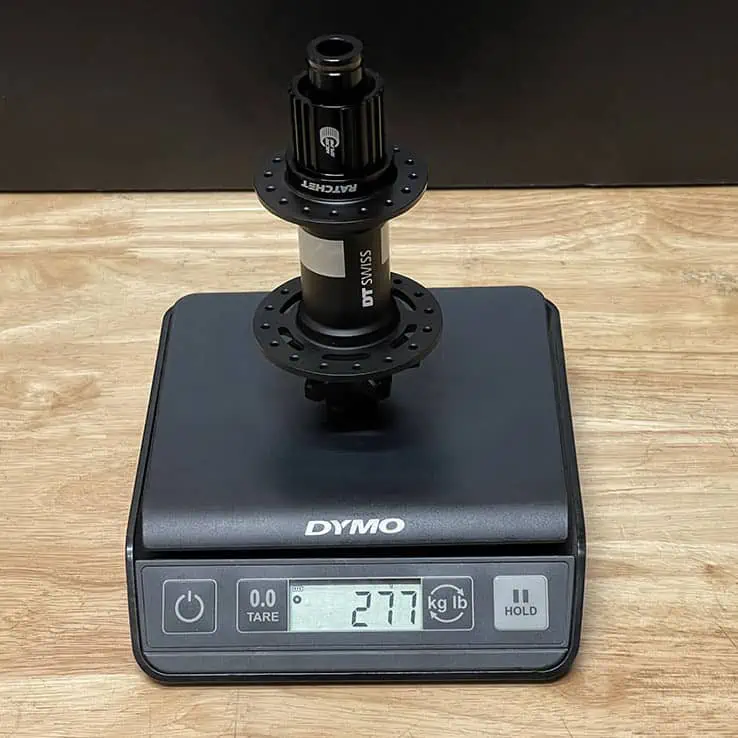

2022 DT Swiss 350 Hub, 6-Bolt, 148mm Boost, ISO MS Rear Actual Hub Weights = 277g

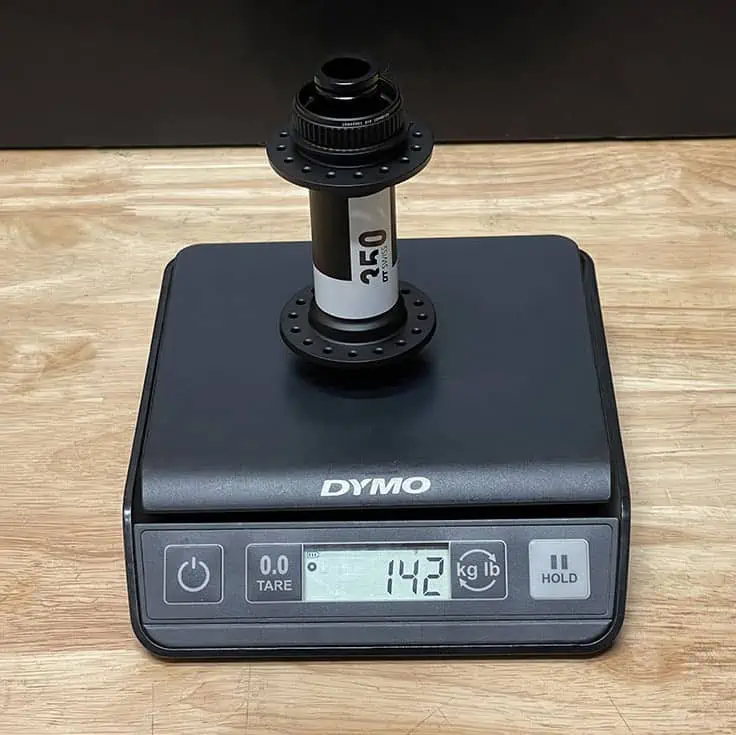

2022 DT Swiss 350 Hub, CL, Front Boost 110mm Actual Hub Weight = 142g

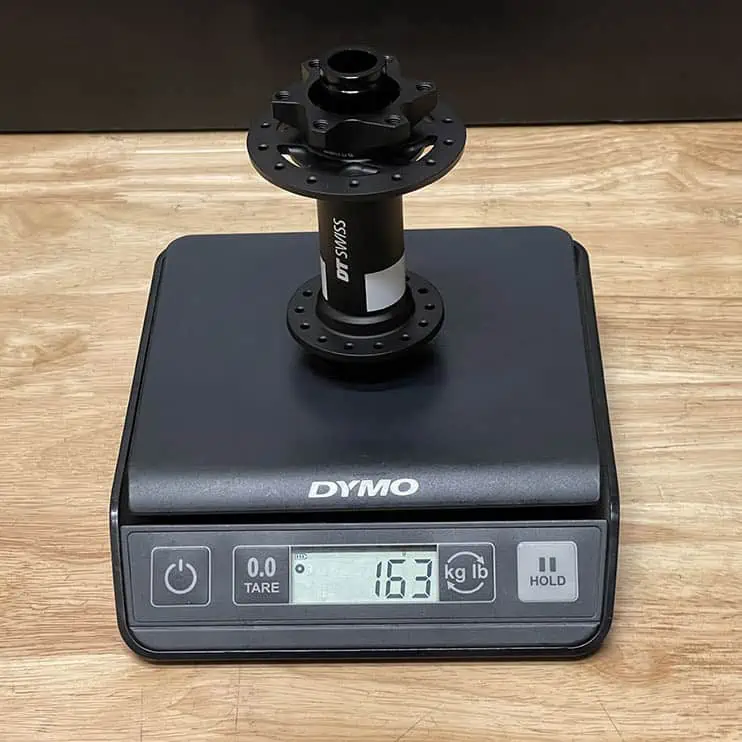

2022 DT Swiss 350 Hub, 6-Bolt, Front 110mm Boost Actual Hub Weight = 163g

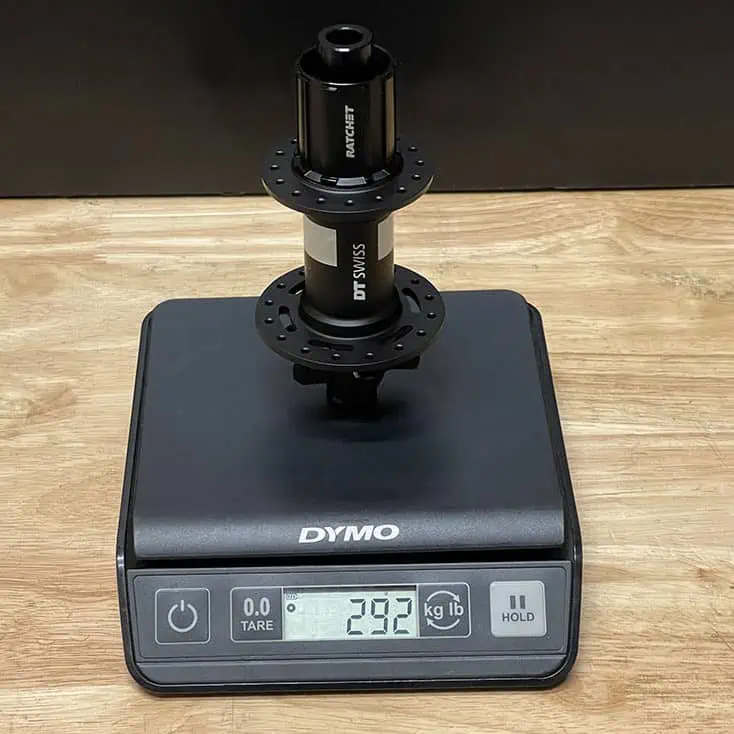

2022 DT Swiss 350 Hub, 6-Bolt, ISO HG 148mm Boost, Actual Hub Weights = 292g

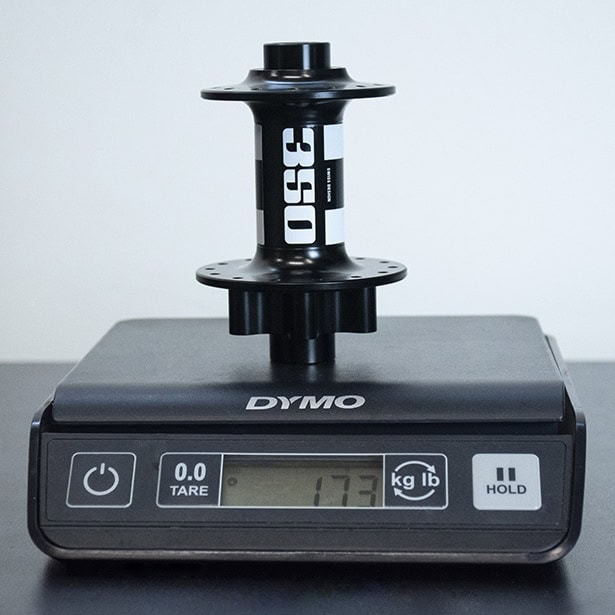

DT Swiss 350 Hub, 6-Bolt, Front 100mm Actual Hub Weight = 173g

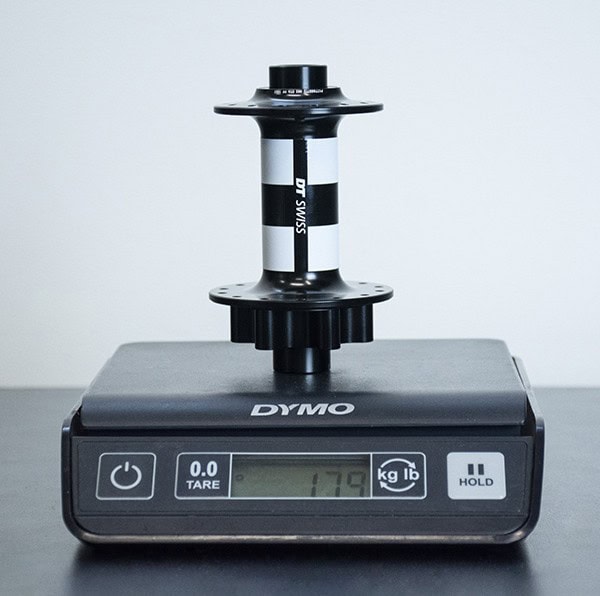

DT Swiss 350 Hub, 6-Bolt, Front 110mm Actual Hub Weight = 179g

DT Swiss 350 Hub, 6-Bolt, XD 142mm, Actual Hub Weights = 278g

DT Swiss 350, 6-bolt, HG 148mm Actual Hub Weight = 301g

DT Swiss 350 6-Bolt, Microspline HG Actual Hub Weight = 292g

DT Swiss 350 6-Bolt XD 148mm Actual Hub Weight = 274g

DT Swiss 350 6-bolt front hub Actual Weight 100x15mm = 171g

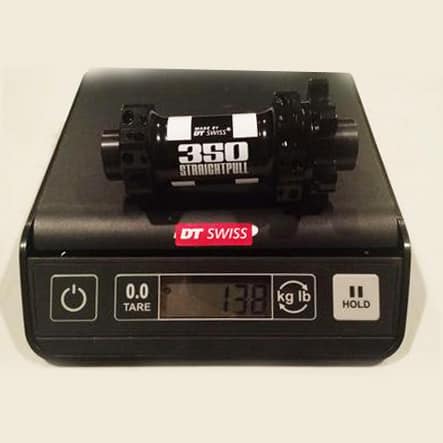

DT Swiss 350 Hub, 100×15, 6-bolt, Straight Pull = 138g

DT Swiss 350 Hub, 142×12 HG, 142×12, 6-bolt, Straight Pull = 275g

Chris King

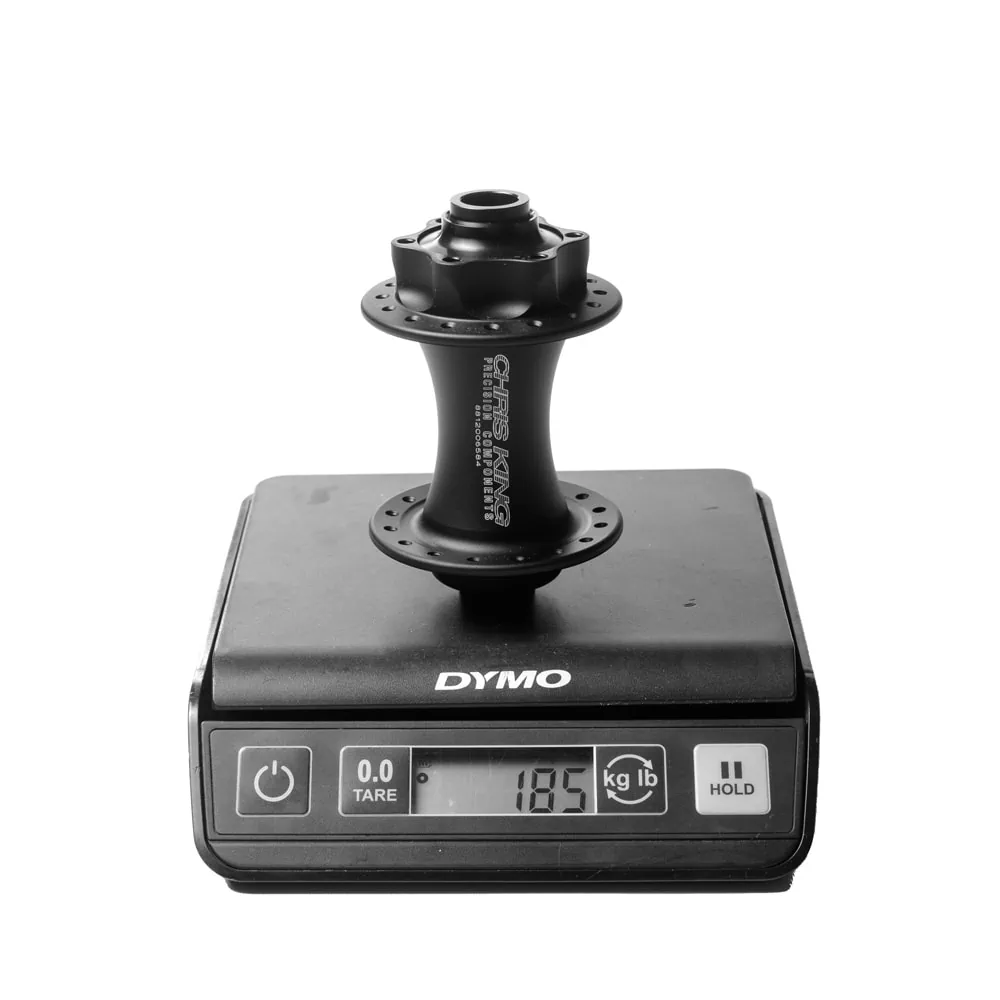

Chris King 6-bolt 2022 MTB MS 110x15mm Front Hub Actual Hub Weight = 185g

Chris_King_NOBL_6-Bolt_MS_Actual_Weight_Hub

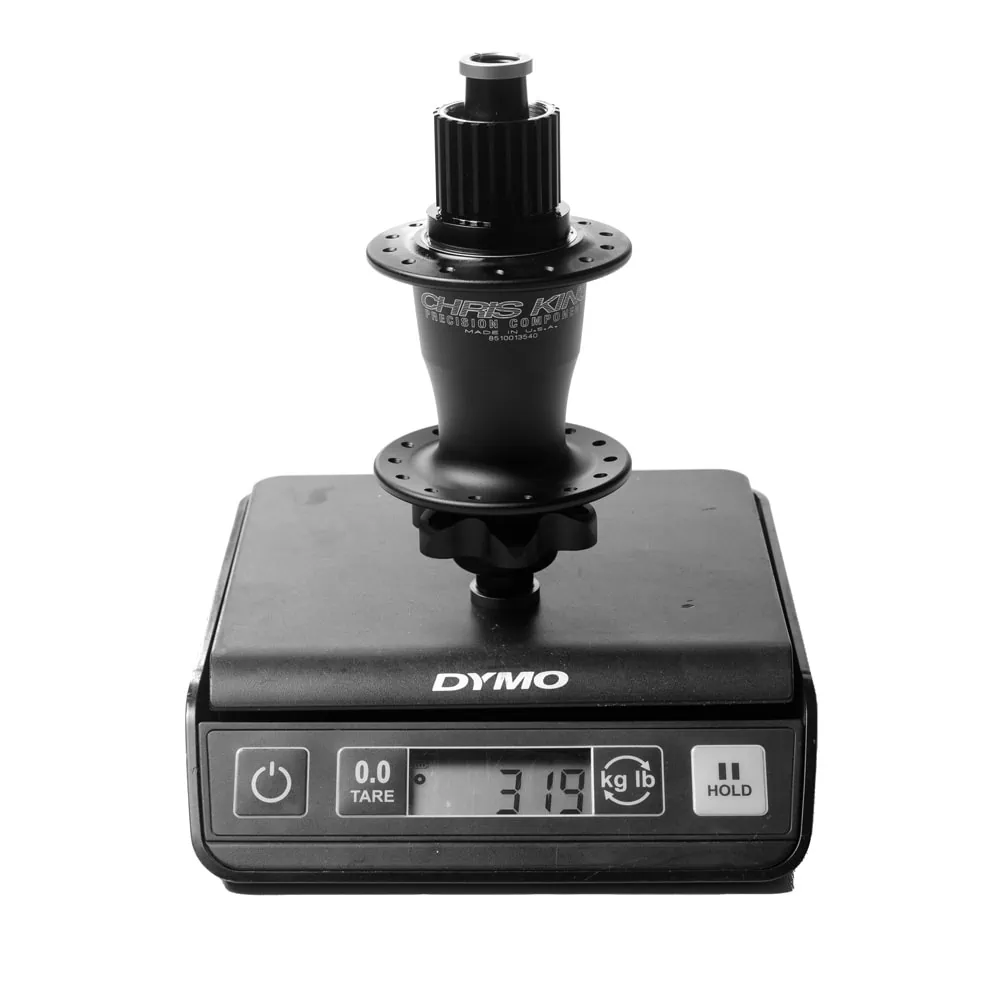

Chris King 6-bolt 2022 MTB MS 148X12 Rear Hub Actual Hub Weight = 319g

Chris_King_NOBL_6-Bolt_Rear_XD_Actual_Weight_Hub

Chris King 6-Bolt 2022 MTB XD 148X12 Actual Hub Weight = 311g

Chris_King_NOBL_6-Bolt_Rear_MS_Actual_Weight_Hub

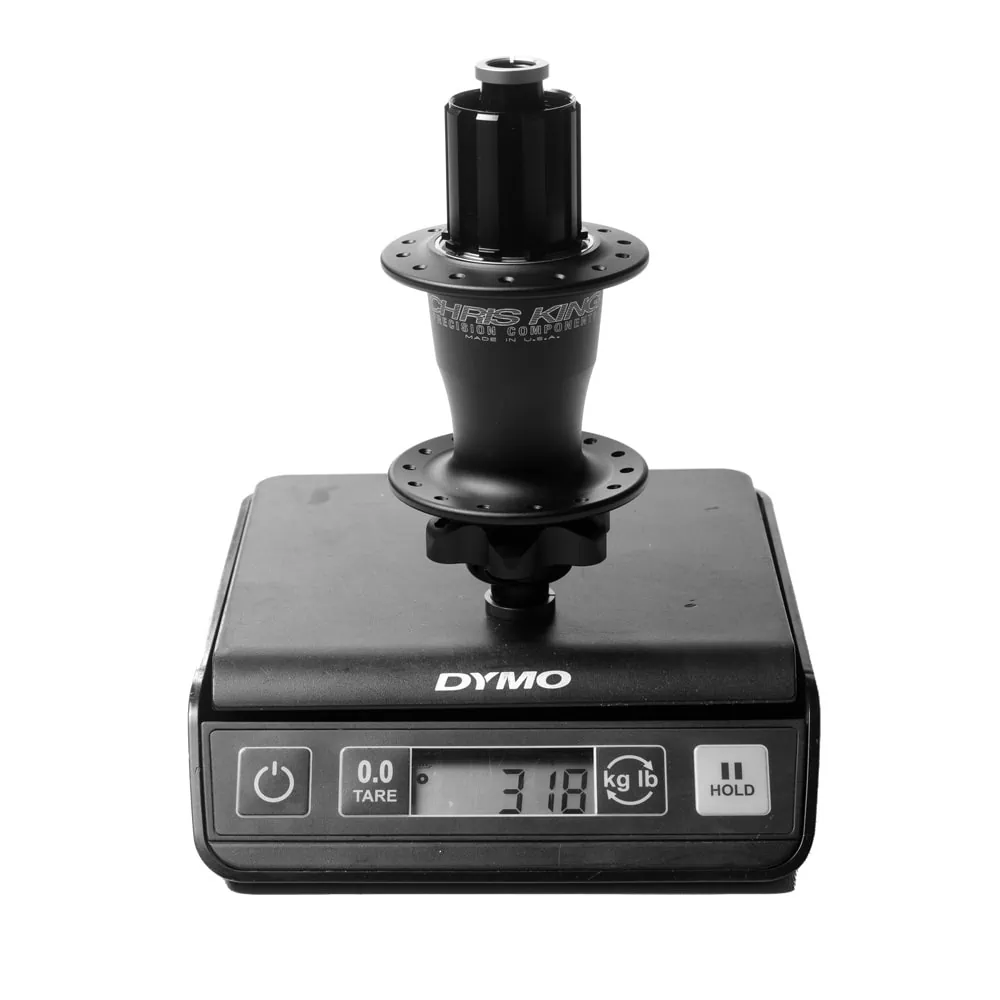

Chris King 6-Bolt 2022 MTB HG 148X12 Rear Hub Actual Hub Weight = 318g

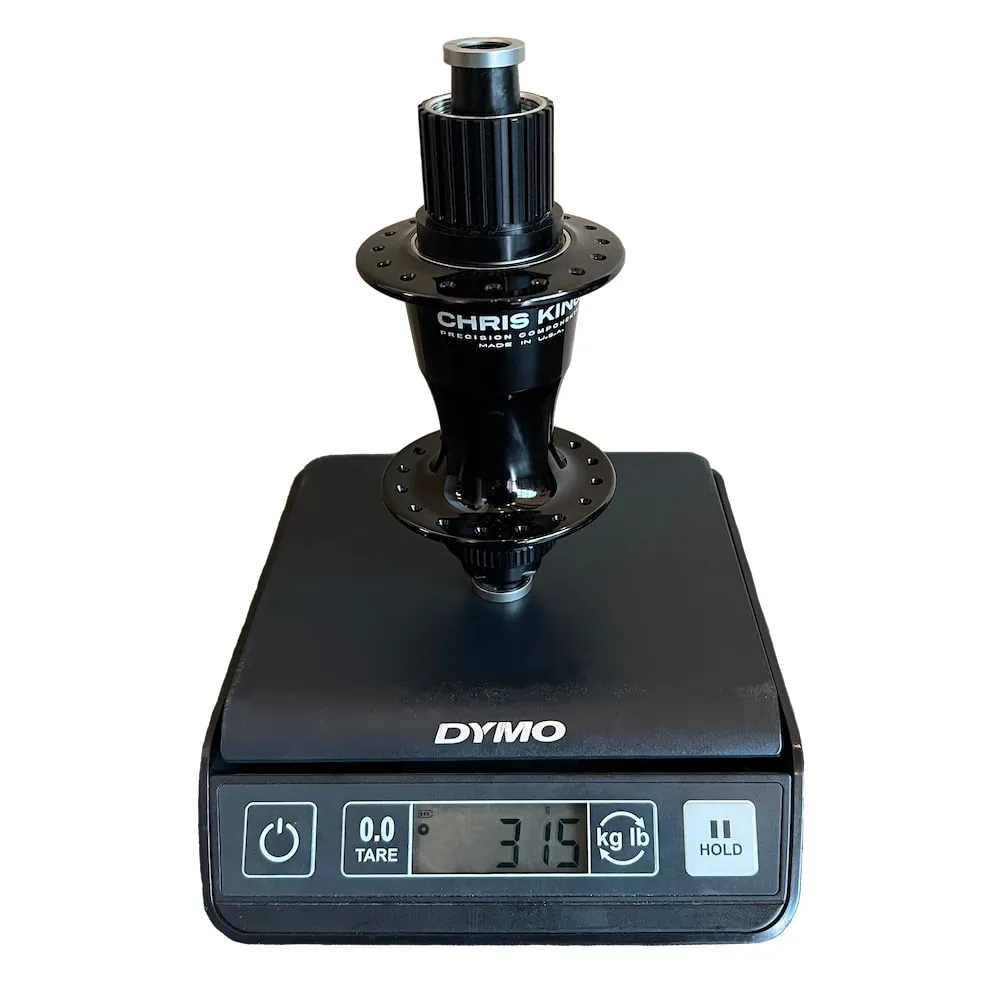

Chris King CL MTB MS 157X12 Rear Hub Actual Hub Weight = 315g

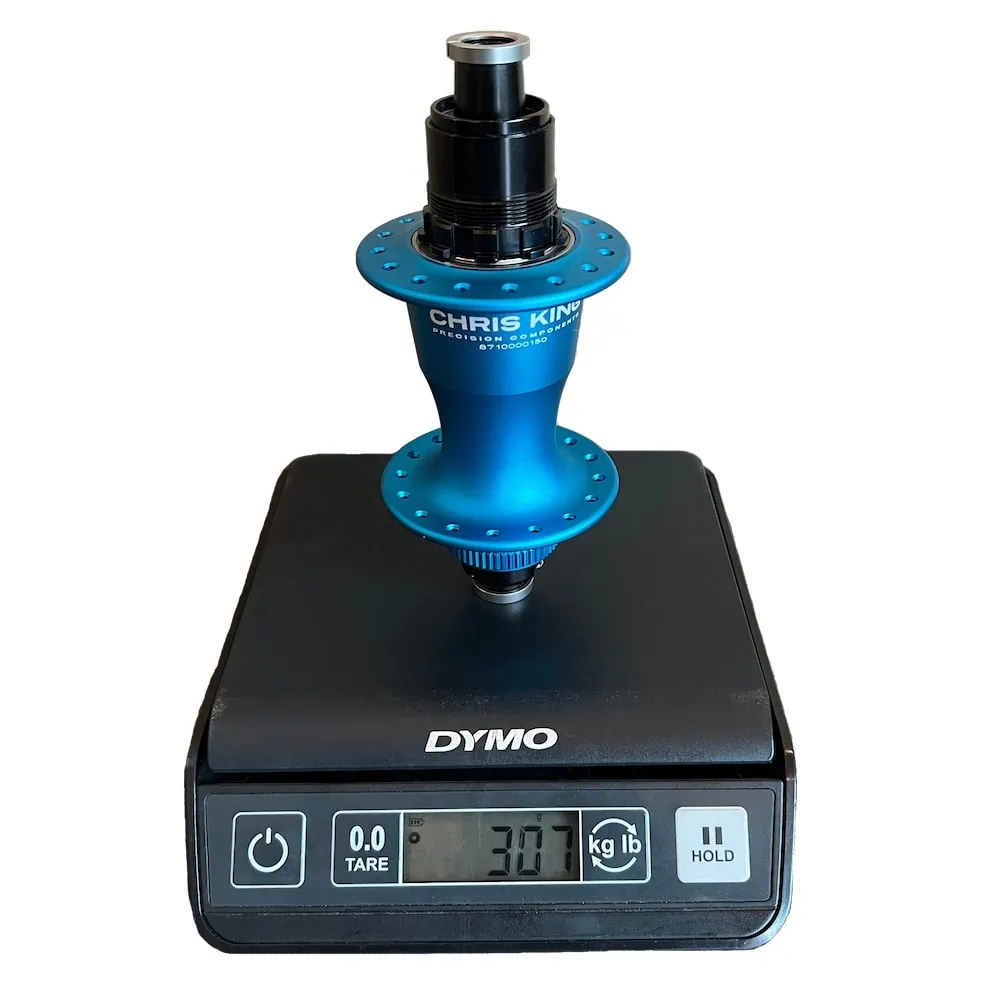

Chris King CL MTB XD 157X12 Actual Hub Weight = 307g

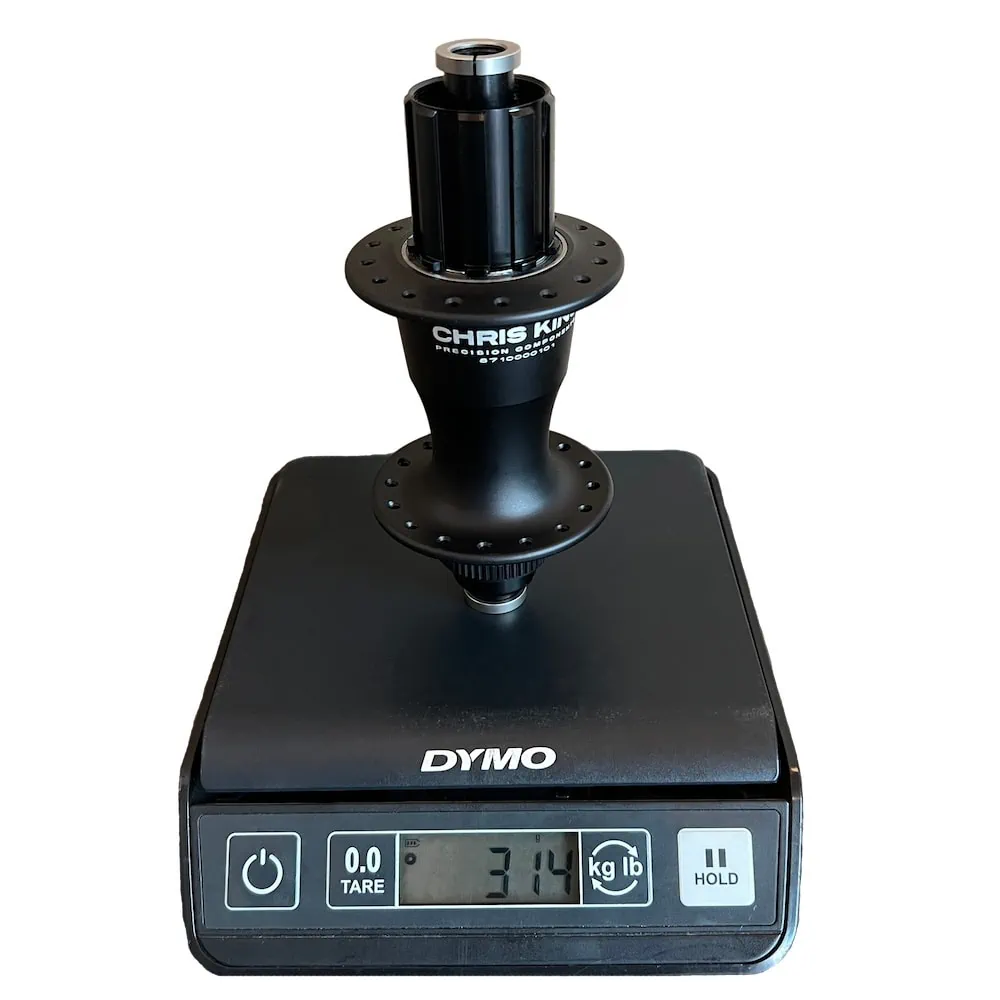

Chris King CL MTB HG 157X12 Rear Hub Actual Hub Weight = 314g

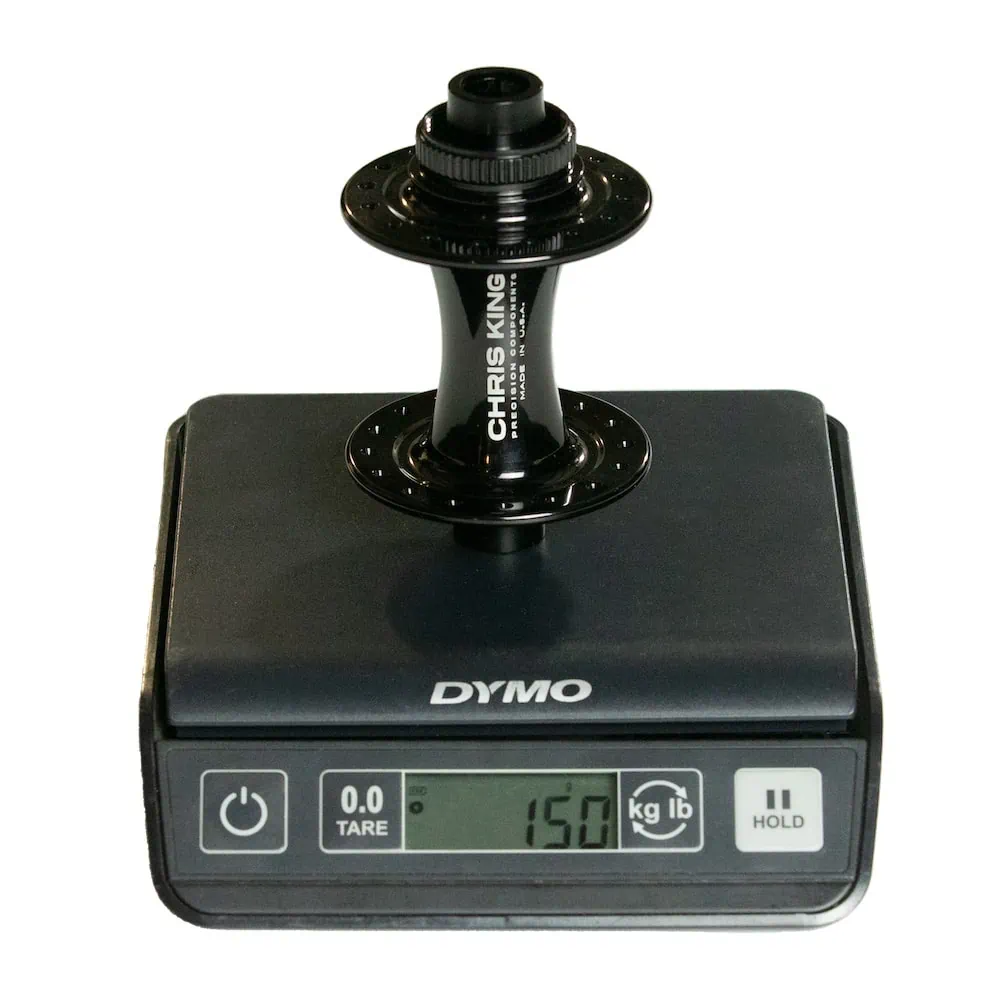

Chris King CL MTB 110X15 Front Hub Actual Hub Weight = 150g

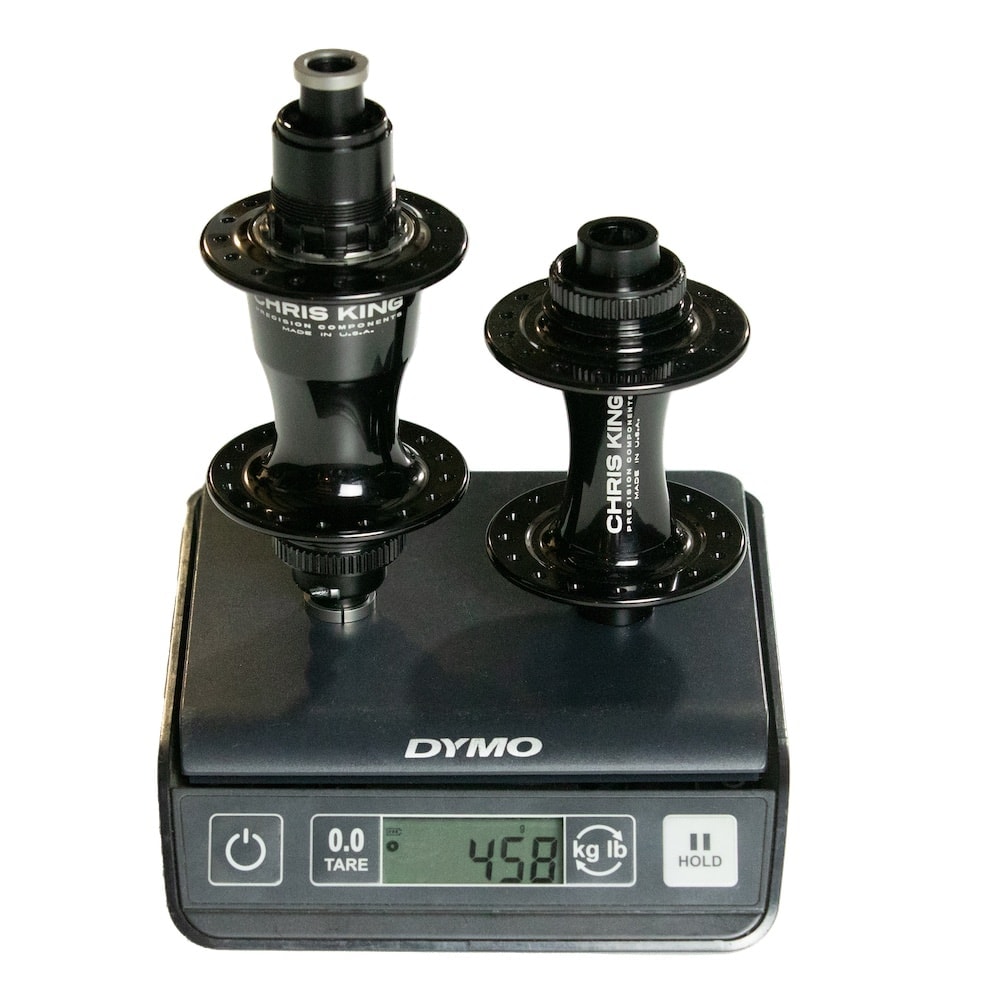

Chris King CL MTB Pair (XD) Actual Hub Weight = 458g

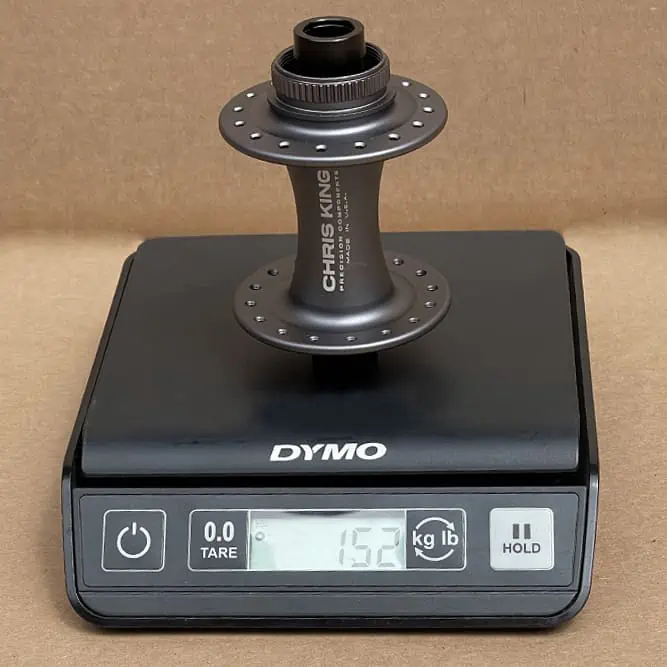

Chris King CL MTB 110X15 Front Hub Actual Hub Weight = 152g

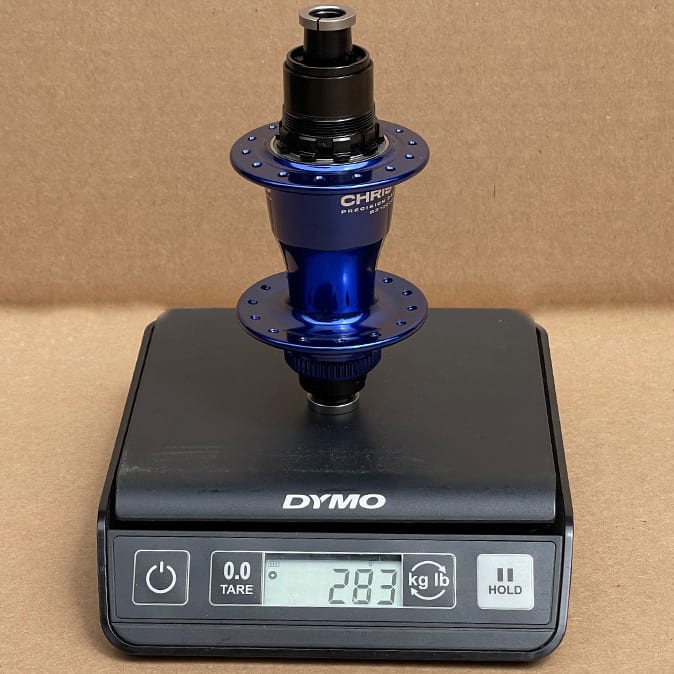

Chris King CL MTB XD 148X12 Actual Hub Weight = 283g

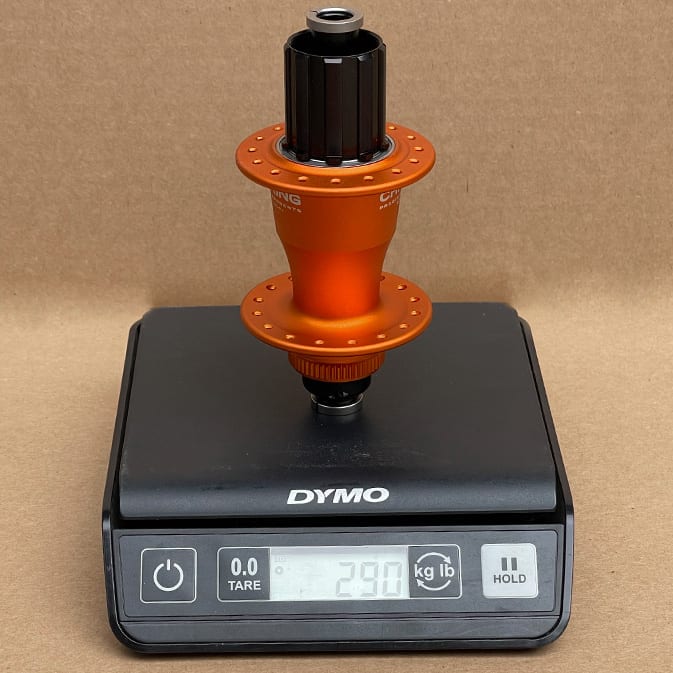

Chris King CL MTB HG 148X12 Rear Hub Actual Hub Weight = 290g

Chris King CL MTB Microspline 148X12 Rear Actual Hub Weight = 283g

Chris King CL Road XDR 142X12 Rear Hub Actual Hub Weight = 257g

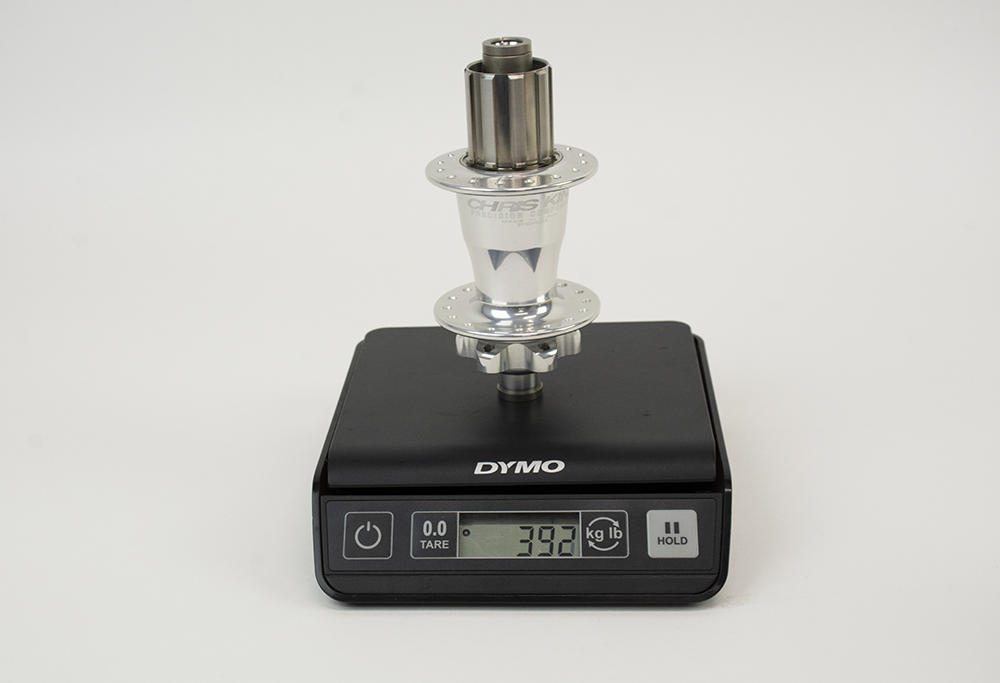

Chris King Actual Hub Weight 142×12 XD Steel Freehub = 352g

Chris King Actual Hub Weight 110x20mm = 213g

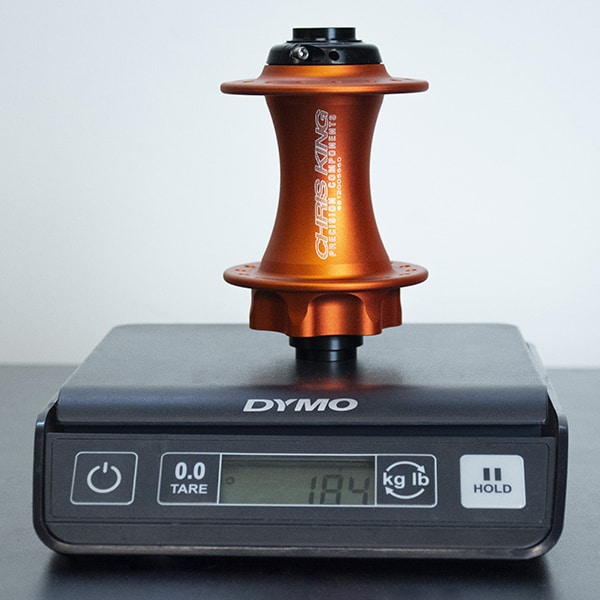

Chris King 110 Front Hub Actual Hub Weight = 184g

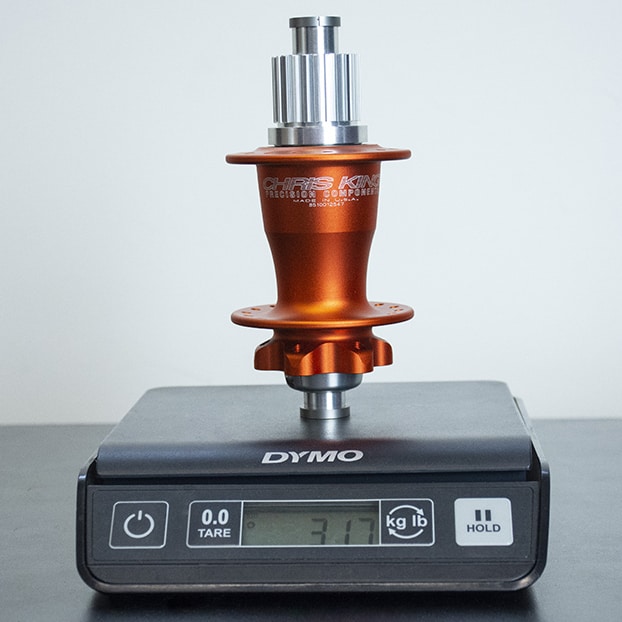

Chris King HG Steel 148mm Actual Hub Weight = 317g

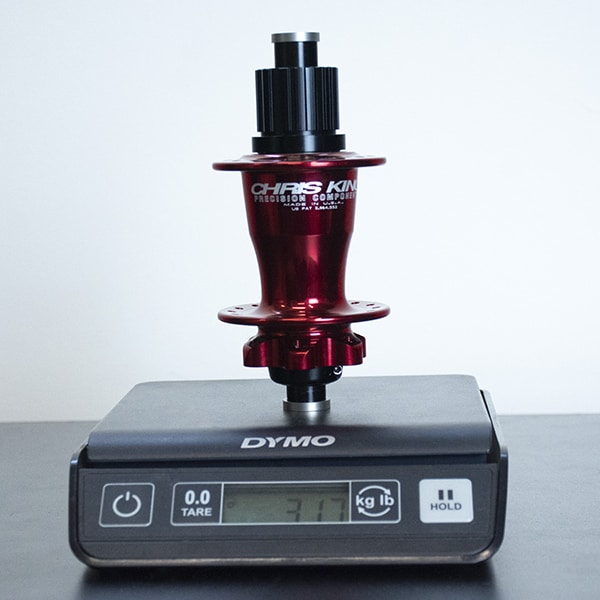

Chris King 148mm HG Rear Actual Hub Weight = 317g

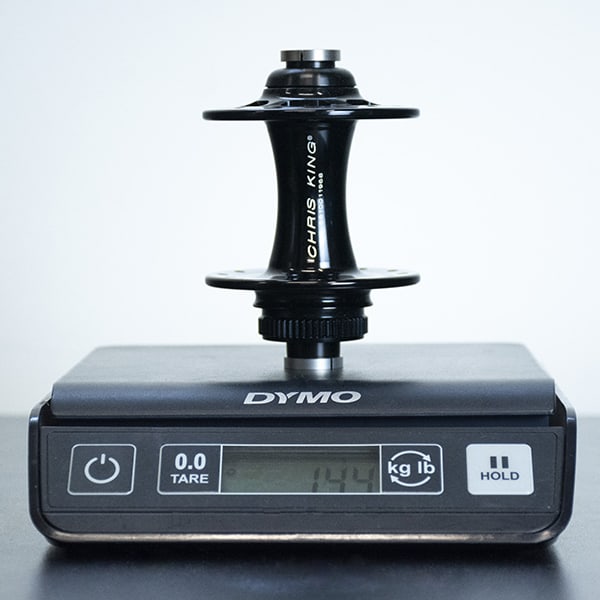

Chris King Road CL Front 100mm Actual Hub Weight = 144g

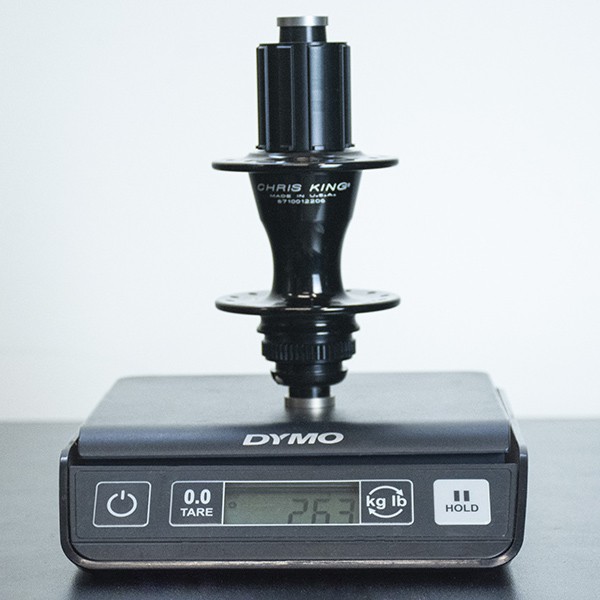

Chris King Road CL HG 142mm Rear Actual Hub Weight = 263g

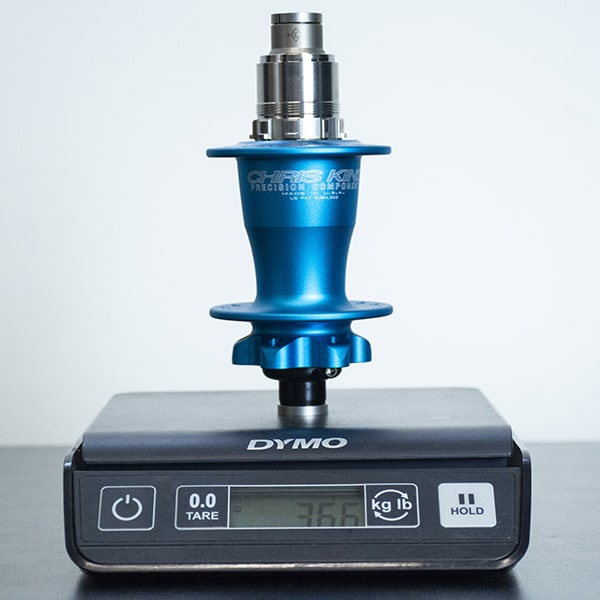

Chris King 148mm XD Steel Actual Hub Weight = 366g

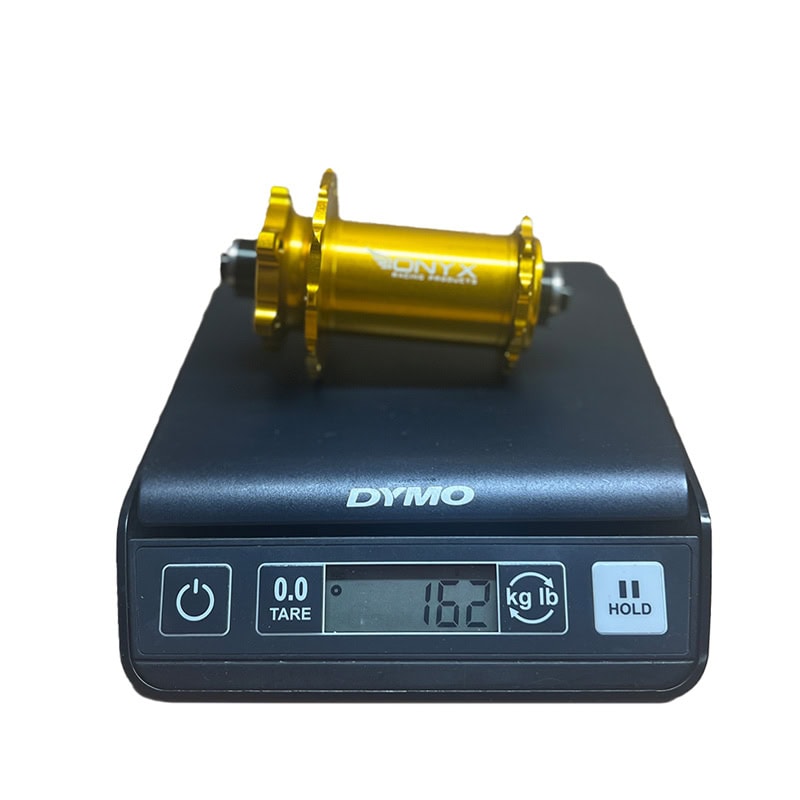

Onyx Hubs

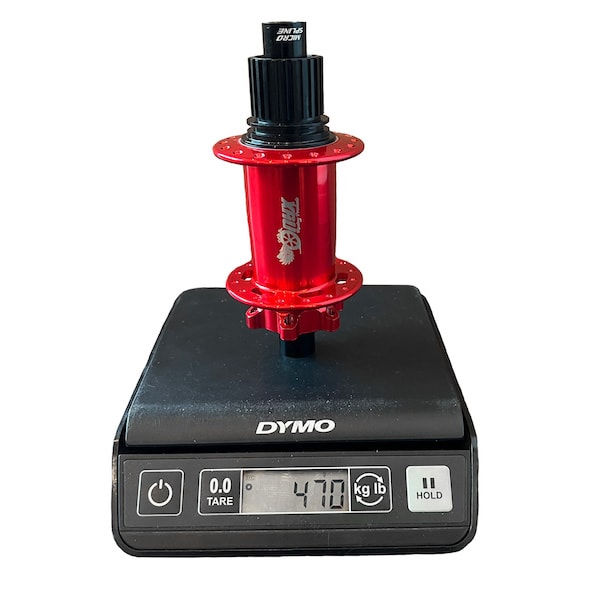

Onyx Classic 6-Bolt Boost 157x12mm MS Rear Actual Hub Weight = 470g

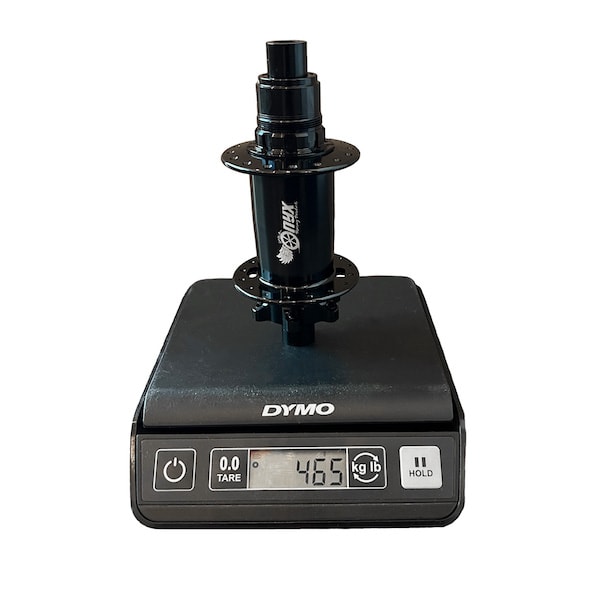

Onyx Classic Centerlock Boost 157x12mm XD Rear Actual Hub Weight = 465g

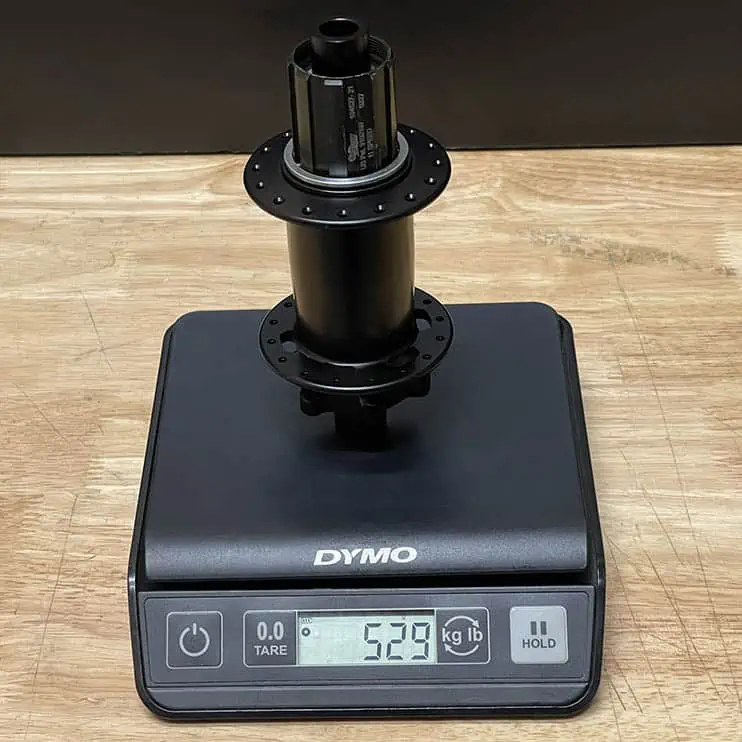

Onyx Classic 6-Bolt Boost 157x12mm HG Steel Rear Actual Hub Weight = 529g

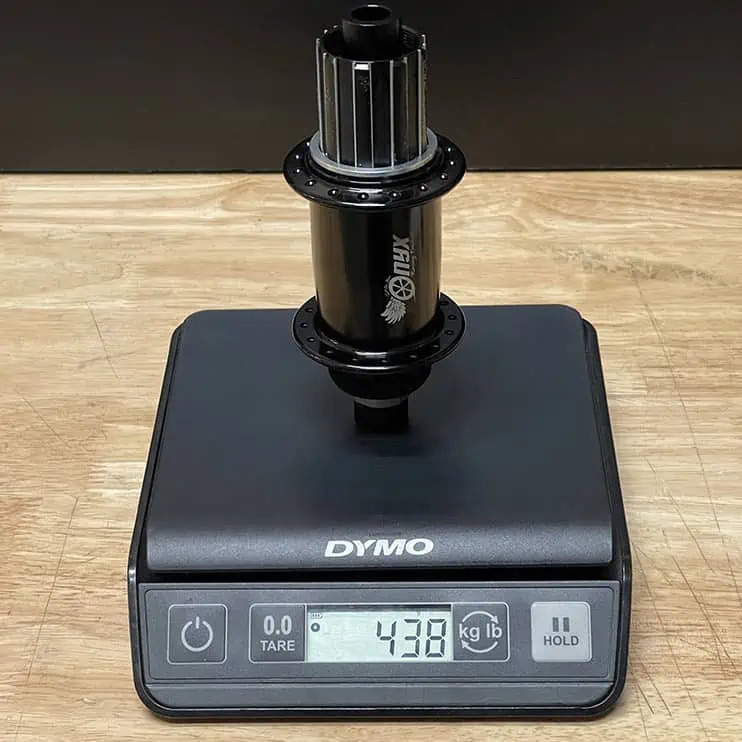

Onyx Classic Centerlock Boost 148x12mm Microspline (MFU) Alloy Rear Actual Hub Weight = 438g

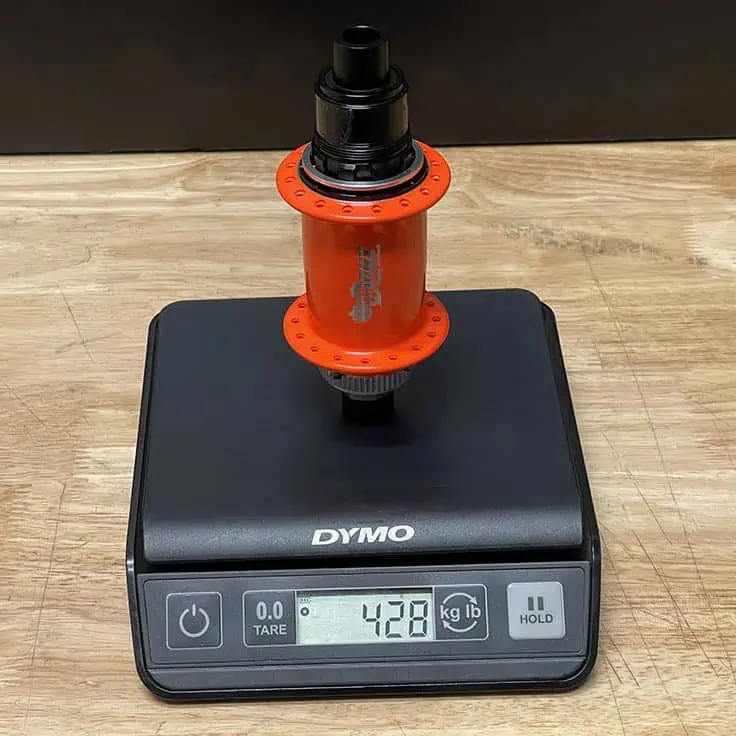

Onyx Classic Centerlock Boost 148x12mm XD Alloy Rear Actual Hub Weight = 428g

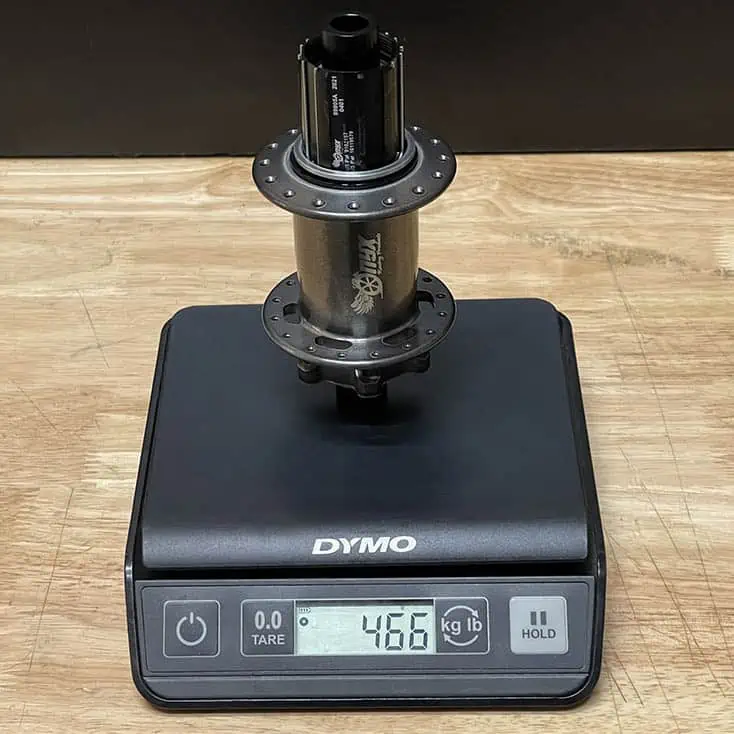

Onyx Classic 6-Bolt Boost 148x12mm HG Alloy Rear Actual Hub Weight = 466g

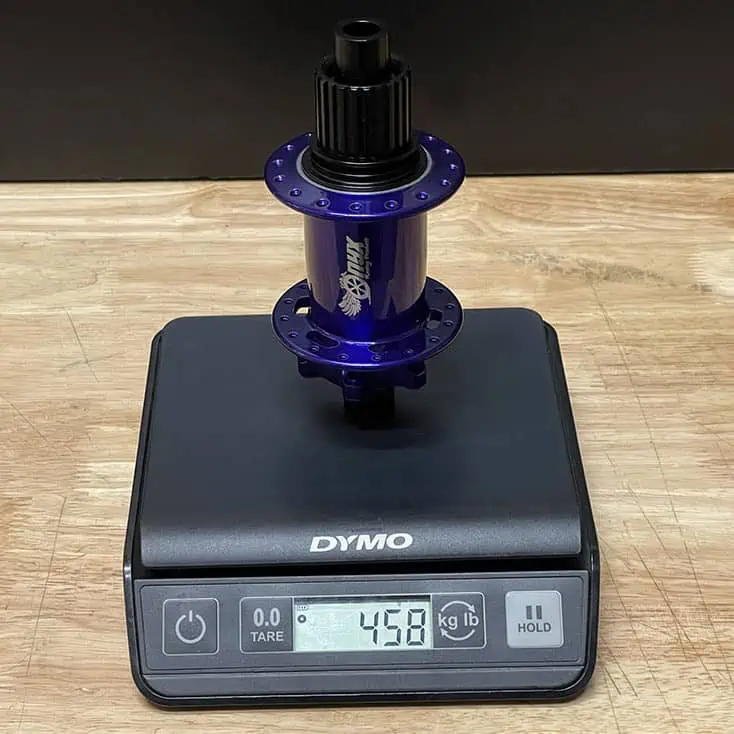

Onyx Classic 6-Bolt Boost 148x12mm Microspline Alloy (MFU) Rear Actual Hub Weight = 458g

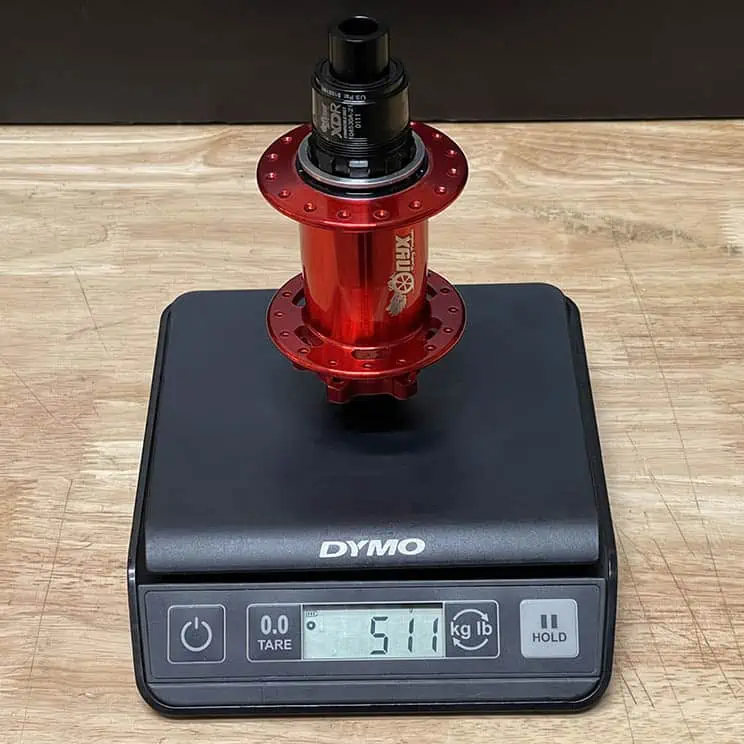

Onyx Classic 6-Bolt Boost 148x12mm XD Steel Rear Actual Hub Weight = 511g

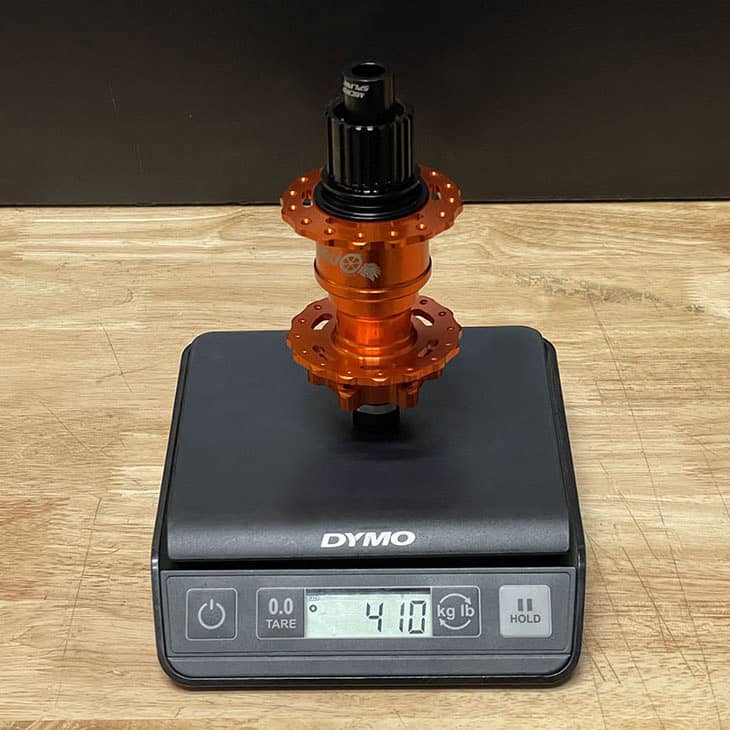

Onyx Vesper 6-Bolt Boost MS Rear Actual Hub Weight = 410g

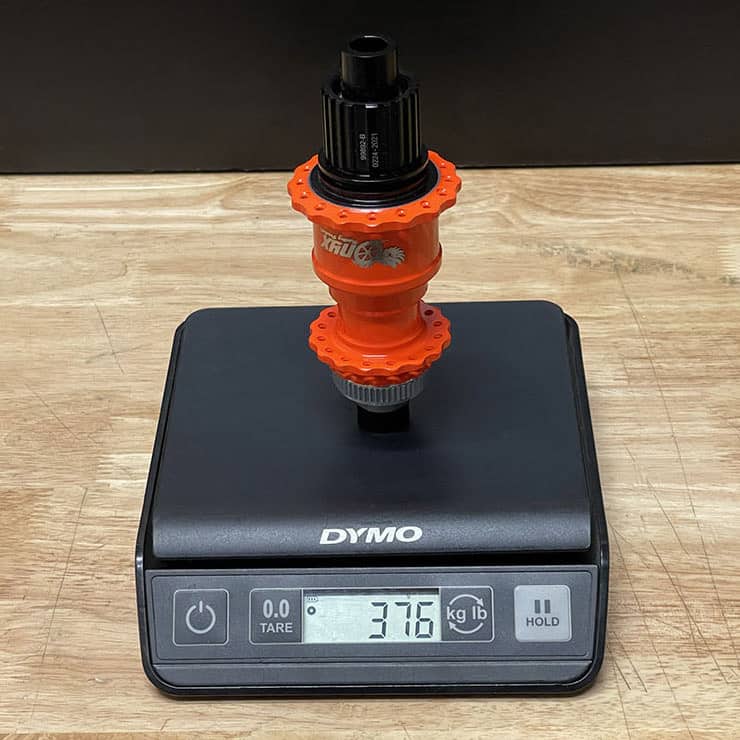

Onyx Vesper Centerlock Boost MS Rear Actual Hub Weight = 376g

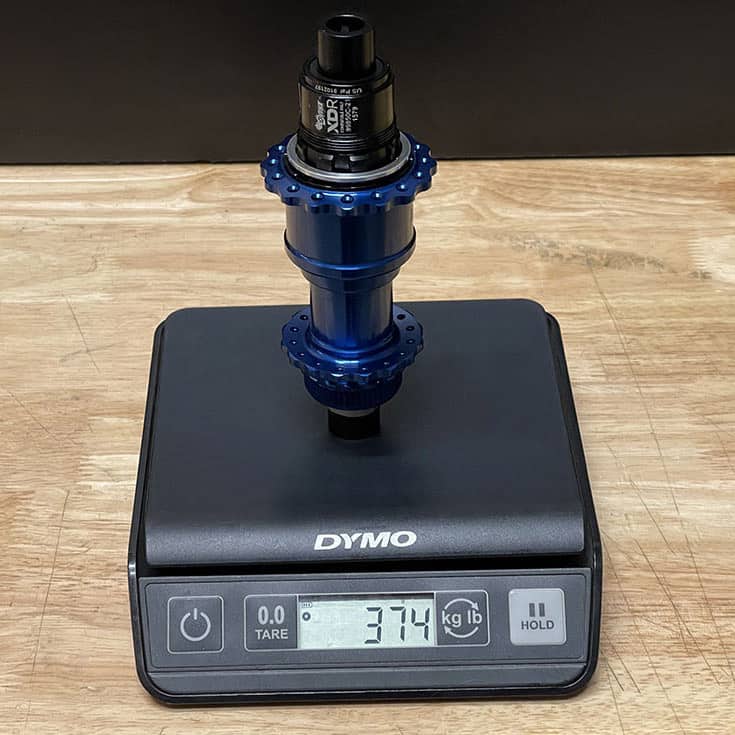

Onyx Vesper Centerlock Boost XD Rear Actual Hub Weight = 374g

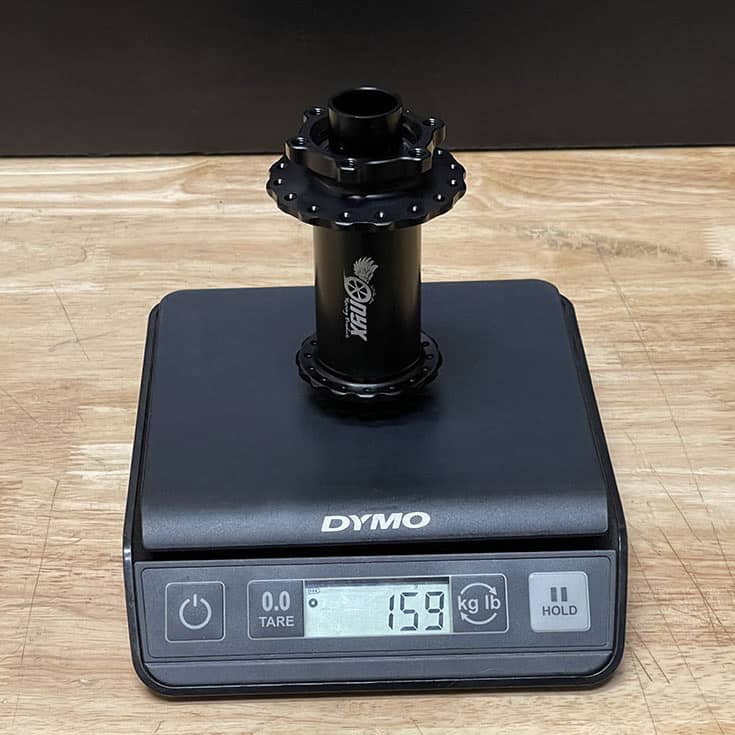

Onyx Vesper 6-Bolt 110x20mm DH Front Actual Hub Weight = 159g

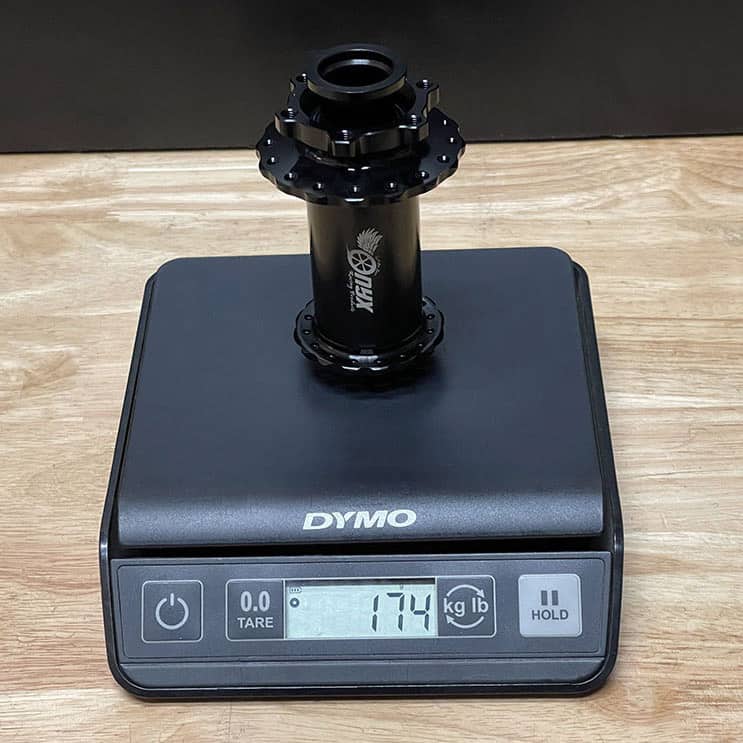

Onyx Vesper Torque 6-Bolt 110x15mm Front Actual Hub Weight = 174g

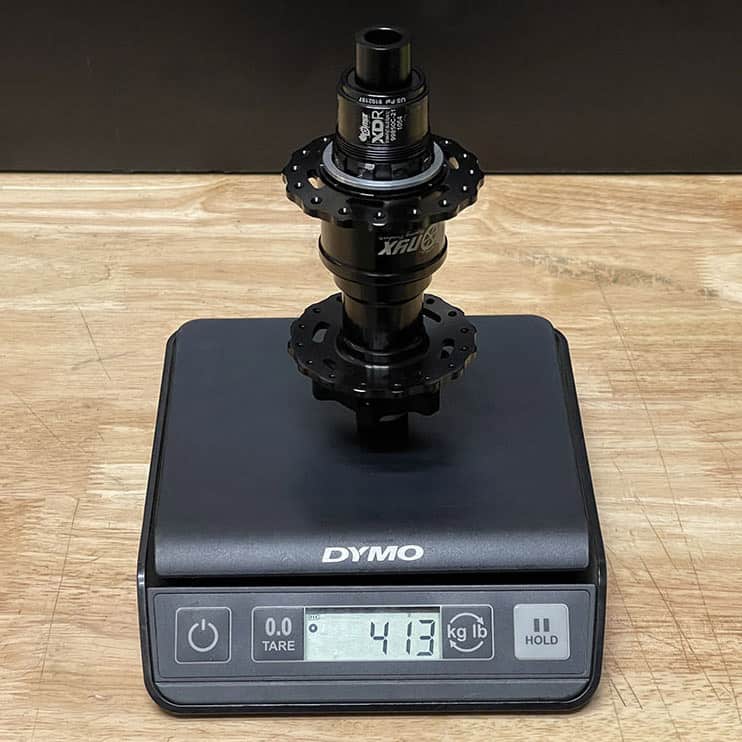

Onyx Vesper 6-Bolt Super Boost Rear 157x15mm Actual Hub Weight = 413g

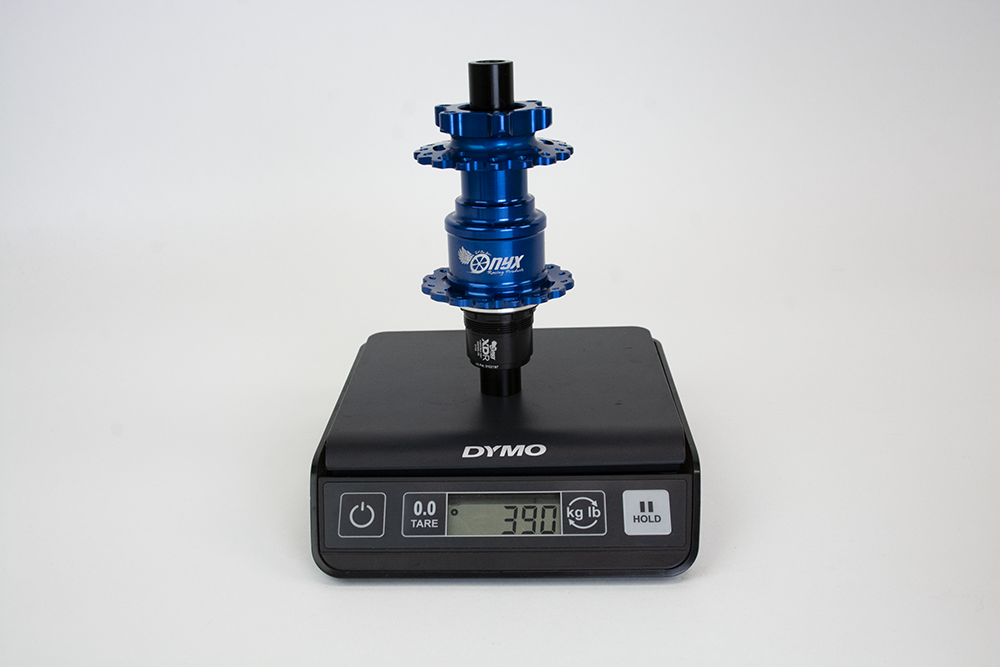

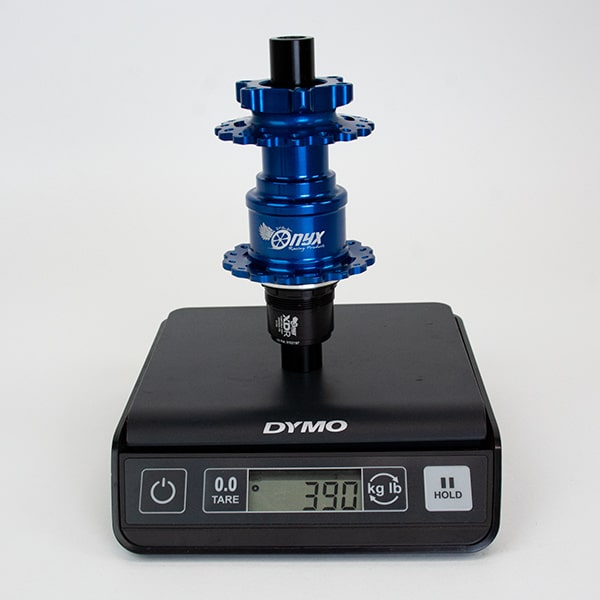

Onyx Vesper XDR 6-Bolt 148x12mm Rear Actual Hub Weight = 390g

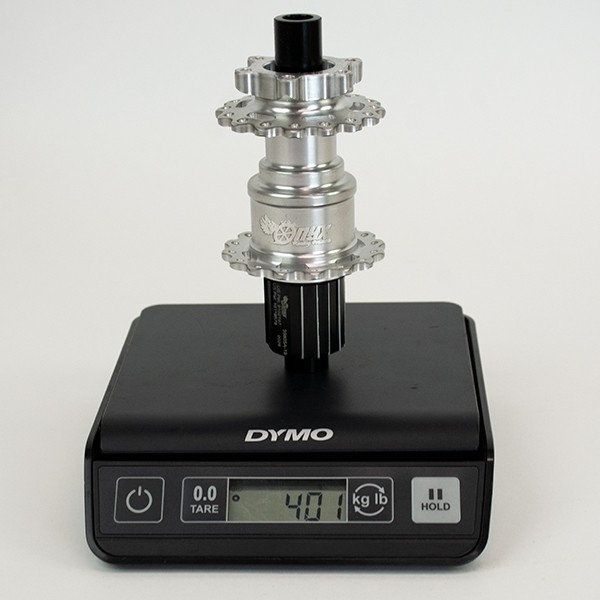

Onyx Vesper Shimano HG 6-Bolt 148x12mm Rear Actual Hub Weight = 401g

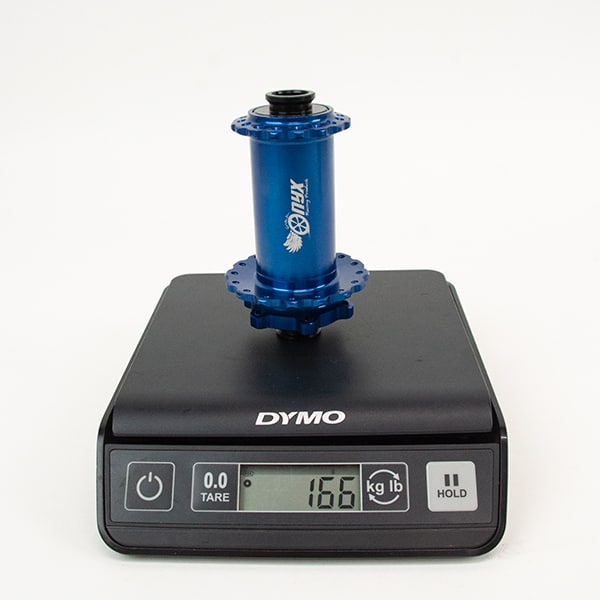

Onyx Vesper 6-Bolt 110x15mm Front Actual Hub Weight = 166g

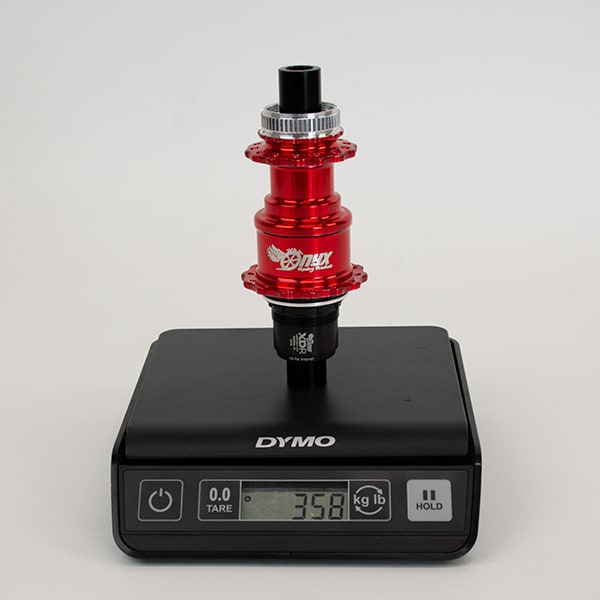

Onyx Vesper XDR Centerlock 148x12mm Rear Actual Hub Weight = 358g

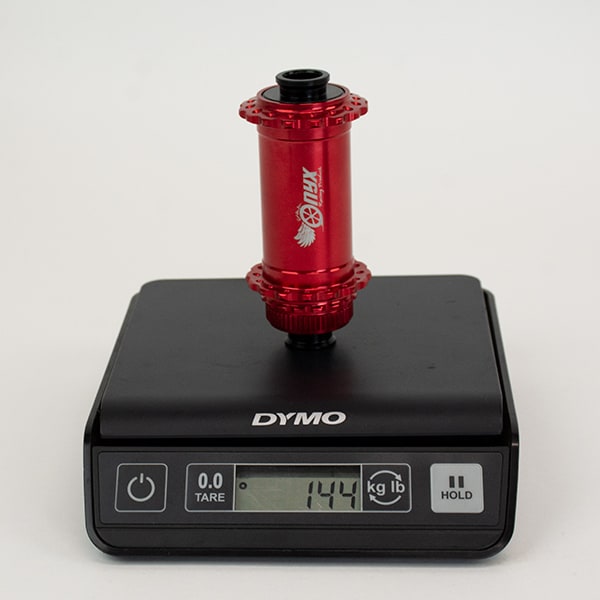

Onyx Vesper Centerlock 110x15mm Front Actual Hub Weight = 144g

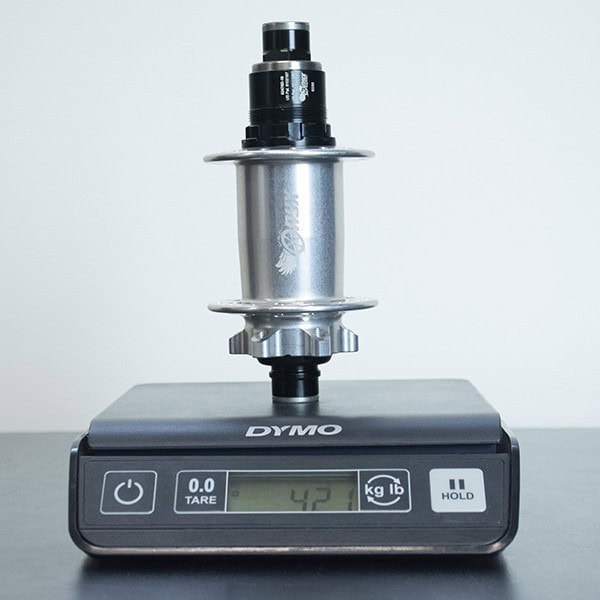

Onyx Classic 6-Bolt 148mm Rear XD Actual Hub Weight = 421g

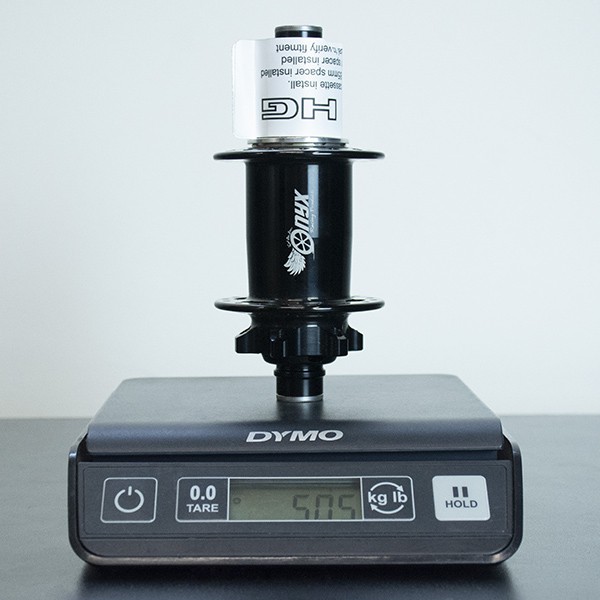

Onyx Classic Rear 148mm Steel HG Actual Hub Weight = 505g

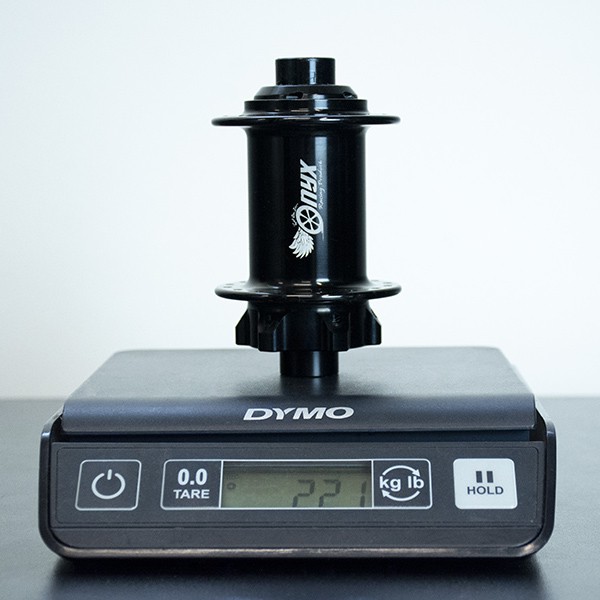

Onyx Classic 6-Bolt 110x15mm Front Actual Hub Weight = 221g

Onyx 100×15 = 213g

Onyx 142×12 XD = 461g

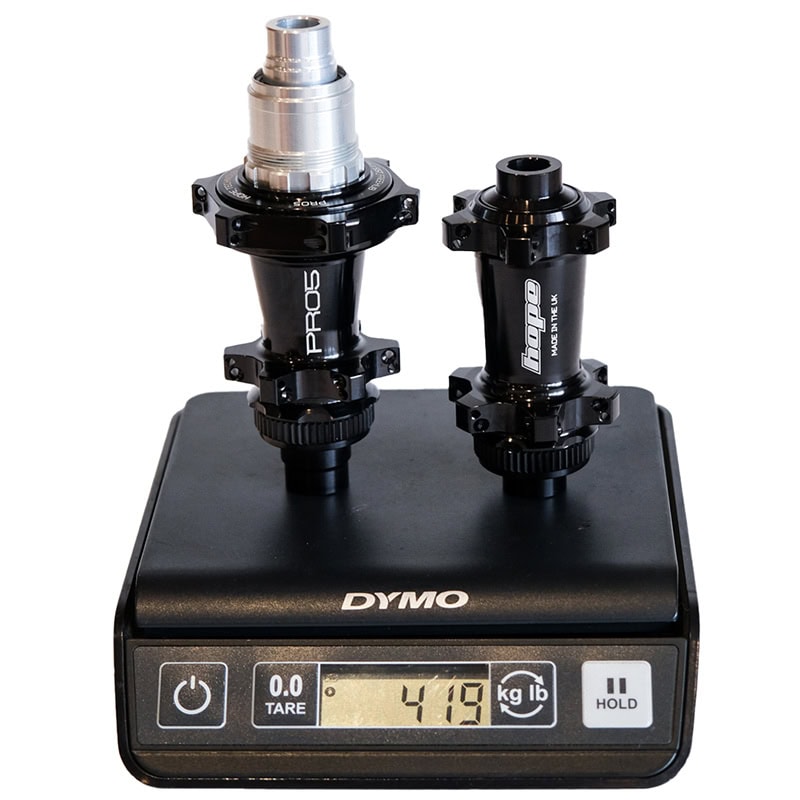

Hope

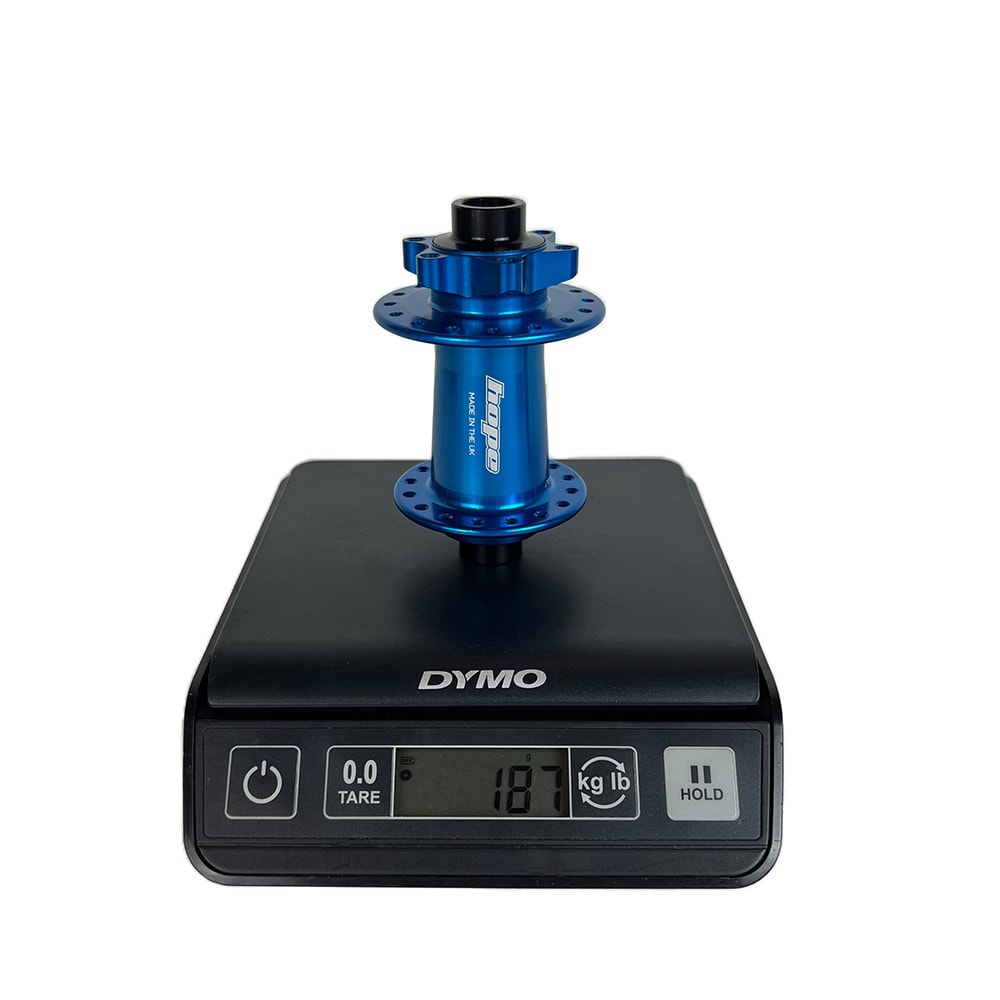

Hope Pro 5 Front 110mm Actual Hub Weight = 187g

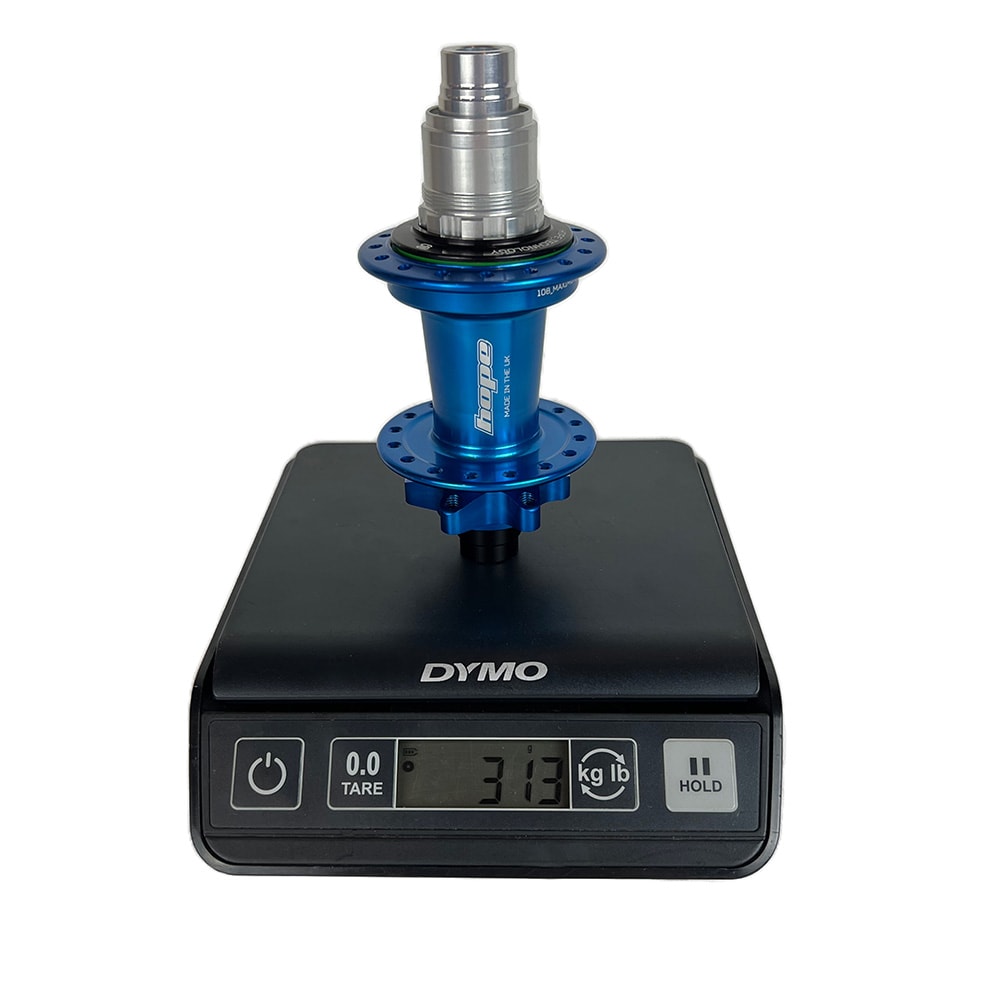

Hope Pro 5 Rear XD 148mm Actual Hub Weight = 313g

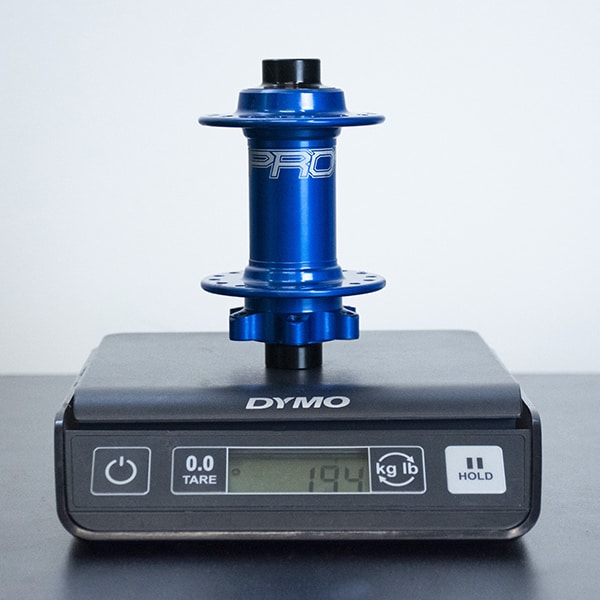

Hope Pro 4 Front 110mm = 194g

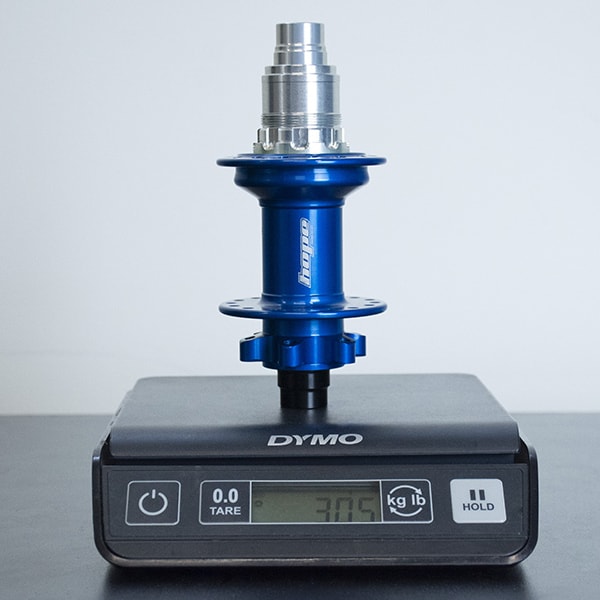

Hope Pro 4 Rear XD 148mm = 305g

Hope Pro 2 EVO 100×15 = 179g

Hope Pro 2 EVO 142×12 HG = 307g

Hope Pro 2 EVO 142×12 XD = 294g

White Industry

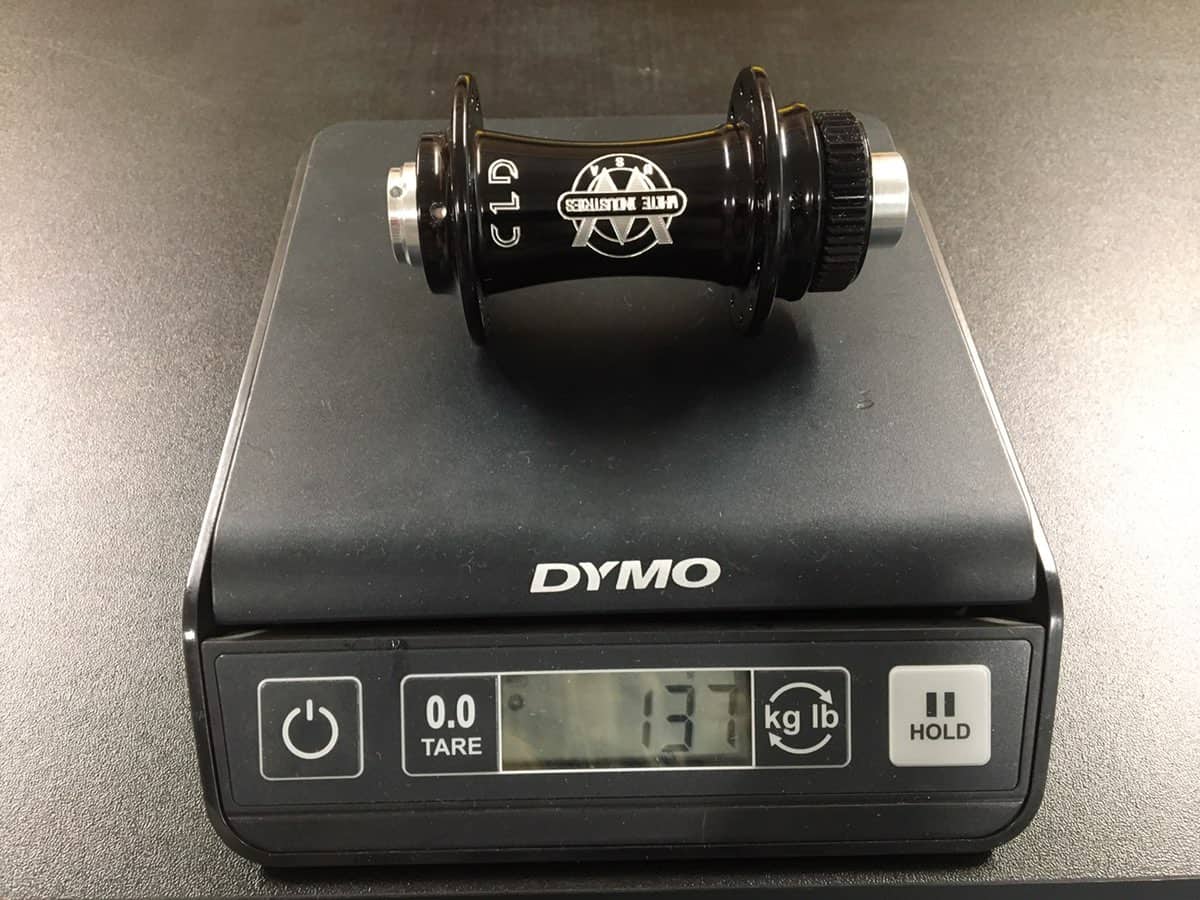

White Industries CLD Centerlock 100x12mm Front Actual Hub Weight = 137g

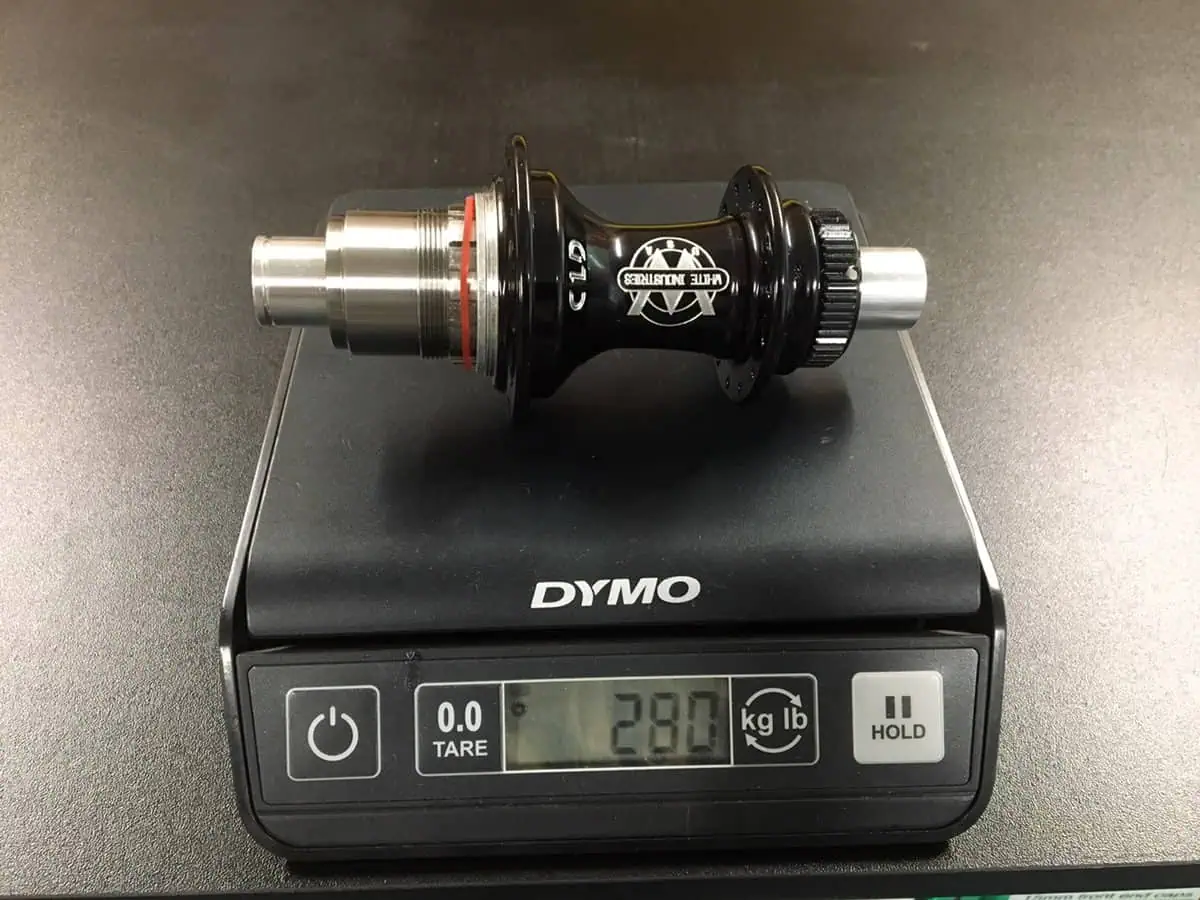

White Industries CLD Centerlock 142×12 mm XD Rear Actual Hub Weight = 280g

Shimano XTR

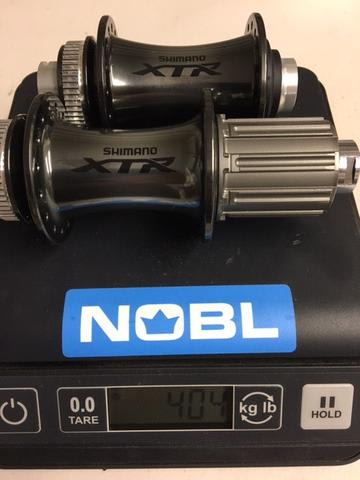

Shimano XTR Centerlock Hubset, 142×12 HG, 100×15, = 404g

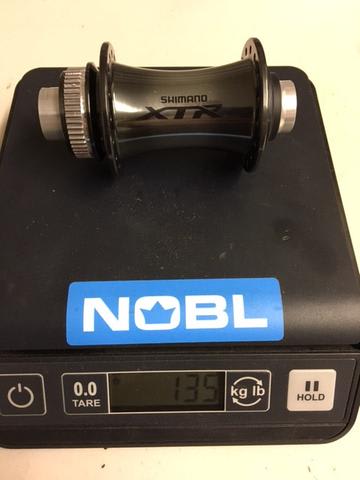

Shimano XTR Centerlock Hub actual weight 100×15 = 135g

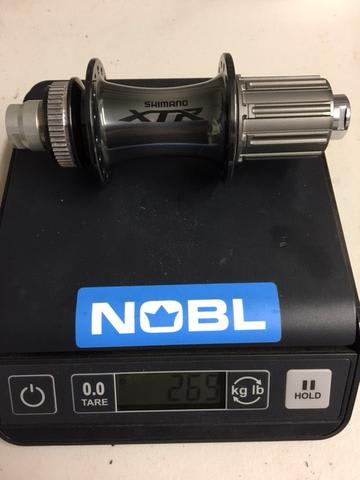

Shimano XTR Centerlock Hub actual weight 142×12 = 269g

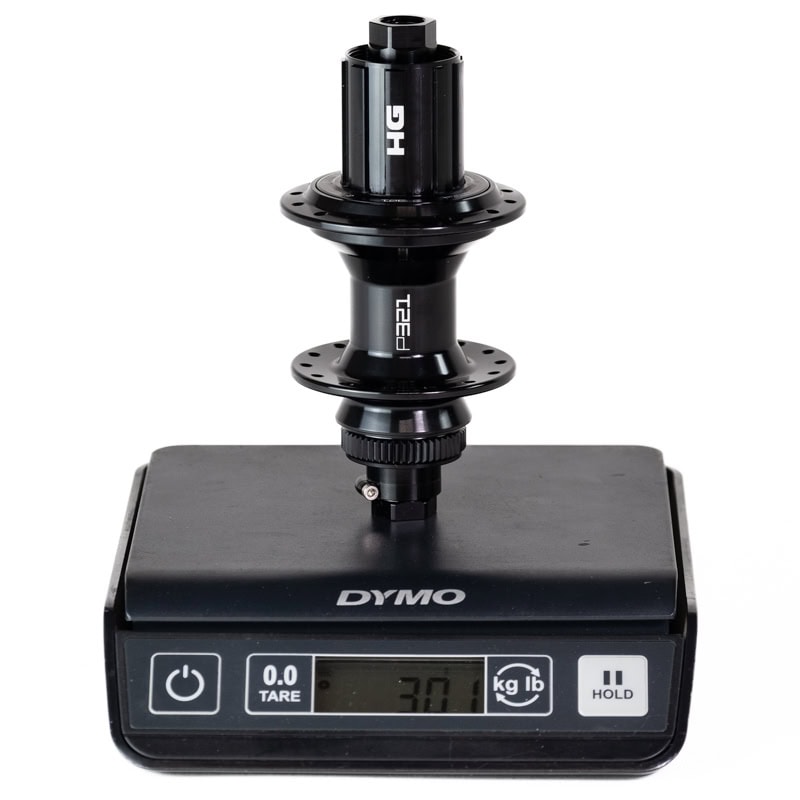

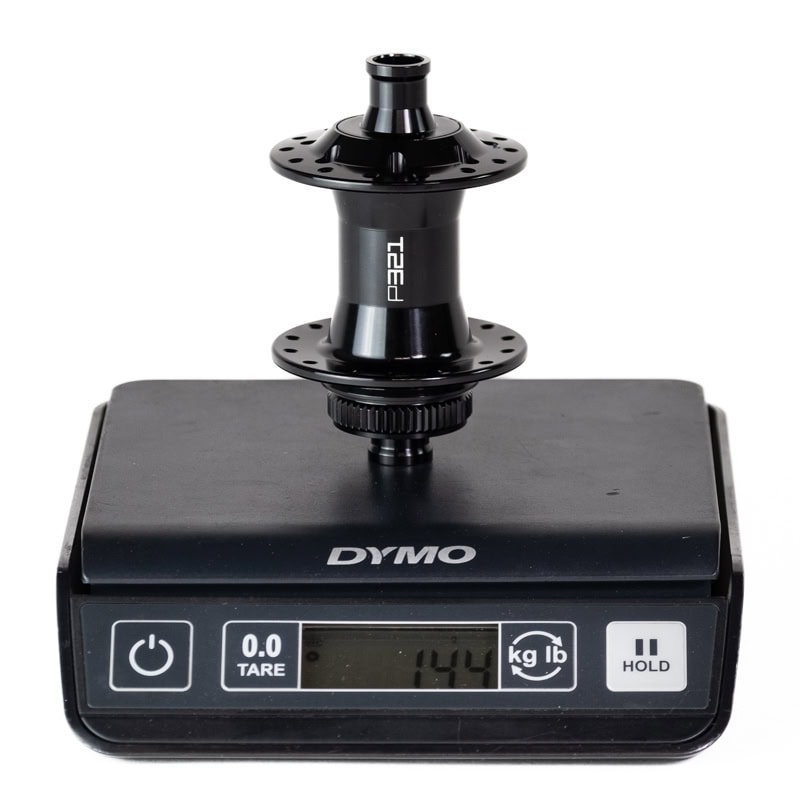

Project 321

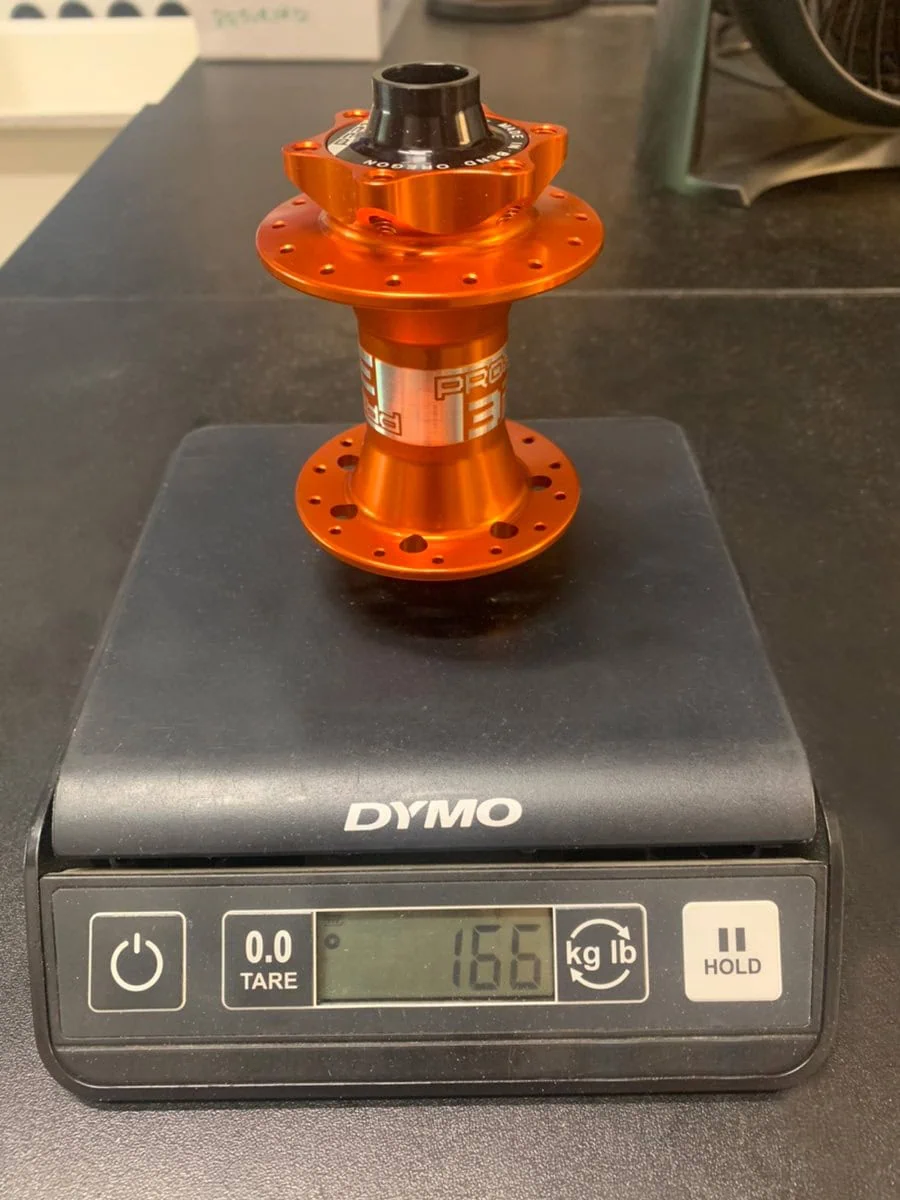

Project 321 Front Boost 110×15 = 166g

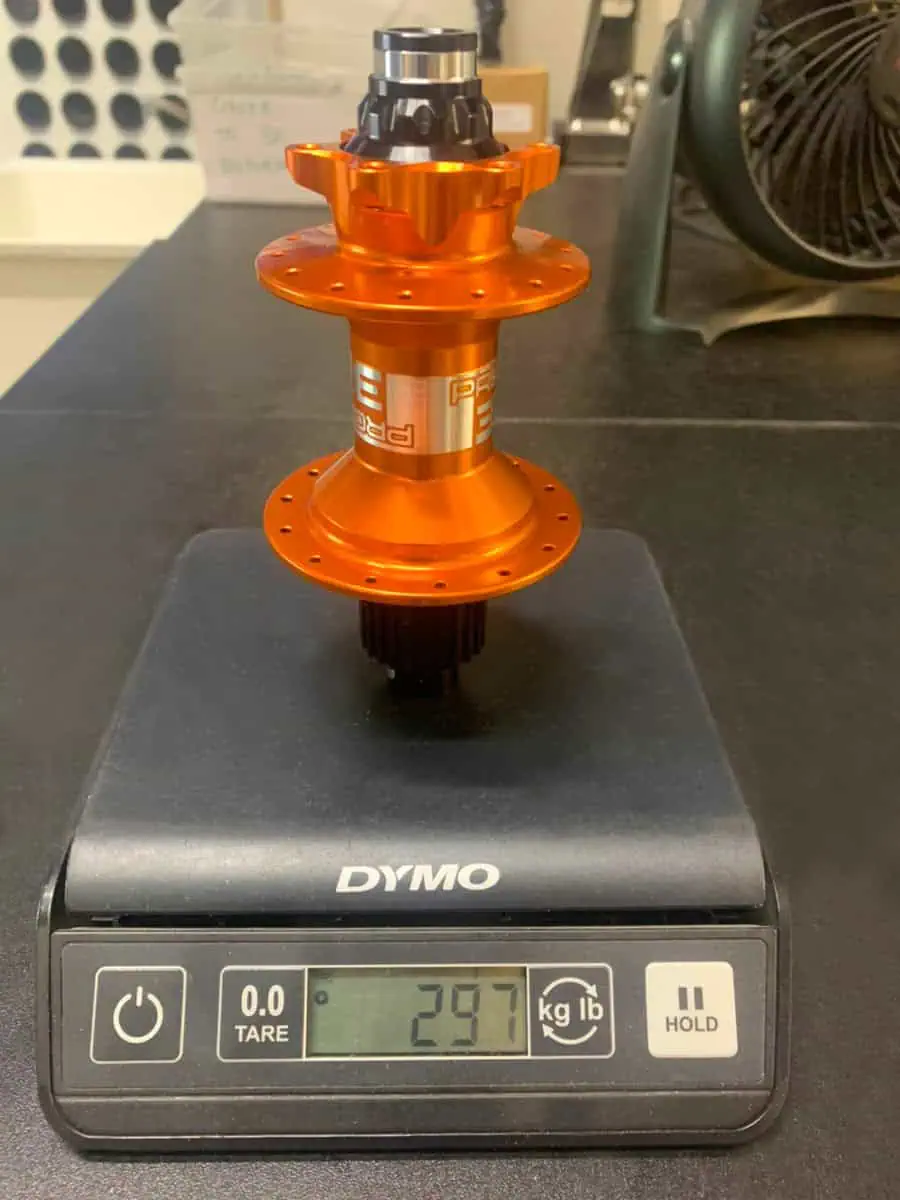

Project 321 Boost Rear 148×12 Microspline = 297g

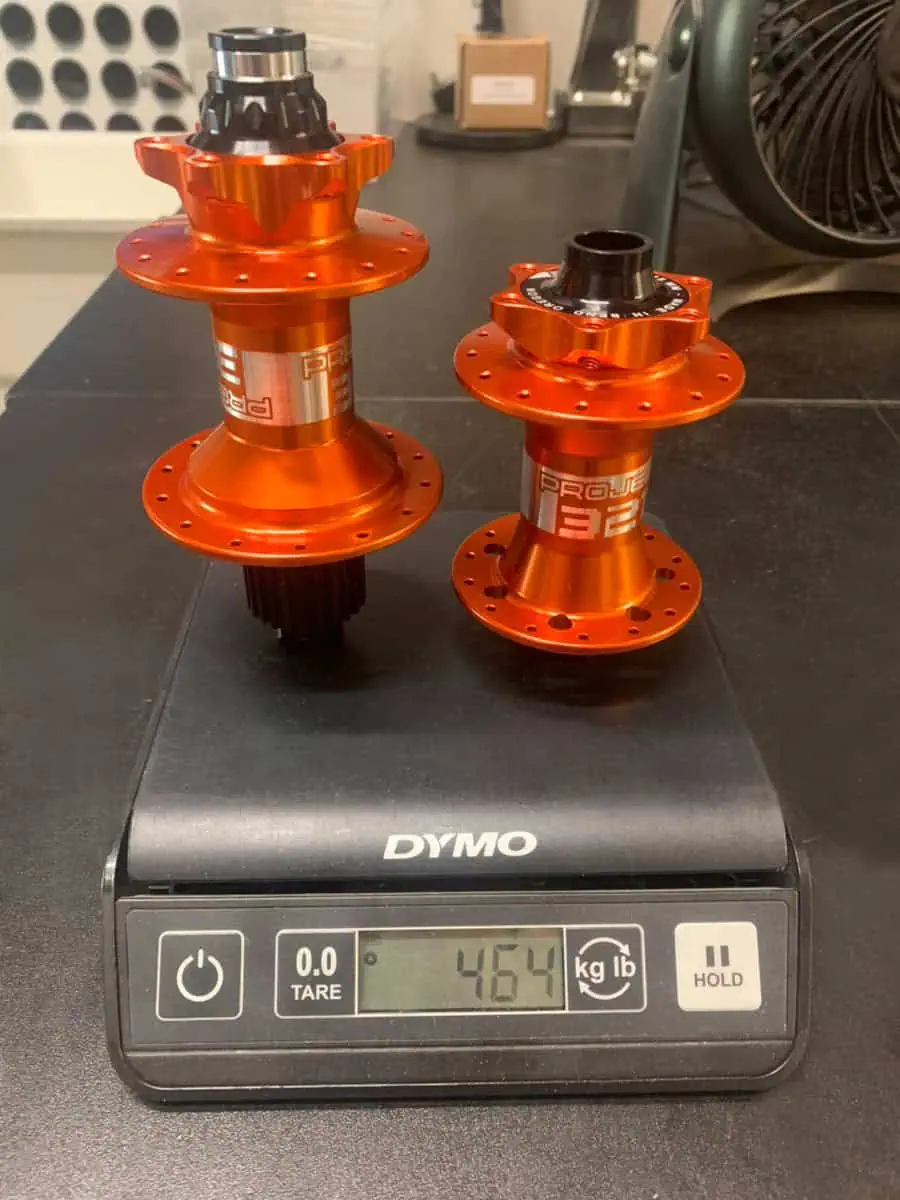

Project 321 110/148×12 Microspline = 464g

Project 321 100×15 = 173g

Project 321 142×12 XD = 278g

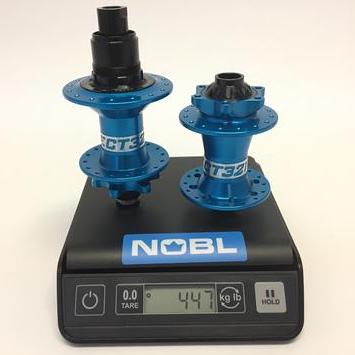

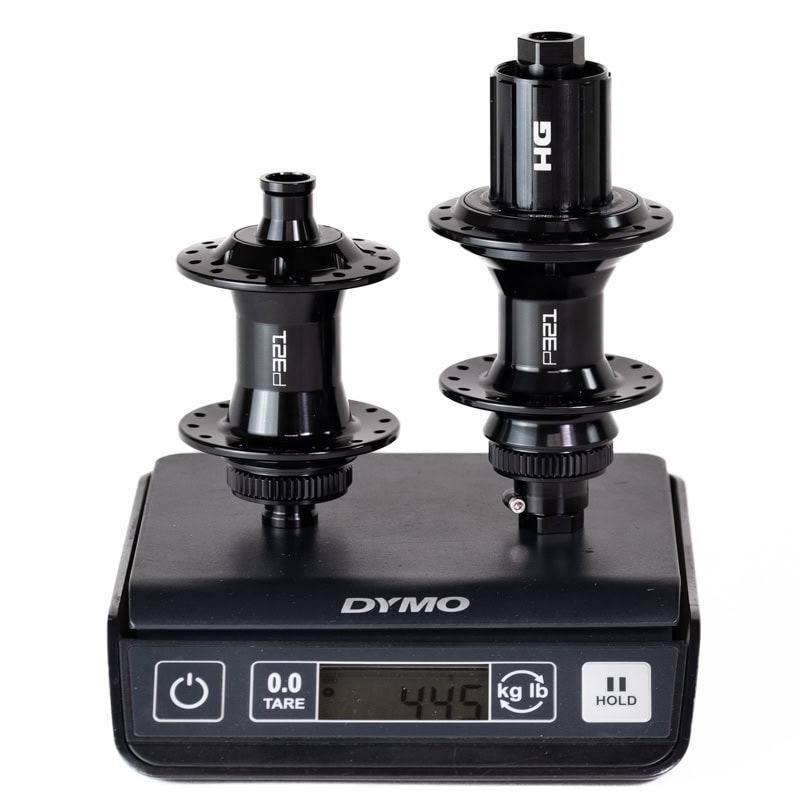

2017 Project321 Hubset actual weight 216 POE 142×12 XD, 100×15 = 447g

Profile

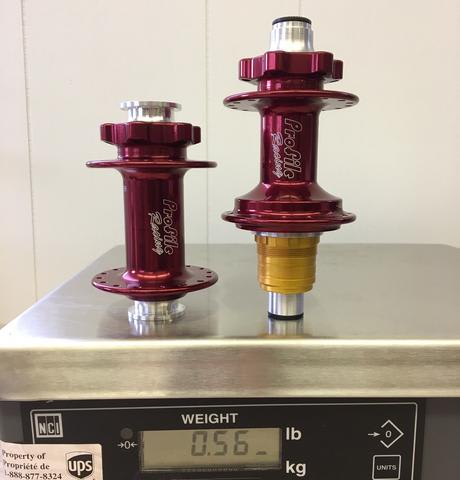

Profile Racing Boost hub actual weight 560g pair. 148×12, 110×15 Torque front
