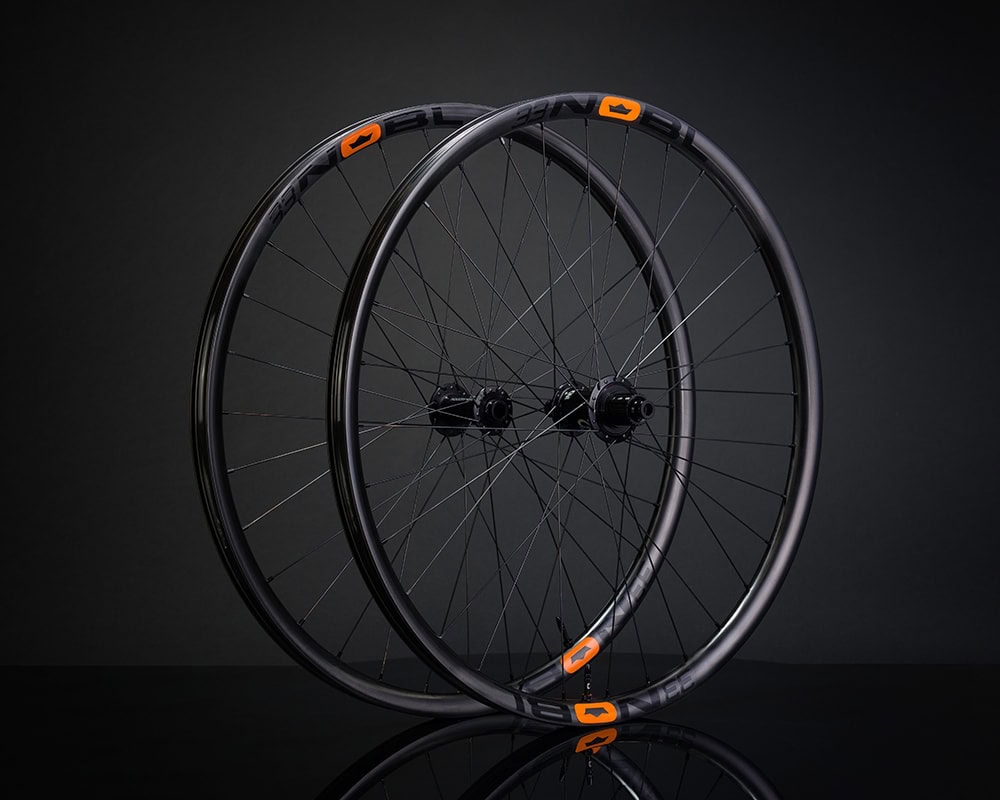

TR33

The ultimate chameleon, the TR33 is comfortable no matter the situation. Between the tape of an XC race or on technical trails, it offers precision and compliance. Features our 5-year warranty.

Wheelset Weight Calculators
Specs
Wheel Size: 27.5″, 29″, Tire Size: 2.2″-2.6″
Hole Count: 28h or 32h, Depth: 24mm,
Outer Width: 33mm, Inner Width: 27mm
Weight: 390g (27.5″), 405g (29″)
Wheelset Weight Calculators
Weight – 29″ 405g / 27.5″ 390g
Hole Count – 32h or 28h
Asymmetric Offset: 2mm

The TR33 is the jack of all trades. Right at home on aggressive XC bikes or trail rig, the TR33 was designed to be adaptable to a variety of trail conditions. Throw on some reinforced 2.5″ mid fat tires when it gets rough, or some light XC treads for race day and the TR33 will shine in both situations. The new revised low profile offers the perfect blend of compliance and stiffness, this means exceptional control when the terrain gets rough without rattling your hands off.

ERD Chart
NOBL ERD Chart

NOBL Bed To Bed ERDS

What rim model are you using?

TR32 – 29" ERD: 597.5

TR33 – 27.5" ERD: 552, 29" ERD 590

TR35 – 29" ERD: 597

TR36 – 27.5" ERD: 552, 29" ERD: 589

TR37 – 27.5" ERD: 559, 29" ERD: 597

TR38 – 27.5" ERD: 550, 29" ERD: 588

TR41 – 27.5" ERD: 550, 29" ERD: 587

HR35/CR35 – 700c ERD: 570

HR45/CR45 – 700c ERD: 550

For more ERD information refer to our Wheel Building Guide!





Intended Use

The TR33 has found itself on everything from XC race machines to all day adventure rides. Given that it comfortably supports tires 2.2″ up to 2.6″ it’s easy to see why the TR33 is so adaptable.

  • XC 80% 80%
  • Trail 90% 90%
  • Adventure 60% 60%

Handling Characteristics

Perfectly balanced, this rim offers the ‘Goldilocks’ of handling. It won’t be excessively stiff so that your hands and body feel rattled, but at the same time provides a noticeable improvement in handling over an equivalent alloy rim.

  • Impact Strength
  • Lateral Stiffness
  • Vertical Stiffness

Featured Upgrade: BERD

Upgrade your next set of TR33 wheels with Berd spokes, to turn them into a Pro marathon race wheelset. Berd spokes are made from an advanced polymer called Ultra High Molecular Weight Polyethylene (UHMWPE). UHMWPE has 12 times the strength-to-weight ratio of steel and floats on water. This means that you can enjoy substantial weight savings, when your wheelset is laced using these spokes. We find the ride quality is slightly less stiff than some conventional spokes, so road riders desiring a high amount of wheel stiffness may prefer steel spokes. Order custom colored Berd spokes by downloading our custom Berd form and emailing it to [email protected] the form is available in 28h and 32h.

*We modify all J-bend hub shells for Berd, however we do not modify straight pull. For modified hub shells, the hub shell warranty is void

To learn more about Berd visit our FAQ.

5 Year Warranty

Our legacy series of rims come with a 5 year warranty for the original owner. Warranty covers any damage that is deemed a result of a manufacturing defect. Warranty replacement covers 100% of the cost of the new rim.  Warranty does not cover shipping or labour charges. Our crash replacement  policy covers damage that is caused by casing jumps, hitting square edges at speed, backing over your wheel with your Tacoma, and of course a gnarly crash. The crash replacement cost is 50% of MSRP

For more details or to submit a claim, check out our warranty page HERE.



Technical Support

Your wheelset is a high precision component that requires regular upkeep and maintenance to perform at its absolute best. Fortunately we’ve compiled resources that will be sure to help you with this process.

Technical Support
