Below we’ve scaled and recorded the weights of several different hub brands, as weights listed online aren’t always accurate. For quick reference to a certain brand click one of these links: Industry Nine, DT Swiss, Chris King, Onyx, Hope, White Industries, Shimano XTR, Project 321, Profile. *Not all hubs listed are available on our site, for custom orders please contact us.

Industry Nine

1/1

Industry Nine 1-1 Centerlock 100x12mm Front  Actual Hub Weight  = 139g

Industry Nine 1-1 Centerlock 142x12mm Rear SRAM HG  Actual Hub Weight  = 283g

Industry Nine 1-1 Centerlock 142x12mm Rear XD  Actual Hub Weight  = 272

Industry Nine 101 Boost 6-Bolt 110x15mm Actual Front Hub Weight  = 166g

Industry Nine 101 Boost 6-Bolt Shimano HG 148×12 Actual Hub Weight  = 305g

Industry Nine 101 Boost Centerlock 110x15mm Actual Hub Weight  = 138g

Industry Nine 101 Boost Centerlock XD 148×12 Actual Hub Weight  = 273g



Industry Nine 101 Boost ISO MicroSpline 148×12 Actual Hub Weight  = 309g

Industry Nine 101 Boost 6-Bolt 148×12 XD Actual Hub Weight  = 292g

Torch

Industry Nine Torch Road 142×12 6-Bolt Actual Hub Weight  = 259g

Industry Nine Torch Road 100×12 6-Bolt Actual Hub Weight  = 121g

Industry Nine Torch Road 142×12 Centerlock Actual Hub Weight  = 249g

Industry Nine Torch Road 100×12 Centerlock Actual Hub Weight  = 110g

Hydra

Industry Nine Actual Hub Weight 148×12 6-Bolt Boost Shimano MicroSpline Freehub = 301g

Industry Nine Hydra Weight 148×12 Centerlock Sram XD Freehub = 272g

Industry Nine Hydra Centerlock Boost 110x15mm front hub actual weight = 138g



I9 Hydra 6-Bolt Actual Hub Weight 148×12 Sram XD Freehub = 288g

I9 Hydra Actual Hub Weight 148×12 Boost Shimano Alloy Freehub= 300g

i9 Hydra Torque Boost ISO hub 110x15mm scaled weight – 176g

i9 Hydra Fatbike hub Actual Hub Weight 197×12 6-bolt XD = 326g

Industry Nine Hydra Actual Hub Weight 110x15mm 6-Bolt Boost = 166g

Industry Nine Fatbike 6-Bolt Actual Hub Weight 150x15mm= 204g



Industry Nine Hubset 142×12 XD, 100×15 = 428g

Industry Nine 142×12 XD = 273g

Industry Nine 100×15 = 154g

Industry Nine 148×12 Boost HG = 293g

Industry Nine 142×12 HG = 289g

Industry Nine 157×12 super boost actual hub weight XD  = 292g

Industry Nine Steel XD Freehub weight: 137.6g complete with pawls, spacer, bearings

DT Swiss 180

DT Swiss 180 Centerlock 110x15mm MTB Front  Actual Hub Weight  = 96g

DT Swiss 180 Centerlock 148x12mm Boost MTB Microspline Rear  Actual Hub Weight  = 196g

DT Swiss 180 Centerlock 148x12mm Boost MTB XD Rear  Actual Hub Weight  = 187g

DT Swiss 180 Centerlock 100x12mm Road Front  Actual Hub Weight  = 93g

DT Swiss 180 Centerlock 142x12mm Rear  Actual Hub Weight  = 192g

DT Swiss 180 QR 100mm x 9mm Non-Disc Front  Actual Hub Weight  = 89g

DT Swiss 180 QR 130x9mm Non Disc Front  Actual Hub Weight  = 185g

DT Swiss 240

DT Swiss 240 EXP 6-Bolt 148 XD Actual Hub Weight = 227g

DT Swiss 240 EXP 6-Bolt Microspline 148mm Actual Hub Weight  = 235g

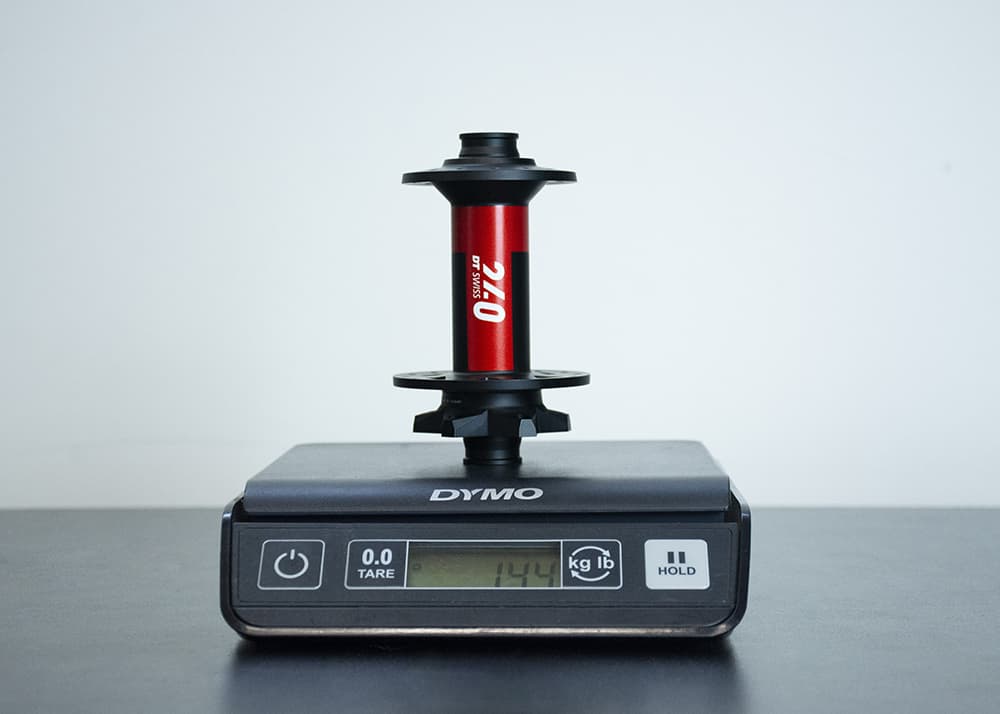

DT Swiss 240 EXP 6-Bolt Front 110mm Actual Hub Weight = 144g

DT Swiss 240 EXP Centerlock Front 110mm Actual Hub Weight = 111g

DT Swiss 240 EXP Centerlock Front 100mm Actual Hub Weight = 104g

DT Swiss 240 Centerlock Rear XD 142mm Actual Hub Weight = 198g

DT Swiss 240 EXP Centerlock XD 148mm Actual Hub Weight = 201g

DT Swiss 240 Centerlock Microspline 148mm Actual Hub Weight = 209g

DT Swiss 240 6-Bolt Actual Hub Weight 148×12 XD = 232g

DT Swiss 240 Centerlock Actual Hub Weight 148×12 XD 28h = 219g

DT Swiss 240 6-bolt Actual Front Hub Weight 110x15mm = 147g

DT Swiss 240 Centerlock Actual Front Hub Weight 110x15mm 28h = 129g

DT Swiss 350

DT Swiss 350 Hub, 6-Bolt, Front 100mm Actual Hub Weight = 173g

DT Swiss 350 Hub, 6-Bolt, Front 110mm Actual Hub Weight = 179g

DT Swiss 350 Hub, 6-Bolt, XD 142mm, Actual Hub Weights = 278g

DT Swiss 350 6-Bolt XD 148mm Actual Hub Weight = 274g

DT Swiss 350, 6-bolt, HG 148mm Actual Hub Weight = 301g

DT Swiss 350 6-Bolt, Microspline HG Actual Hub Weight = 292g

DT Swiss 350 Hub, 142×12 HG, 142×12, 6-bolt, Straight Pull = 275g

DT Swiss 350 Hubset, 142×12 XD, 100×15, 6-bolt, Straight Pull = 390g

DT Swiss 350 6-bolt front hub Actual  Weight 100x15mm = 171g

DT Swiss 350 Hub, 100×15, 6-bolt, Straight Pull = 138g

Chris King CL MTB 110X15 Front Hub Actual Hub Weight = 152g

Chris King CL MTB XD 148X12 Actual Hub Weight = 283g

Chris King CL MTB HG 148X12 Rear Hub Actual Hub Weight = 290g

Chris King CL MTB Microspline 148X12 Rear Actual Hub Weight = 283g

Chris King CL Road XDR 142X12 Rear Hub Actual Hub Weight = 257g

Chris King 110 Front Hub Actual Hub Weight = 184g

Chris King HG Steel 148mm Actual Hub Weight = 317g

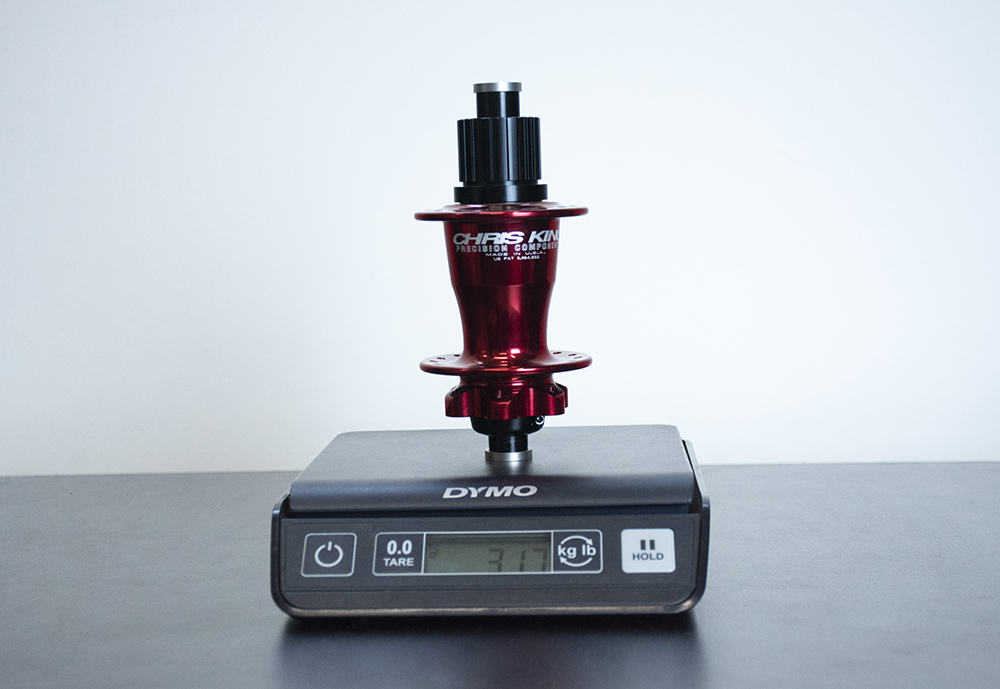

Chris King 148mm HG Rear Actual Hub Weight = 317g

Chris King 148mm XD Steel Actual Hub Weight = 366g

Chris King Road CL Front 100mm Actual Hub Weight = 144g

Chris King Road CL HG 142mm Rear Actual Hub Weight = 263g

Chris King Actual Hub Weight 142×12 XD Steel Freehub = 352g

Chris King Actual Hub Weight 110x20mm = 213g

Onyx Classic 6-Bolt 110x15mm Front  Actual Hub Weight  = 221g

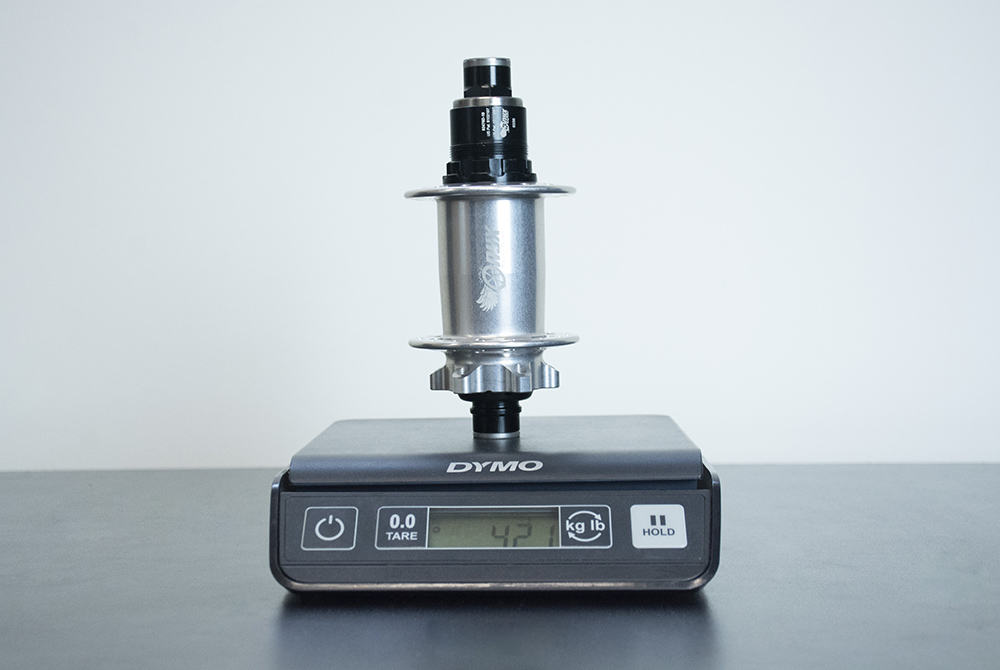

Onyx Classic 6-Bolt 148mm Rear XD Actual Hub Weight  = 421g

Onyx Classic Rear 148mm Steel HG Actual Hub Weight = 505g

Onyx Vesper 6-Bolt 110x15mm Front  Actual Hub Weight  = 166g

Onyx Vesper XDR 6-Bolt 148x12mm Rear Actual Hub Weight  = 390g

Onyx Vesper Shimano HG 6-Bolt 148x12mm Rear Actual Hub Weight  = 401g

Onyx Vesper XDR Centerlock 148x12mm  Rear Actual Hub Weight  = 358g

Onyx Vesper Centerlock 110x15mm Front Actual Hub Weight  = 144g

Onyx 100×15 = 213g

Onyx Hubset 142×12 XD, 100×15 = 675g

Onyx 142×12 XD = 461g

Hope Pro 4 Front 110mm = 194g

Hope Pro 4 Rear XD 148mm = 305g

Hope Pro 2 EVO Hubset 142×12 XD, 100×15 = 474g

Hope Pro 2 EVO 142×12 XD = 294g

Hope Pro 2 EVO 100×15 = 179g

Hope Pro 2 EVO 142×12 HG = 307g

White Industries CLD Centerlock 100x12mm Front  Actual Hub Weight  = 137g

White Industries CLD Centerlock 142×12 mm XD Rear  Actual Hub Weight  = 280g

Shimano XTR Centerlock Hubset, 142×12 HG, 100×15, = 404g

Shimano XTR Centerlock Hub actual weight 100×15 = 135g

Shimano XTR Centerlock Hub actual weight 142×12 = 269g

Project 321 Front Boost 110×15 = 166g

Project 321 Boost Rear 148×12 Microspline = 297g

Project 321 110/148×12 Microspline = 464g

Project 321 100×15 = 173g

Project 321 142×12 XD = 278g

Project 321 Hubset, 142×12 XD, 100×15 = 451g

2017 Project321 Hubset actual weight 216 POE 142×12 XD, 100×15 = 447g

Profile

Profile Racing Boost hub actual weight 560g pair. 148×12, 110×15 Torque front
